Fiber Optic Termination Box Installation Guide: Indoor vs Outdoor
⚡ Key Takeaways
- Understanding the critical technical specifications for Termination Box Installation.
- Best practices for installation and maintenance in 2026 networks.
- How Telhua's Fiber Termination Box solutions meet these rigorous standards.
In the rapidly evolving world of fiber optics, mastering Termination Box Installation is essential for network engineers. This comprehensive guide breaks down everything you need to know to ensure optimal network performance and longevity.
What is Termination Box Installation?
At its core, Termination Box Installation refers to a critical aspect of modern telecommunications infrastructure. Proper implementation ensures low signal loss, high bandwidth capacity, and future-proof scalability. For operators deploying Fiber Termination Box, ignoring this factor can lead to costly network failures.
Technical Best Practices for 2026
When working with Fiber Termination Box, adherence to international standards (IEC/ITU-T) is non-negotiable. Here are the top 3 considerations:
1. Environmental Protection
Ensure all components are rated for the specific deployment environment (e.g., IP65 for outdoor). UV resistance is critical.
2. Optical Performance
Maintain insertion loss below 0.3dB per connection and return loss > 50dB (APC) to guarantee signal integrity.
3. Scalability
Design for Day 2 growth. Use high-density solutions that allow for easy capacity expansion without service interruption.
Need a Reliable Manufacturer for Your 2026 Projects?
Telhua offers factory-direct pricing, 100% IEC compliance, and rapid 3-week production lead times. Don't risk project delays with unverified suppliers.
Step-by-Step Implementation Guide
Follow this proven workflow to ensure a successful deployment:
- Site Survey: Accurately measure and assess the physical constraints of the installation site.
- Component Selection: Choose high-quality Fiber Termination Box from reputable manufacturers like Telhua.
- Installation: Follow the manufacturer's torque and bending radius guidelines strictly.
- Testing & Validation: Use an OTDR and Power Meter to verify link budgets before sign-off.
Summary
Mastering Termination Box Installation differentiates top-tier networks from the rest. By partnering with Telhua, you gain access to engineering expertise and premium Fiber Termination Box products designed for the future.
Extended Best Practices & Implementation

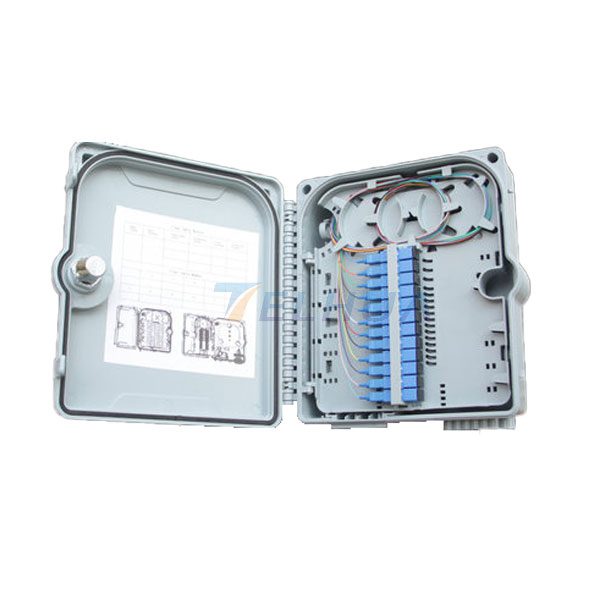

The Indoor Fiber Termination Box (FTB), also known as an optical termination box (OTB), is a small size fiber management product. It is widely adopted in FTTx cabling for fiber and cables.
Indoor Fiber Termination Boxes are excellent for providing security to fiber optic pigtails and splices and allowing distribution. Cablix Termination Boxes are mainly used in industrial equipment rooms and telecommunications network.
The wall-mount termination box is designed for either pre-connectorized cables, field connector installation or flexible cable splicing. They offer an ideal solution for the construction of entry terminals, telecommunication cabinets, cross connection, computer rooms and other controlled environments.
In terms of installation environment, there are indoor and outdoor FTBs. Indoor cables act as the transition point between the rising cable and the horizontal cable, thus providing operators with much more cable management flexibility. In addition, FTB interior allows space for extra cable and fiber termination, used as fiber splicing.
The outdoor one is environmentally sealed to distribute the fibers for FTTX networks. They are also designed for fiber splicing, termination, and cable management.
Fiber Terminal Box Features
It contains the covering, the internal structure (support structure, fiber disc system, fixation device) and protective elements of the optical fiber. The prominent advantages of fiber termination box are in the efficiency of the solder cable fixation and its protective role in the fiber optic machinery.
An insulation between metallic cable components and the terminal box in a fiber terminal box is always required, providing a space to store cable and the rest of the fiber. In addition, they also facilitate installation on various occasions as it is easy to access, saving timeand costs.
Applications and uses
It is used in telephone systems, agricultural telephone network system, image and data transmission system, CATV cable television, indoor cable through access connection and power branch.
Fiber terminal boxes are available for distribution and connection termination for various types of fiber optic systems, especially for Mini-network terminal distribution, in which optical cables, patch centers and pigtails are connected. Besides that, it can be applied to splice flexible fiber cable, protect fiber optic junctions, and share connectivity to individual clients.
