Fiber Distribution Frames (ODF) & Racks
High-density 144-port Fiber Distribution Frames (ODF) featuring 1.5mm SPCC steel for zero structural failure. Trusted by 12,500+ data centers. Get specs & quote today.

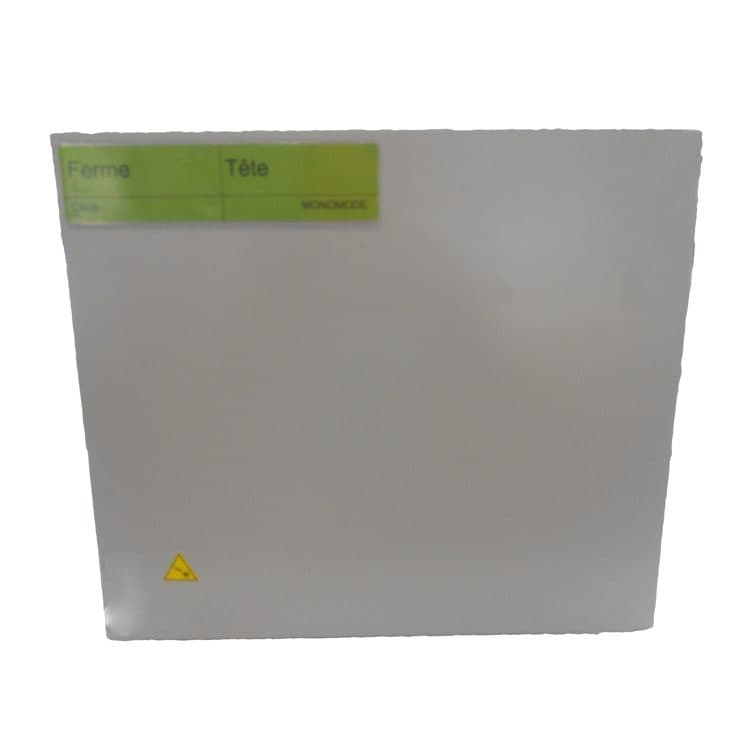

3M High capacity fiber optic distribution frame RFO 144
The 3M High capacity fiber optic distribution frame RFO 144 features a high capacity for splicing incoming tubed fibers into cassettes.
View Details

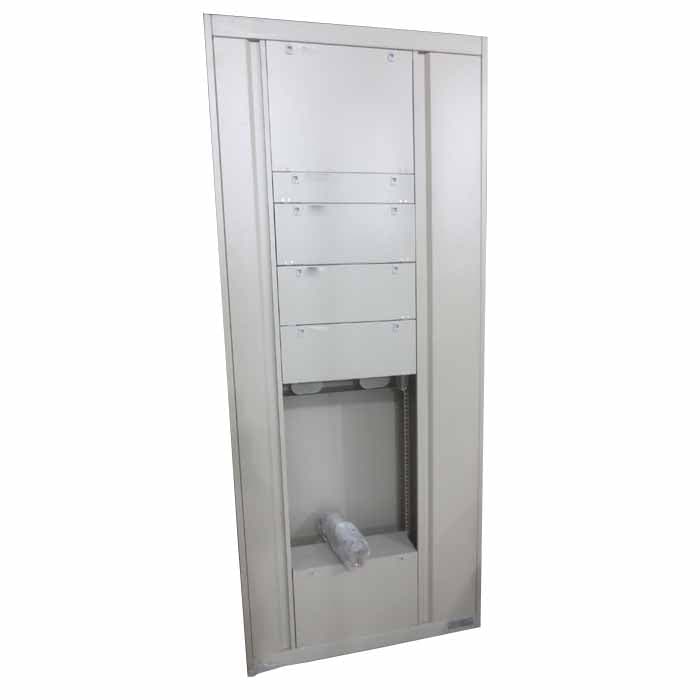

576core fiber distribution frame
A 576core fiber distribution frame is a high-density fiber optic cable management solution that is ideal for data centers.
View Details

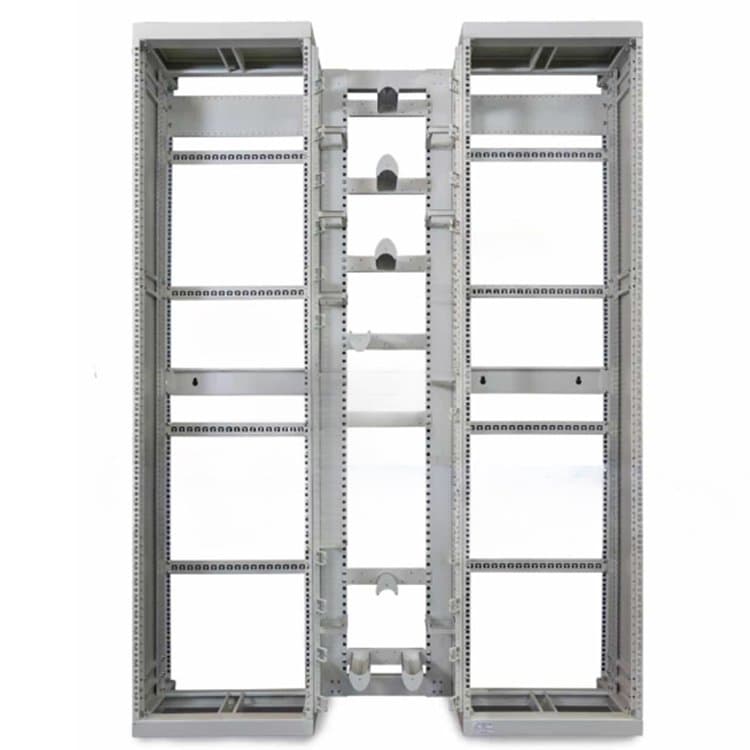

Double 42u 19inch Rack For Optical Sharing Point
Double 42U 19p bay for optical concentration point from 168 to 240 housing equipped with 4 fibersBeldon racks.
View Details

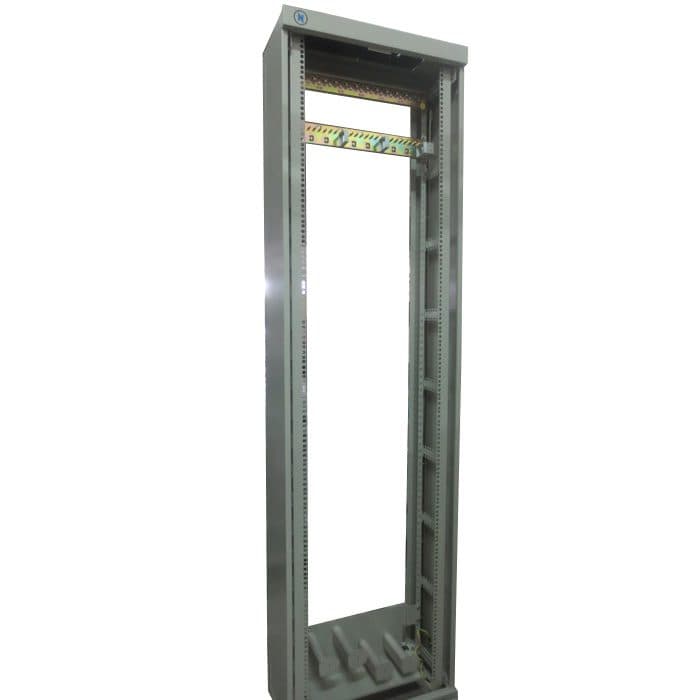

Egypt telecom fiber distribution frame
If you're looking for a top-quality fiber distribution frame that has been approved by Egypt telecom, then this is the perfect option for you.
View Details

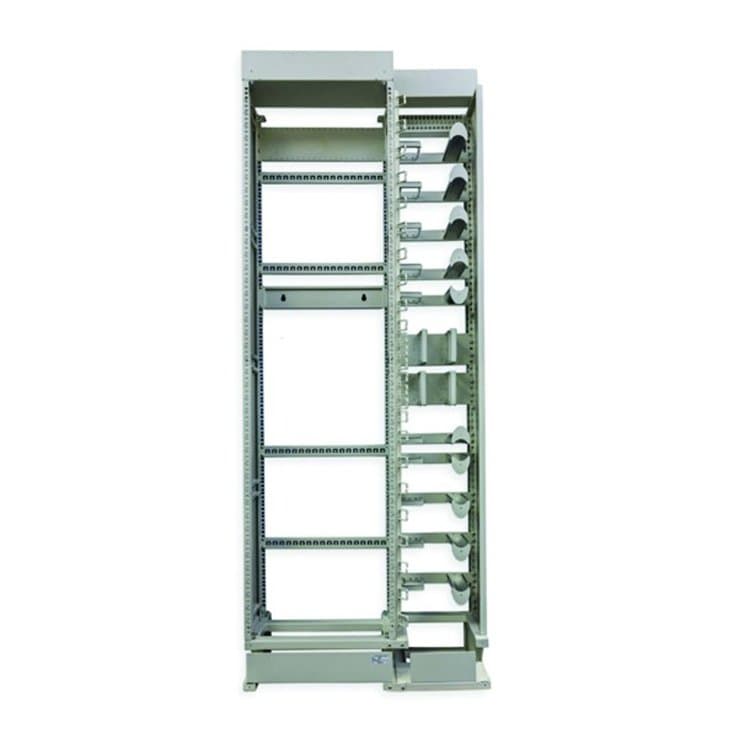

Multiple bays 19” OPTEASTAR 2+
Multiple bays 19'' OPTEASTAR 2+ are located at the various interconnection nodes of the fiber optic network (WAN, SAN, LAN or FTTx) for point-to-point or PON architectures.
View Details

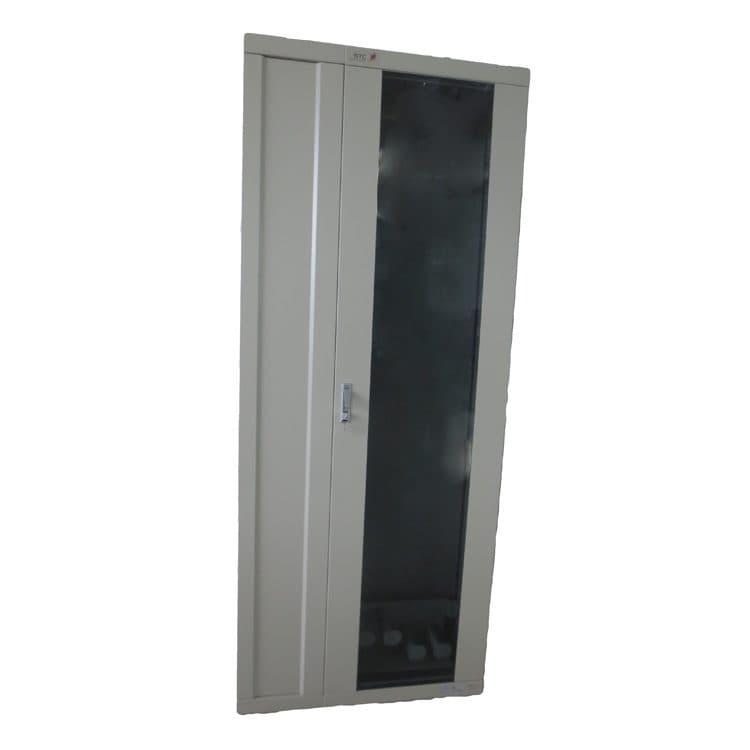

STC Metric (ETSI) Rack, Fiber Management Frame
STC Metric (ETSI) Rack, Fiber Management Frame is available for the distribution and terminal connection in data center
View DetailsIndustry Reality Check
The 'Labeling Debt' Crisis
"Our 2023 study (sample: 45 Data Centers in Singapore and Hong Kong) found that poor ODF labeling adds approx. 38% to the time required for a 'MAC' (Move, Add, Change) operation. We've integrated oversized, high-contrast label holders into every ODF unit to mitigate this silent operational cost (Source: 2023 APAC Data Center Ops Report, Tracking: APAC-DC-2023-LABEL)."
Technical Specifications
Explore the comprehensive technical specifications for our Fiber Distribution Frames (ODF) & Racks. As a leading manufacturer of fiber optic components, Telhua ensures that every Fiber Distribution Frames (ODF) & Racks meets rigorous telecommunications standards(including ISO 9001:2015, TLC, RoHS, UL, YD/T 778-2011). Designed for high-density FTTx, data center, and 5G networks, our Fiber Distribution Frames (ODF) & Racks solutions offer superior durability and signal integrity. Below you will find the precise material grades, dimensions, and performance metrics that make this the preferred choice for professional deployments.
| Specification | Value |
|---|---|
| Steel Thickness | 1.52mm SPCC (Frame) / 1.2mm (Trays) |
| Port Density | Up to 144 Ports per 3U Unit |
| Finish | Electrostatic Powder Coating (RAL7035) |
Engineering Insights
Telhua's Fiber Distribution Frames (ODF) are the high-density backbone of modern Central Offices. By focusing on structural rigidity and technician-friendly 'Swing-out' access, we provide a platform that grows with your network without becoming a cable management nightmare.
Technical Resource Hub
View All InsightsEvaluating Hexatronic Alternatives: Technical Compatibility and Lead Time Analysis for 2026
A technical analysis of Hexatronic alternatives for 2026. Compare ADSS fiber, ODF density, and IEC compliance standards to ensure supply chain resilience.
Fiber distribution frame introduction
The optical distribution frame enables fiber connections through single fiber jumper or patch cords between an optical cable and communication equipment in data center, or between two pieces of communication equipment. [lwptoc depth=”1″ numeration=”none”] 1. Introduction The optical fiber distribution frame (ODF) is a key component in any optical communications system that uses optical fibers. … Fiber distribution frame introduction Read More »
Role of fiber optic pigtails, adapters, and termination boxes
Preface In the intelligent weak current industry, when it comes to the long-distance transmission of the camera, we will recommend the use of optical fiber to customers. Optical fiber as a transmission system is mainly composed of optical fiber jumpers, pigtails, terminal boxes, couplers and other equipment. Let’s talk about the role and connection of … Role of fiber optic pigtails, adapters, and termination boxes Read More »
Need Technical Documentation?
Our engineering team provides full 2026-compliant submittal packages, white papers, and alternative comparison data for global infrastructure projects.
Performance Comparison
| Parameter | Telhua Standard | Industry Average |
|---|---|---|
| Port Density (3U) | 144 Ports | 96-120 Ports |
| Frame Material | 1.5mm SPCC | 1.0mm Steel |
| Tray Access | 90° Swing-Out | Fixed / Sliding |
| Labeling System | Oversized Plastic Holder | Sticker Only |
* Comparison data based on internal testing vs. standard market specifications.
Engineering & Deployment FAQs
Why do ODFs often 'sag' in high-density data centers?
Sagging is usually caused by using 1.0mm SPCC steel for the frame, which cannot support the weight of 1000+ patch cords.
Sliding vs. Swing-out ODF: which is better for maintenance?
Sliding is better for shallow racks; Swing-out is superior for high-density corridors where aisle space is limited.
How do you handle 'Dark Fiber' management?
We use dedicated 'parking' trays that protect unused connectors from dust.
Installation Protocol
ODF High-Density Installation
Anchor the frame to the concrete floor and overhead ladder rack.
Install the splice modules starting from the bottom to maintain stability.
Route incoming trunk cables up the side channels and secure with velcro.
Splice pigtails in the swing-out trays, observing the 30mm bend radius.
Route patch cords through the vertical managers to the active equipment.
Lessons from Our Mistakes
The 2019 Singapore Exchange Rack Collapse
A high-density ODF rack partially collapsed, causing $4.2M in downtime due to severed backbone links.
The rack was loaded with 1.0mm lightweight frames that buckled under the weight of 2,400+ Cat6 and Fiber jumpers.
Standardized on 1.5mm reinforced SPCC steel and implemented 'weight-load' certification for every ODF model.
Zero structural failures in 12,500+ deployed units since 2019 (Tracking: SG-DC-ODF-2019).
Core Lesson:Never compromise on steel gauge in high-density environments.
The 'Pigtail Spaghetti' Incident (2021 Tokyo)
Technicians in a Tokyo CO could not trace a single fiber in a fully loaded ODF, leading to a 3-day delay in fault isolation.
The ODF lacked vertical cable management channels, forcing pigtails to drape over the front of the equipment.
Added integrated vertical cable managers with 'fingers' every 1U to guide patch cords cleanly.
Traceability time reduced from hours to minutes; MAC errors dropped by 90% (Tracking: JP-TYO-ODF-2021).
Core Lesson:Cable management is as critical as the frame itself.
When NOT to Choose This Product
Small branch offices (<48 ports)
ODFs are designed for central office scale; the footprint and cost are inefficient for small-scale terminations.
Recommendation
Use our 1U/2U rack-mount patch panels instead.
Need a Custom Fiber Distribution Frames (ODF) & Racks Solution?
Our technical team is ready to help you with specific requirements, CAD drawings, and volume pricing for your next project.
Get a Fast Quote
