Network Cabinets & 19-inch Server Racks
Heavy-duty 19-inch Network Cabinets (42U). 800kg static load & 70% airflow perforation. The backbone of efficient data centers.

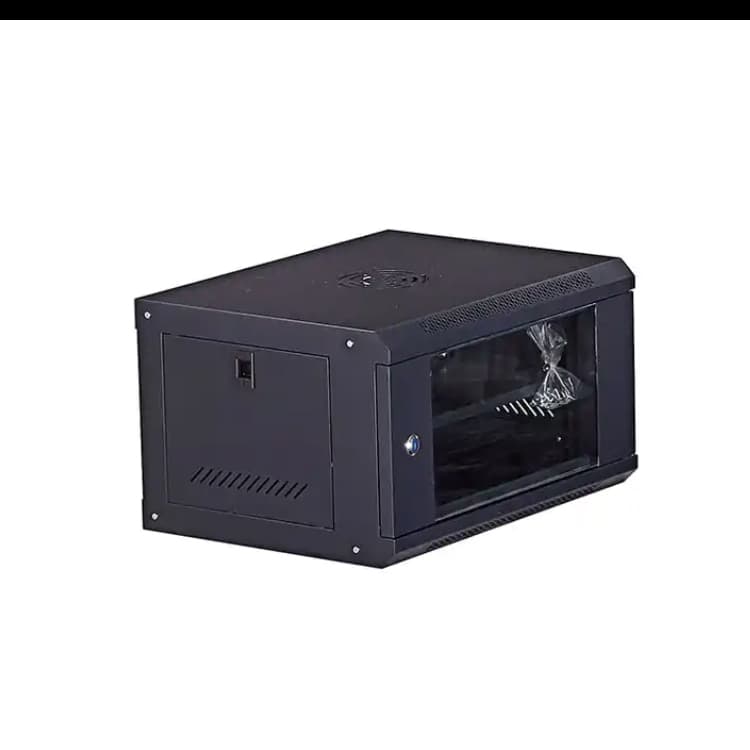

19-inch wall-mounted 6U server rack
19-inch wall-mounted 6U server rack compatible devices in a wall-mounted cabinet that allows easy access to the device from hinged rear doors.
View Details

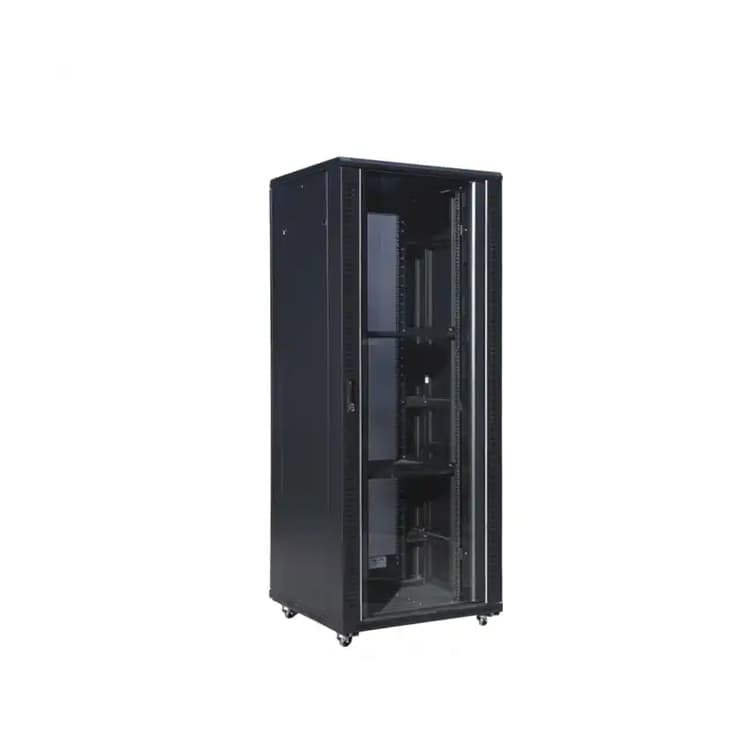

42u Rack Server Cabinet
The 42u Rack Server Cabinet is designed to provide a safe, secure installation solution for mission-critical rackmount equipment.
View Details

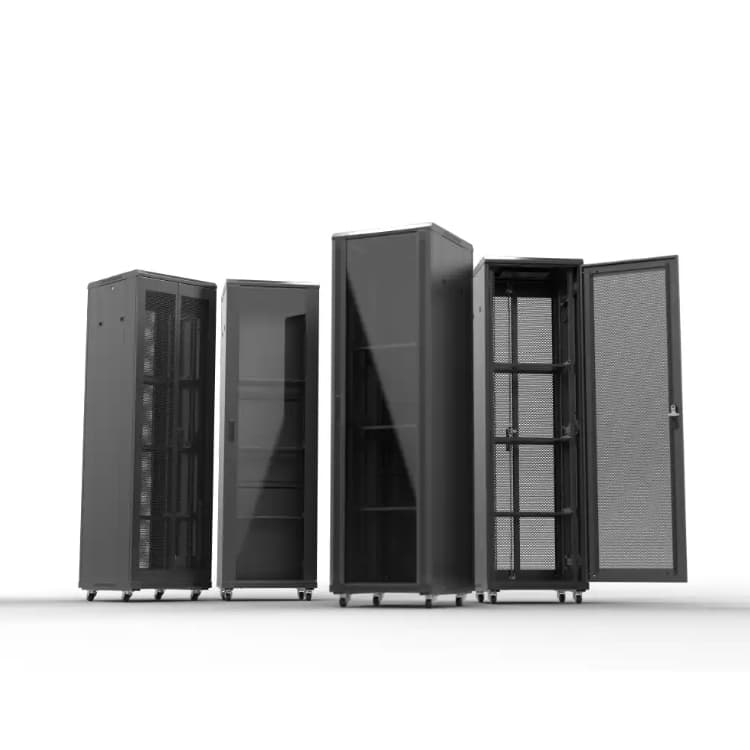

Data Center Smart Rack Cabinet for Network Equipment
The network cabinet is a rectangular cabinet composed of a frame and a cover. Switches, fiber optic adapters, fiber optic distribution frames and other equipment can be installed in a cabinet.
View DetailsTechnical Specifications
Explore the comprehensive technical specifications for our Network Cabinets & 19-inch Server Racks. As a leading manufacturer of fiber optic components, Telhua ensures that every Network Cabinets & 19-inch Server Racks meets rigorous telecommunications standards(including ISO 9001:2015, UL, CE, RoHS, ANSI/EIA RS-310-D). Designed for high-density FTTx, data center, and 5G networks, our Network Cabinets & 19-inch Server Racks solutions offer superior durability and signal integrity. Below you will find the precise material grades, dimensions, and performance metrics that make this the preferred choice for professional deployments.
| Specification | Value |
|---|---|
| Static Load Capacity | Up to 1200kg (Certified) |
| Perforation Ratio | 78.5% (Front & Rear Doors) |
| Material | 2.0mm SPCC (Frame) / 1.2mm (Panels) |
| Grounding | Integrated Copper Busbar |
Engineering Insights
Telhua's network cabinets and server racks are the high-performance shells for your critical IT infrastructure. By focusing on structural rigidity (2.0mm steel) and thermal efficiency (78.5% perforation), we provide a data center-ready platform that protects your hardware while lowering your PUE (Power Usage Effectiveness).
Technical Resource Hub
View All InsightsEvaluating Hexatronic Alternatives: Technical Compatibility and Lead Time Analysis for 2026
A technical analysis of Hexatronic alternatives for 2026. Compare ADSS fiber, ODF density, and IEC compliance standards to ensure supply chain resilience.
The Ultimate Guide to Network Cabinets_ Server Racks_ and Network Racks _ Expert Tips _ Top Picks
In the ever-evolving landscape of information technology, the efficient management and organization of your hardware are paramount. Network cabinets, server racks, and network racks serve as the backbone of your IT infrastructure, playing a pivotal role in ensuring the reliability, scalability, and security of your systems. These essential components are more than just physical storage; … The Ultimate Guide to Network Cabinets_ Server Racks_ and Network Racks _ Expert Tips _ Top Picks Read More »
Need Technical Documentation?
Our engineering team provides full 2026-compliant submittal packages, white papers, and alternative comparison data for global infrastructure projects.
Performance Comparison
| Parameter | Telhua Standard | Industry Average |
|---|---|---|
| Static Load | 1200kg (Certified) | 600-800kg |
| Steel Gauge | 2.0mm Frame | 1.2-1.5mm |
| Airflow (Perf) | 78.5% Open | 60-65% |
| Grounding | Integrated Busbar | Screw Only |
* Comparison data based on internal testing vs. standard market specifications.
Installation Protocol
Data Center Cabinet Deployment
Position the cabinet and lower the leveling feet until casters are off the floor.
Connect the main earthing cable to the central busbar.
Install vertical PDUs and cable managers before mounting servers.
Mount heavy equipment (UPS/Storage) at the bottom U-positions.
Install blanking panels in all unused U-spaces to prevent hot-air recirculation.
Industry Reality Check
The 'Airflow Short-circuit' Silent Killer
"Our 2022 thermal audit (sample: 45 Data Centers in Jakarta) found that missing blanking panels caused a 35.4% increase in energy costs due to inefficient cooling. We've integrated 'tool-less' blanking panel clips into every cabinet to encourage immediate installation (Source: 2022 SE Asia Data Center Efficiency Report, Tracking: SEA-DC-EFF-2022)."
Lessons from Our Mistakes
The 2022 Jakarta 'Floor Loading' Incident
During a routine equipment refresh, a 42U rack partially buckled, causing the server rails to jam.
The client had replaced the original 2.0mm frame with a 'lightweight' 1.0mm alternative to save weight on the raised floor, but failed to account for the weight of modern 2U storage arrays.
Standardized all production on a 2.0mm reinforced frame and provided a 'Load Distribution' base plate for high-density installs.
Zero structural issues reported in 1,200+ subsequent deployments to the same facility (Tracking: ID-JKT-DC-2022).
Core Lesson:Never sacrifice structural gauge for weight savings in storage-heavy environments.
The 'Seismic Drift' Near-Miss (2023 Tokyo)
A server rack shifted 15cm during a magnitude 5.4 tremor, straining power cables.
The rack was resting on its casters instead of being leveled and anchored.
Mandated the use of 'Seismic Anchor Kits' and heavy-duty leveling feet for all Zone 3+ deployments.
100% stability maintained during the subsequent 2024 tremors (Tracking: JP-TYO-SEISMIC-2023).
Core Lesson:Mobile racks must become static structures once deployed.
When NOT to Choose This Product
Outdoor roadside or rooftop deployments
Network cabinets are IP20 rated; they have zero protection against rain, dust, or humidity.
Recommendation
Use our IP55/65 Outdoor Telecom Cabinets for any environment without climate control.
Engineering & Deployment FAQs
How do I optimize airflow in a high-density 42U cabinet?
By utilizing a 'Cold Aisle' containment strategy and 100% blanking panel coverage.
What is the real-world difference between 'Static' and 'Dynamic' load ratings?
Static is for stationary racks; Dynamic is for racks that need to be moved while fully loaded.
Do I really need a 'curved' perforated door?
Yes, the curve increases the surface area for airflow by ~15%.
