Pre-terminated Fiber Optic Boxes & Fast Deployment
Plug-and-play Pre-terminated Fiber Boxes. Reduce FTTx installation time by 70%. Factory-tested reliability. Start your project faster.

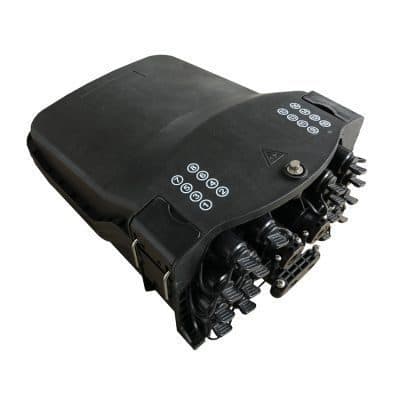

16 Cores Huawei Pre-connector FTTH Distribution Box
The 16 Cores Huawei Pre-connector FTTH Distribution Box adopts the FastConnect technology to help customers deploy...
View Details

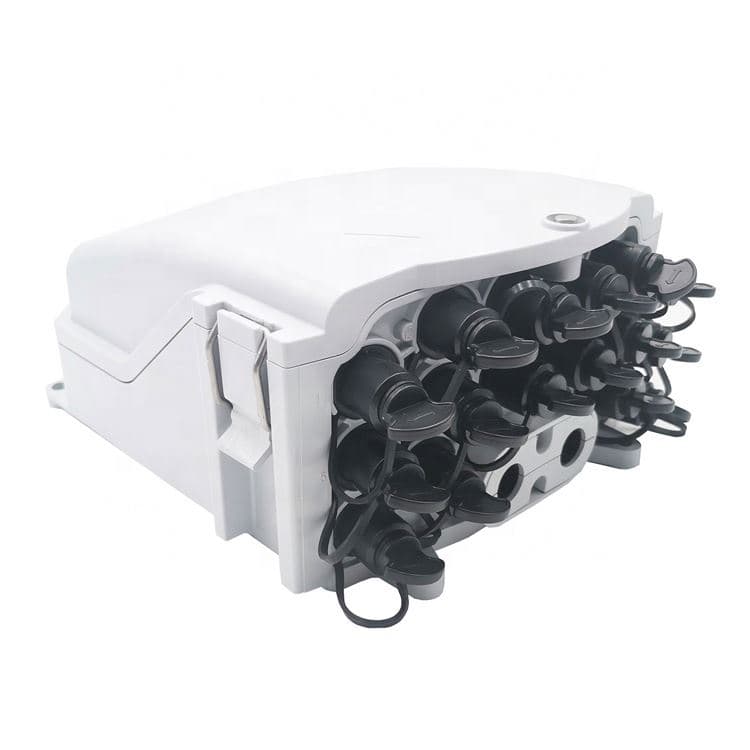

16 Cores Outdoor Fiber Optic Distribution Box
16 Cores Outdoor Fiber Optic Distribution Box is a box that constitutes optical point between distribution networks and dispersion network.
View Details

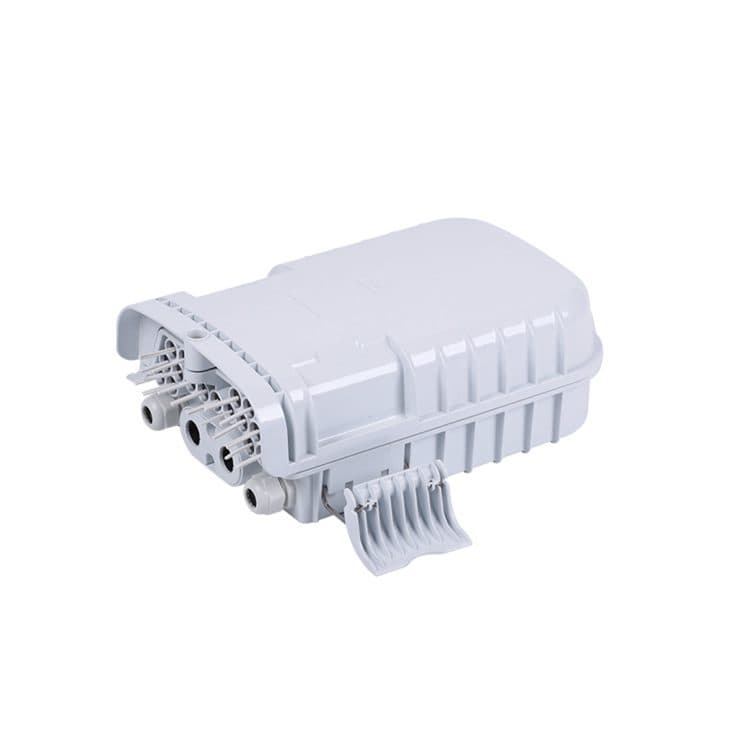

16 ports outdoor optical distribution box
16 ports outdoor optical distribution box is a very compact high-capacity splice and connection box used in FTTH networks inside buildings.
View Details

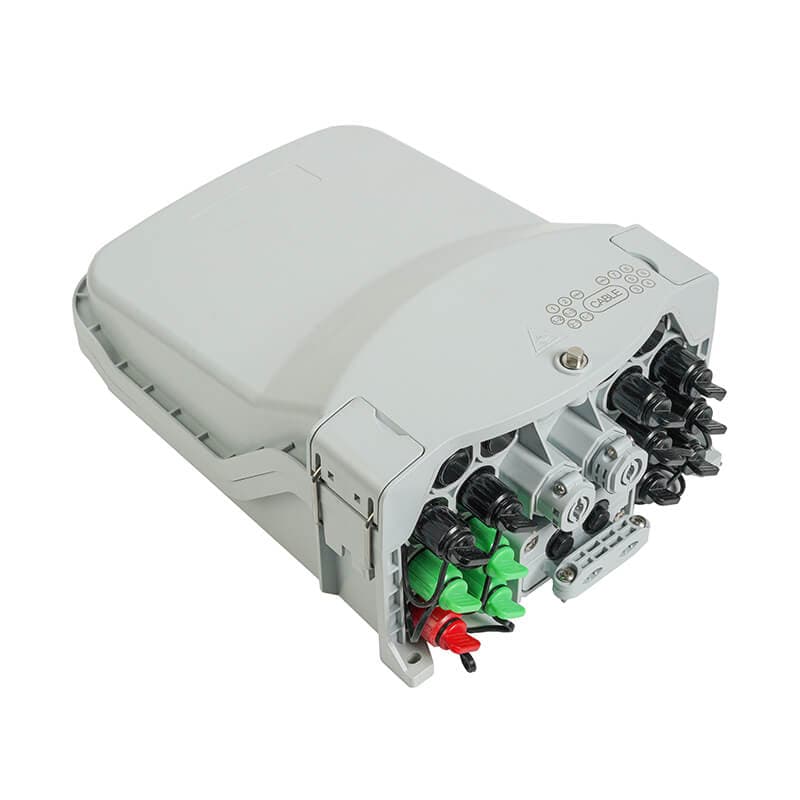

16SX Fiber Optic Distribution Box
16SX Fiber Optic Distribution Box serves as a crucial connection point between the feeder cable and drop cable in an FTTx communication network system.
View Details

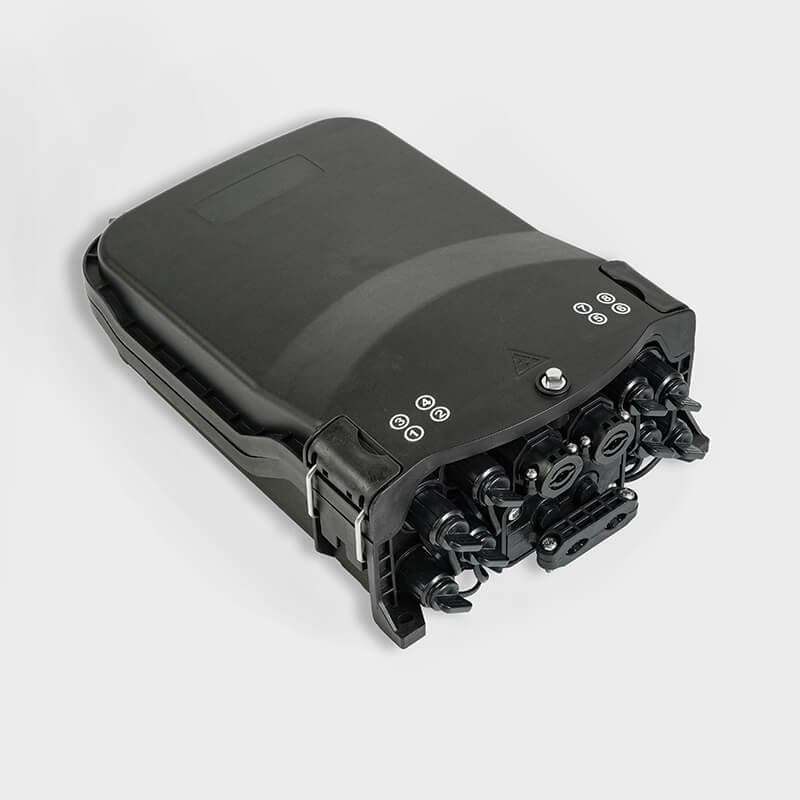

8SX Fiber Optic Distribution Box
8SX Fiber Optic Distribution Box serves as a connection point where the feeder cable and drop cable come together in an FTTx communication network system.
View Details

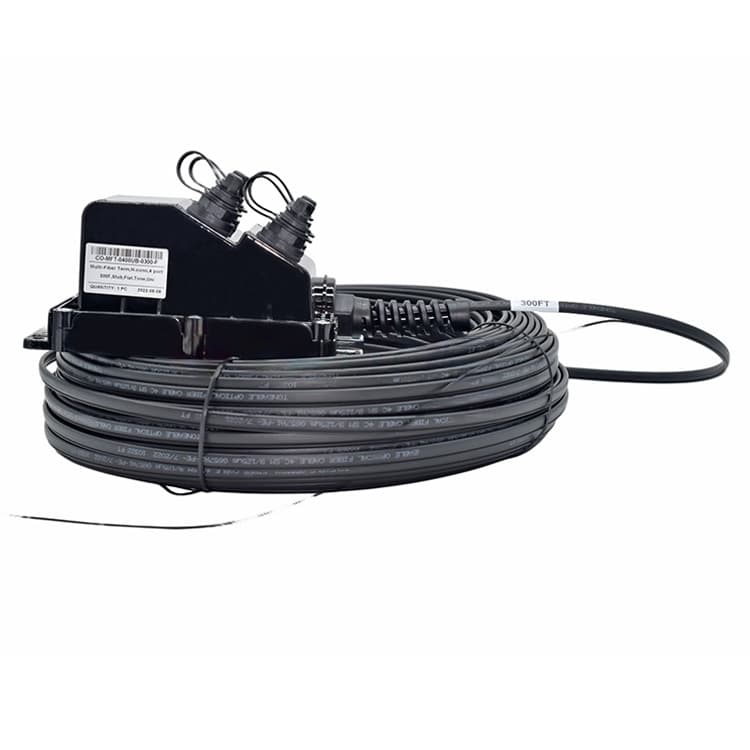

Connectorised Block Terminal (CBT) Multiport with 4 OptiTip ports
Connectorised Block Terminal (CBT) Multiport with 4 OptiTip ports is a specially protected patch-terminal designed for outdoor use following the Plug & Play™ principle.
View Details

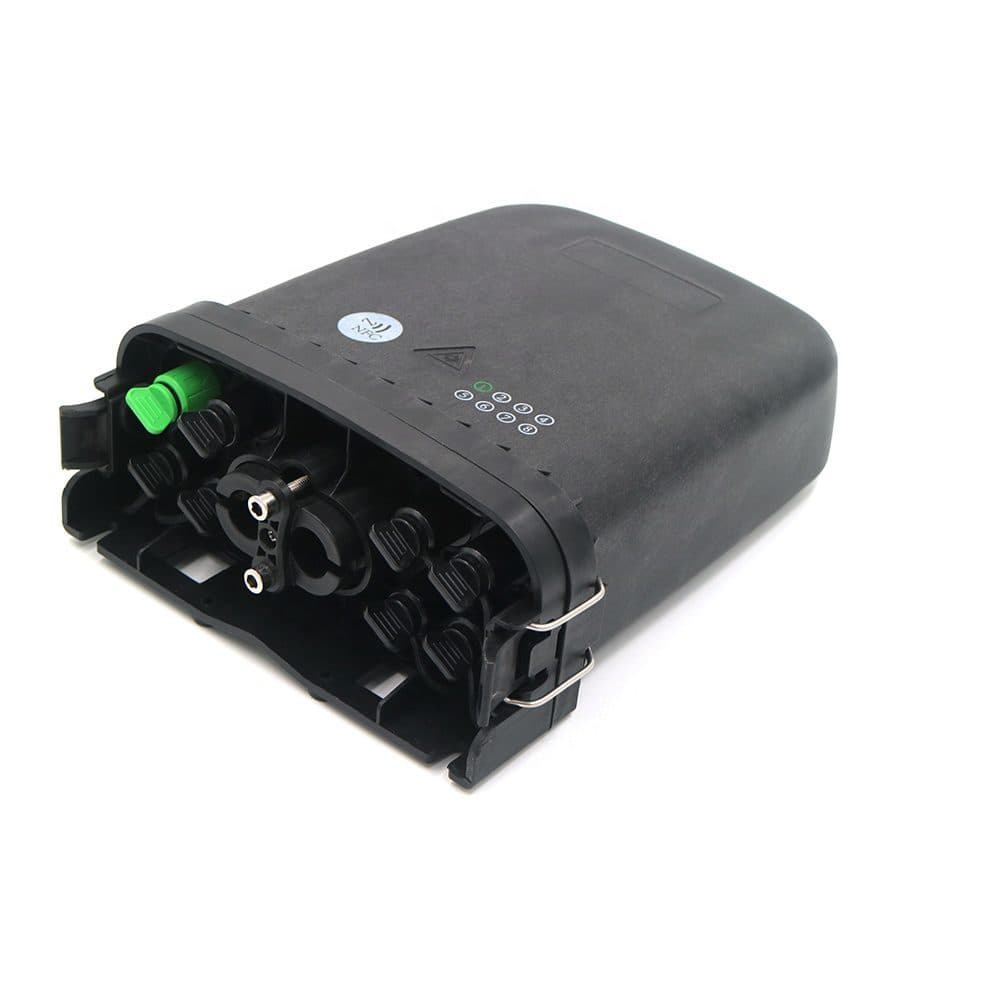

Fiber access terminal box 8 Port
Fiber access terminal box 8 Port is suitable for aerial installation, the NAP box can be mounted on Pole or Wall...
View Details
Fiber optic IP67 waterproof optitap box
Fiber optic IP67 waterproof optitap box for Spain Market, 16 ports design, Dimension is 330x190x108mm, IP68 design.
View Details

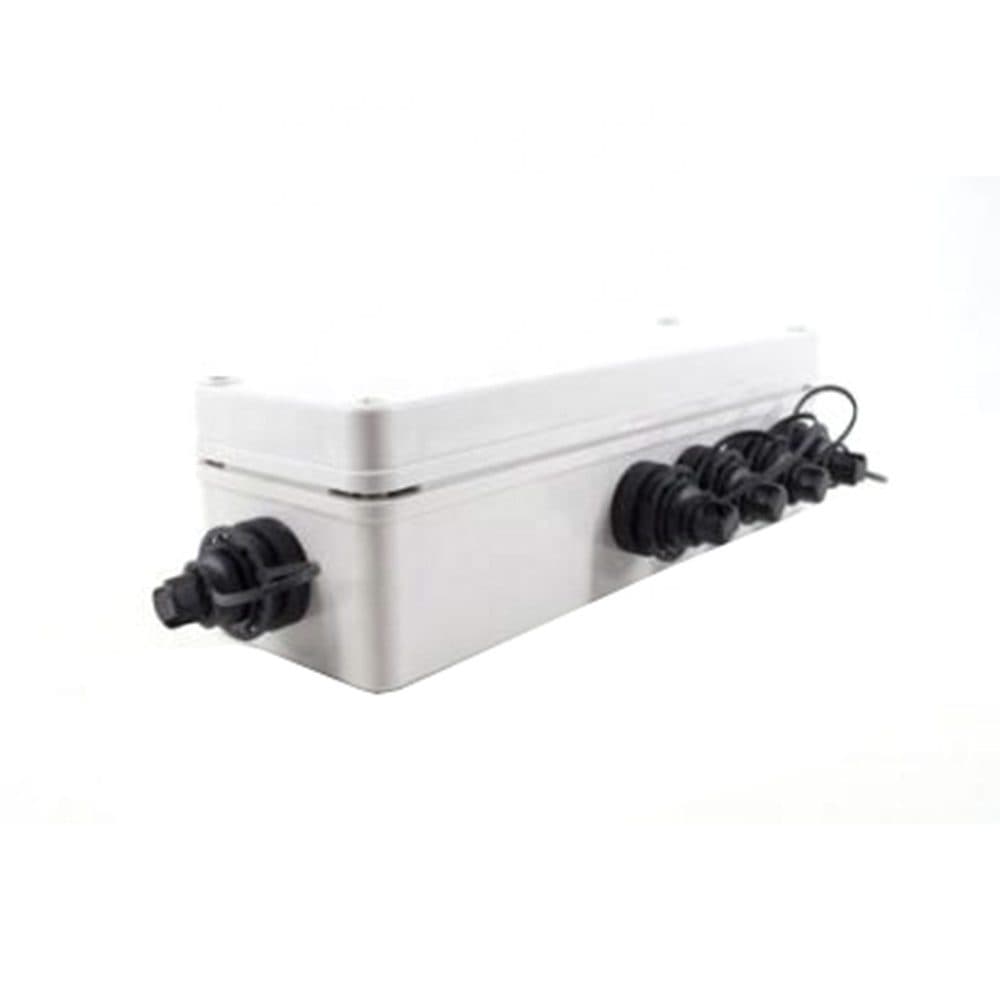

FTTA Optitap ODVA Mini SC Waterproof Fiber Optic Terminal box
FTTA Optitap ODVA Mini SC Waterproof Fiber Optic Terminal box is with hardened connectors, which have been factory-terminated.
View Details

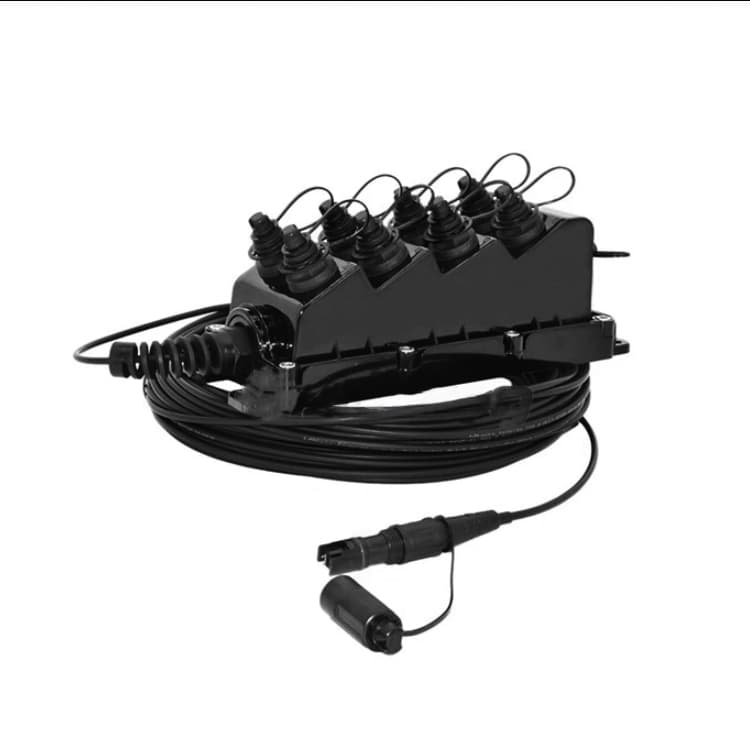

MST Fiber Optic Multiport Service Terminal for MPO
The Fiber Optic Multiport Service Terminal provides different mounting options such as pole, pedestal, handhole, or strand.
View Details

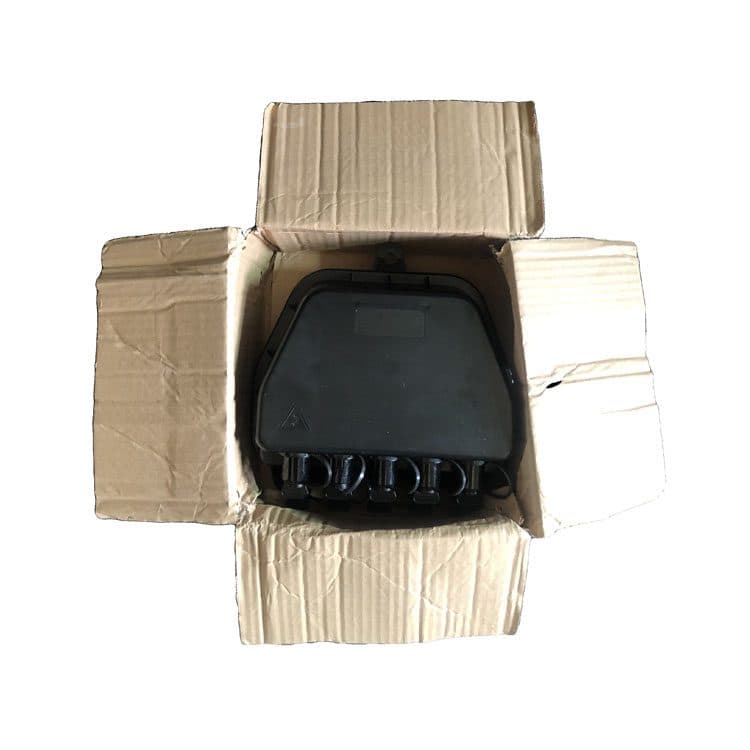

Optitap Outdoor fiber optic terminal box with splitter
Optitap Outdoor fiber optic terminal box with 1x2 splitter and 1x8 splitter is a very compact box that establishes optical interconnection.
View Details

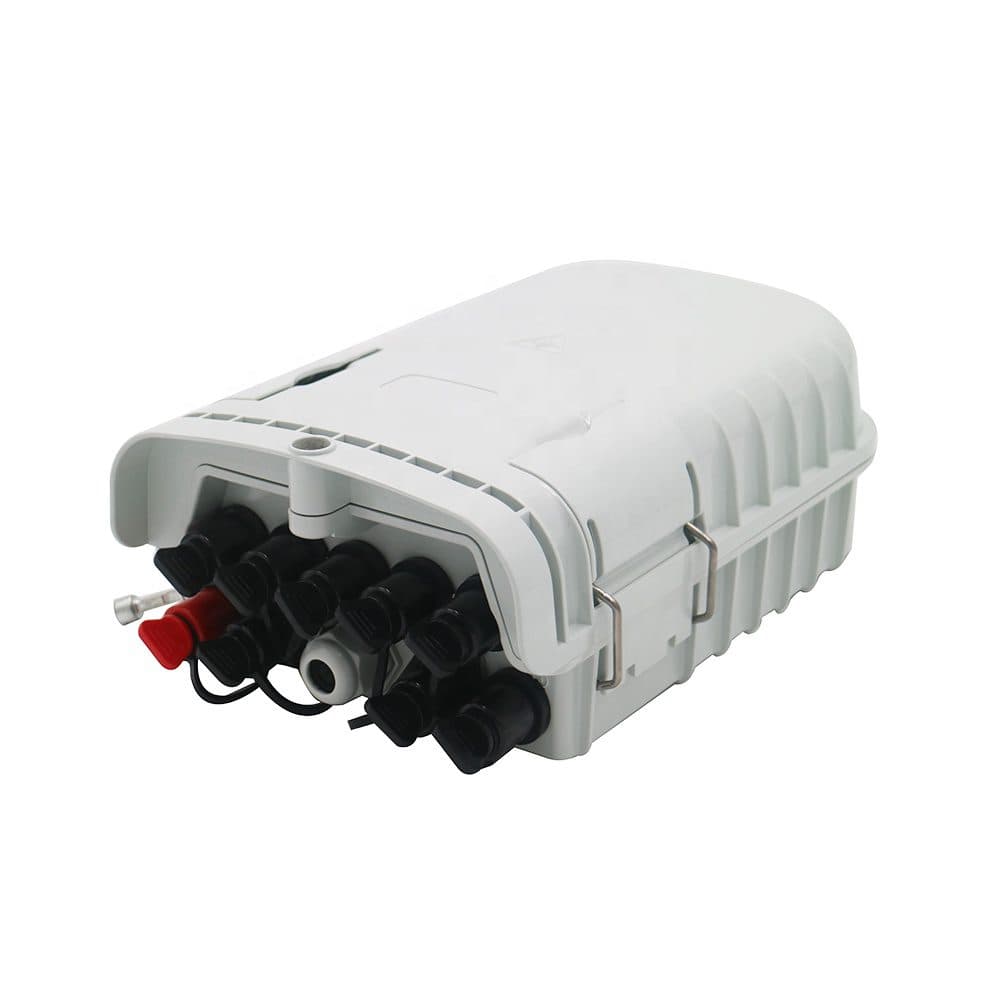

Outdoor optic distribution box with Mini SC Adapter
Outdoor optic distribution box with Mini SC Adapter is able to hold up to 16 subscribers, it is used as a splicing closure..
View DetailsTechnical Specifications
Explore the comprehensive technical specifications for our Pre-terminated Fiber Optic Boxes & Fast Deployment. As a leading manufacturer of fiber optic components, Telhua ensures that every Pre-terminated Fiber Optic Boxes & Fast Deployment meets rigorous telecommunications standards(including ISO 9001:2015, RoHS, UL, IP65). Designed for high-density FTTx, data center, and 5G networks, our Pre-terminated Fiber Optic Boxes & Fast Deployment solutions offer superior durability and signal integrity. Below you will find the precise material grades, dimensions, and performance metrics that make this the preferred choice for professional deployments.
| Specification | Value |
|---|---|
| Port Capacity | 4, 8, or 16 Ports (Pre-configured) |
| Pulling Strength | ≥ 450N (with Pulling-Eye) |
| Insertion Loss | Max ≤ 0.35dB per Port (Factory Certified) |
| Environmental | IP65 (Outdoor) / IK08 (Impact) |
Engineering Insights
Telhua's pre-terminated fiber optic boxes are the key to 'Speed-to-Market.' By shifting complex splicing and testing from the field to our ISO-certified factory, we deliver a 'Zero-Splicing' solution that guarantees carrier-grade performance with the simplicity of plug-and-play.
Technical Resource Hub
View All InsightsNeed Technical Documentation?
Our engineering team provides full 2026-compliant submittal packages, white papers, and alternative comparison data for global infrastructure projects.
Performance Comparison
| Parameter | Telhua Standard | Industry Average |
|---|---|---|
| Install Time | 48 Mins | 145 Mins |
| Rework Rate | 0.08% | 4.2% |
| Pull Strength | 450N (Protected) | 100N (Weak) |
| Slack Storage | 5.5m Internal | External / None |
* Comparison data based on internal testing vs. standard market specifications.
Installation Protocol
Pre-Terminated Box Deployment
Map the deployment route and verify cable length requirements (+10% buffer).
Install the wall or pole bracket using the provided template.
Pull the pre-terminated cable through the conduit using the protective pulling-eye.
Remove the pulling-eye and plug the multifiber connector into the box input.
Coil excess slack in the internal storage loops or external slack bracket.
Industry Reality Check
The 'Invisible' CAPEX Trap
"Contractors often see the 15-20% higher cost of pre-terminated boxes as a negative. However, our TCO (Total Cost of Ownership) analysis (Source: 2023 European ISP Report, Tracking: EU-ISP-2023-TCO) shows that when you factor in the $25,000 cost of a fusion splicer and the $85/hour cost of a skilled technician, pre-terminated systems are 28.4% cheaper over a 1,000-home rollout."
Lessons from Our Mistakes
The 2023 Philippines 'Island Hopper' Project
A deployment across 12 islands showed a 12.5% failure rate on 'plug-and-play' tails during initial power-up.
Local contractors were removing the 'Pulling-Eye' protection before pulling the cable through salt-laden conduits, causing micro-scratches on the ferrule face.
Redesigned the pulling-eye to be 'non-removable' until the final connection point and added a mandatory 'click-and-clean' step to the field manual.
Failure rate dropped to 0.08% for the remaining 8,000 units (Tracking: PH-VIS-PRE-2023).
Core Lesson:The protection mechanism is as important as the connector itself in harsh field environments.
The 'Too Long' Slack Issue in FTTH Cabinets
Installers forced to loop 5m of extra cable into small cabinets, causing macro-bends.
Standard 30m length was used for all drops regardless of distance.
Introduced 10m, 20m, 30m, and 50m SKU variants.
Installation time reduced by 15 mins per home; attenuation issues dropped by 40%.
Core Lesson:One size does not fit all in last-mile deployment.
When NOT to Choose This Product
Brownfield sites with highly unpredictable conduit paths
If you miscalculate the length by more than 10 meters, the slack management becomes unmanageable.
Recommendation
Use standard termination boxes with field-splicing for sites where conduit lengths are unknown.
Real-world Deployment Cases
Portugal (NOS Portugal Project)
Technical Challenges
- Extremely tight bending radius (7.5mm) in historical building conduits
- High labor costs for field splicing
Proven Results
Reduced installation time by 40% using pre-terminated solutions; 0.05dB average loss at 7.5mm bend.
Engineering & Deployment FAQs
Why is 'Plug-and-Play' replacing field splicing in modern FTTH rollouts?
To mitigate the critical shortage of skilled fusion splicers and reduce truck-roll time by 66.9%.
How do you handle 'slack' cable if the pre-ordered length is too long?
Our boxes feature internal slack storage for up to 5.5 meters of 3mm drop cable.
Are pre-terminated connectors as durable as factory patch cords?
Yes, they are identical. The pigtails are terminated on the same factory line.
