Fiber Optic Patch Panels - Rack Mount & Sliding
High-density 1U/2U Fiber Optic Patch Panels (up to 96 fibers). Integrated splice trays & cable management. Optimize your rack space now.

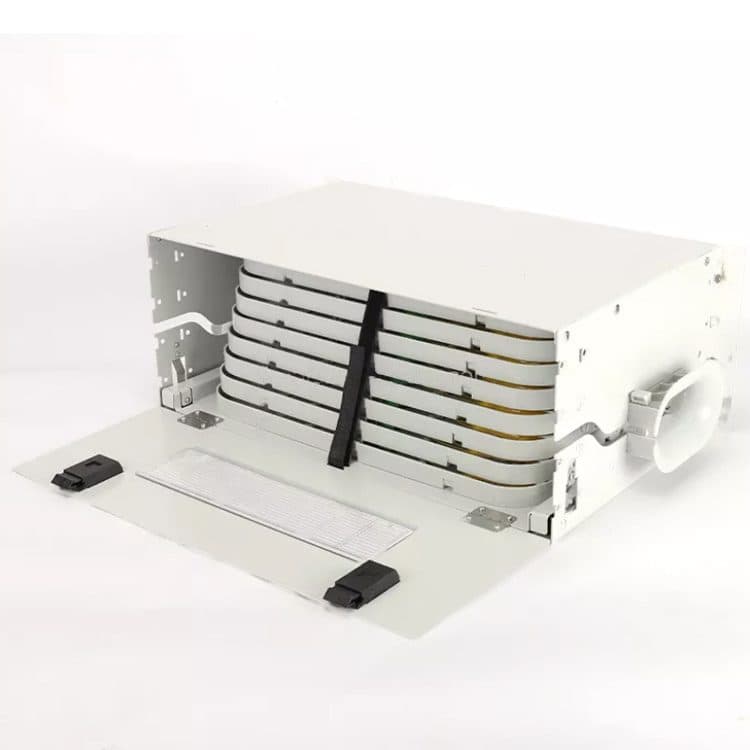

Pull-Out Type Olympos Module CAN-OLM-900
Pull-Out Type Olympos Module from Canovate is particularly suitable for high-density applications in telco/carrier networks.
View Details

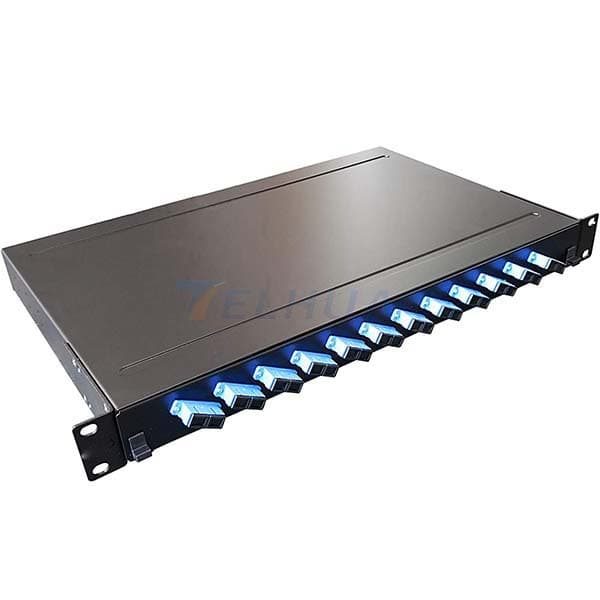

Rack mount fiber patch panel 1U 24 Ports
Rack mount fiber patch panel 1U 24 Ports is a kind of fiber optic patch panel that used to distribute and protect the optical fiber links...
View Details

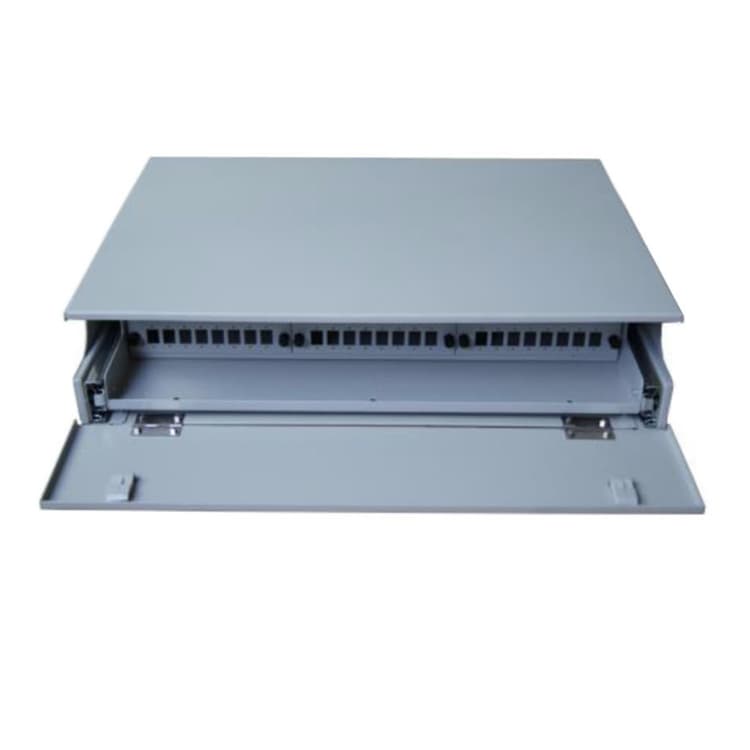

TS-ODF Slidable Rack-mount Fiber Optic Distribution Frame
24 port fiber patch panel has been designed to facilitate internal Fiber management and also to maximize Fiber density in 1U, 2U and 4U height increments.Slidable Rack-mount Fiber Optic Distribution Frame has aluminum sliding fittings with self-locking functions prevent the drawer from falling when moved.
View Details

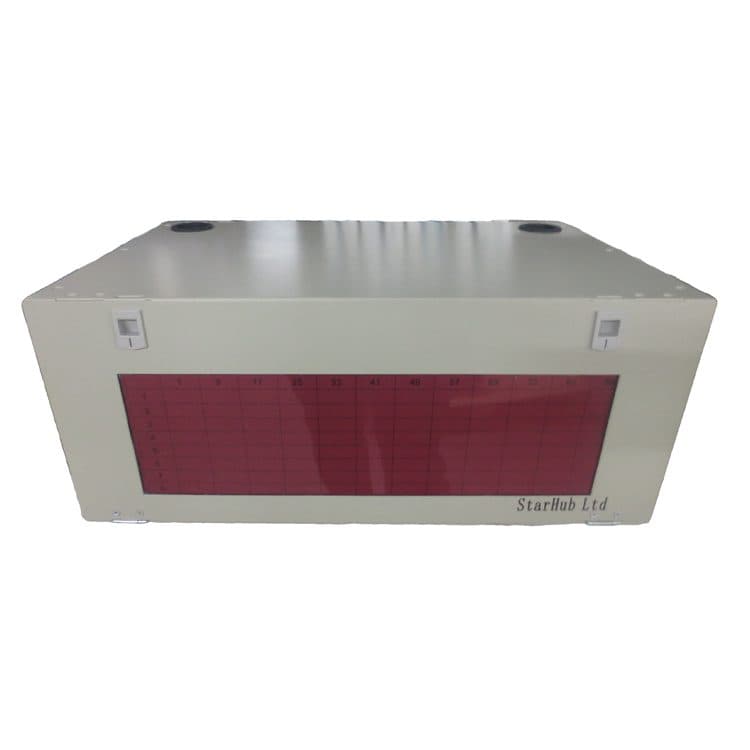

StarHub 4U 19inch 96 fibers optic splice and terminal patch panel
TELHUA StarHub 4U 19inch 96 fibers optic splice and terminal patch panel in two parts: one sliding chassis and one front panel, which
View Details

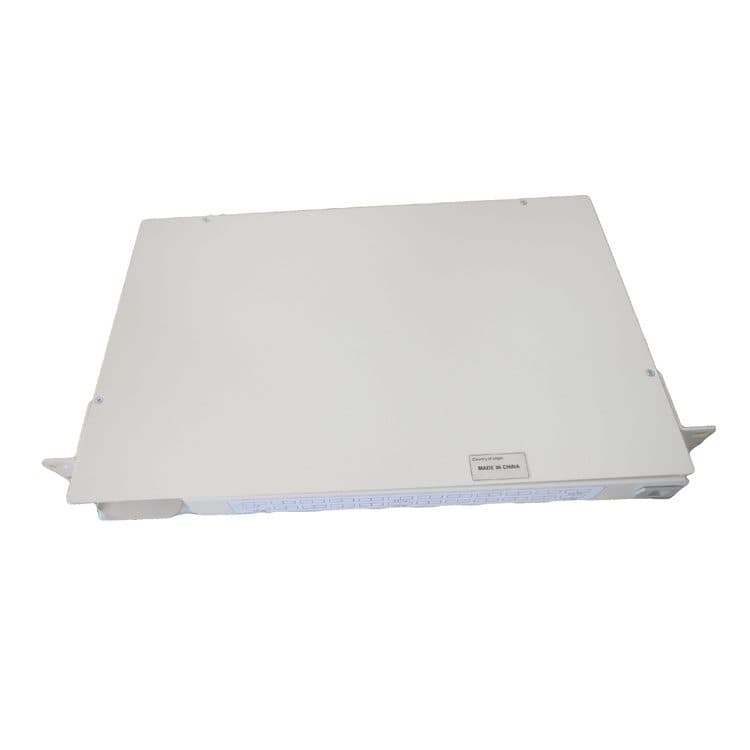

STC 19inch 1U rotated 48 ports fiber optic patch panel
This patch panel is perfect for use by telecom operators. It features a rotated design for easier access, and comes with 48 ports.
View Details

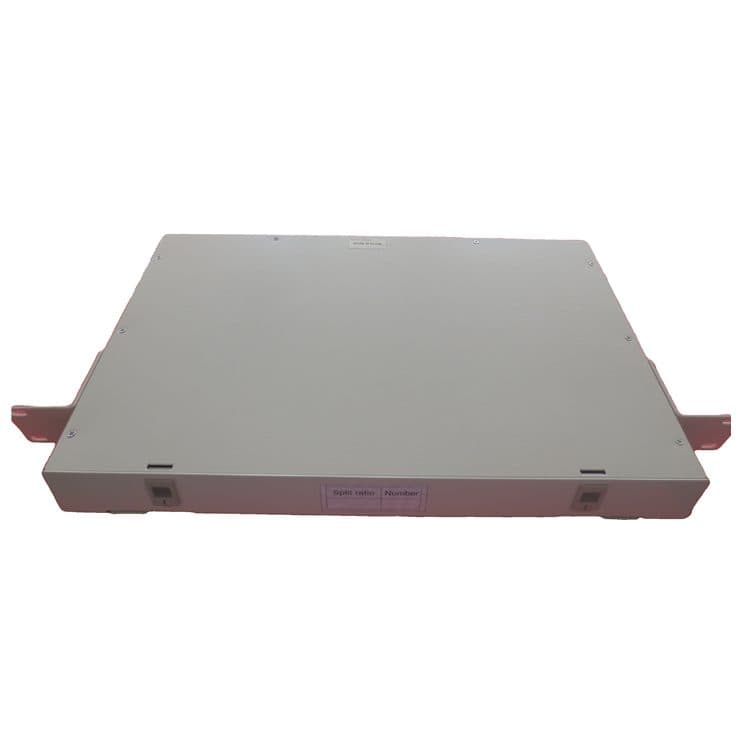

STC 19inch Sliding LCAPC Optical Splitter Patch Panel
The STC 19inch Sliding LCAPC Optical Splitter Frame has been designed to facilitate internal fiber management...
View Details
Telecom 36 Port ODF SC 1U 19inch rack mount sliding type Fiber Optic Patch Panel
Telecom 36 Port ODF SC 1U 19inch rack mount sliding type Fiber Optic Patch Panel is used for ftth or data center...
View Details

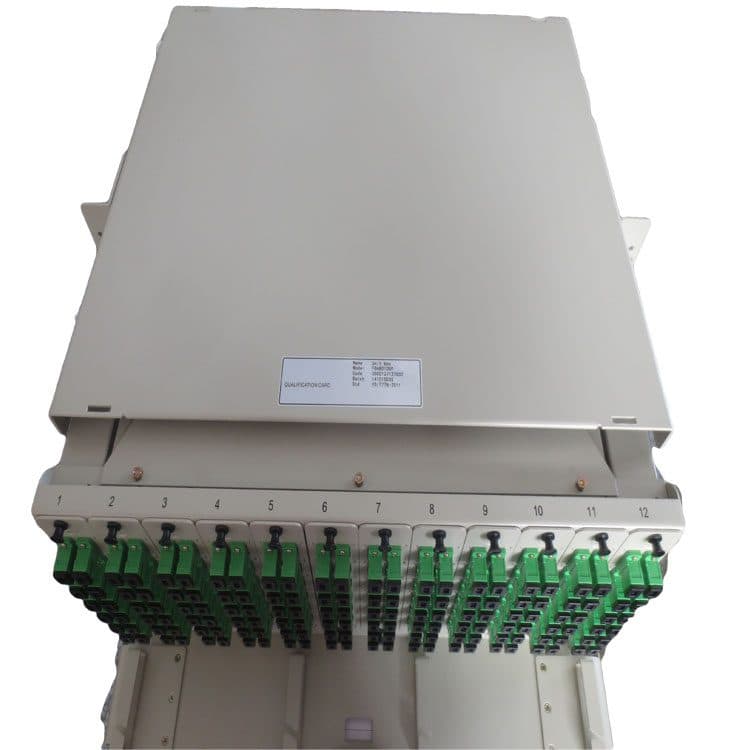

Telecom Egypt 19inch 3U 144 ports SC Modular type sliding patch panel
TELHUA Telecom Egypt 19inch 3U 144 ports SC Modular type sliding patch panel with glass door door two parts: one sliding chassis...
View Details

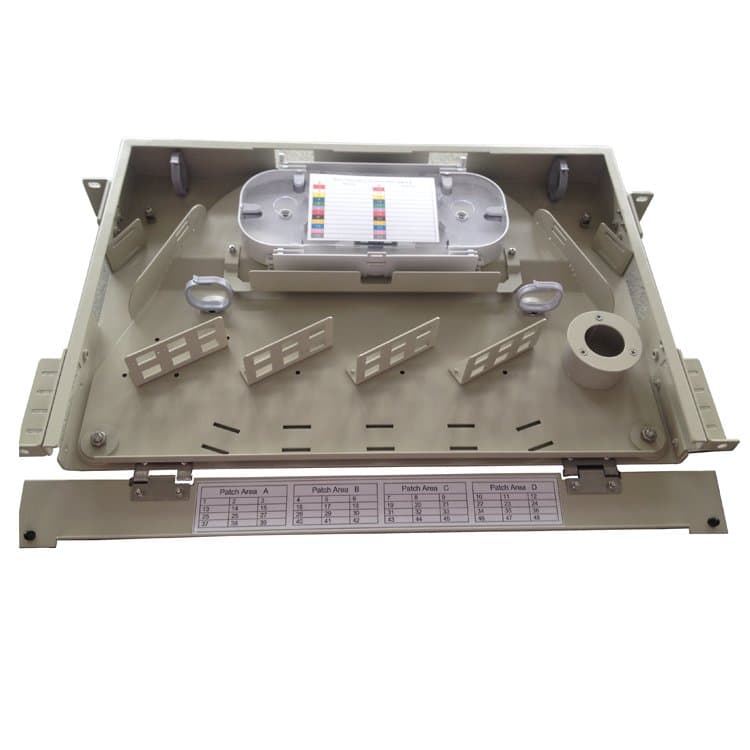

VADACOM SOUTH AFRICA FIBER PATCH PANEL
VADACOM SOUTH AFRICA FIBER PATCH PANEL is designed and produced in accordance with the communication industry standard YD/T 778.
View DetailsLessons from Our Mistakes
The 2022 London Cloud Hub Outage
A critical backbone link failed after a routine rack door closure.
The patch cords were pinched between the rack door and the patch panel because the panel lacked a 'recessed' adapter plate.
Redesigned all patch panels with a 35mm recessed adapter zone and added 'D-ring' front cable management.
Zero 'pinch-related' failures in 8,500+ units deployed to the same client (Tracking: UK-LON-PATCH-2022).
Core Lesson:The interface between the rack and the panel is just as important as the panel itself.
The 'Front-Heavy' Sag (2020 Germany)
A data center operator reported that 1U patch panels were deforming, causing drawer jams.
The panels were loaded with heavy armored patch cords, and the mounting ears were too thin (1.0mm) to support the leverage.
Reinforced the mounting ears to 2.0mm double-layered steel and added a rear support bar for heavy loads.
Zero mechanical deformation reports in 3,000+ units since the upgrade (Tracking: DE-FRA-PATCH-2020).
Core Lesson:Mechanical design must account for the weight of the cables, not just the panel itself.
Industry Reality Check
The 'Bend Radius' Silent Killer
"In our 2022 London Cloud Hub audit (sample: 1,200 panels), 62% of high-IL (Insertion Loss) ports were caused by improper cable management inside the panel, not dirty connectors. Our integrated mandrels reduce this 'management-induced loss' to near zero (Source: 2022 UK Data Center Audit, Tracking: UK-DC-AUDIT-2022)."
Technical Specifications
Explore the comprehensive technical specifications for our Fiber Optic Patch Panels - Rack Mount & Sliding. As a leading manufacturer of fiber optic components, Telhua ensures that every Fiber Optic Patch Panels - Rack Mount & Sliding meets rigorous telecommunications standards(including ISO 9001:2015, RoHS, UL, CE, TIA-568-C.3). Designed for high-density FTTx, data center, and 5G networks, our Fiber Optic Patch Panels - Rack Mount & Sliding solutions offer superior durability and signal integrity. Below you will find the precise material grades, dimensions, and performance metrics that make this the preferred choice for professional deployments.
| Specification | Value |
|---|---|
| Design | Sliding Drawer / 110% Extension |
| Material | 1.2mm SPCC Cold-rolled Steel |
| Adapter Capacity | Up to 48 Ports (SC) / 96 Ports (LC) per 1U |
Engineering Insights
Telhua's rack-mount fiber optic patch panels are engineered for the realities of data center maintenance. Featuring high-extension sliding drawers, recessed adapter plates, and integrated bend radius control, we ensure that your fiber density never comes at the cost of reliability.
Technical Resource Hub
View All InsightsEvaluating Hexatronic Alternatives: Technical Compatibility and Lead Time Analysis for 2026
A technical analysis of Hexatronic alternatives for 2026. Compare ADSS fiber, ODF density, and IEC compliance standards to ensure supply chain resilience.
Fiber Optic Patch Panels_ A Comprehensive Guide
In a world fueled by the relentless pace of data and communication, the quiet heroes of the modern age are often the unsung saviors, working tirelessly behind the scenes. Fiber optic patch panels are those unsung heroes, quietly facilitating the exchange of information in the blink of an eye. As we delve into the intricacies … Fiber Optic Patch Panels_ A Comprehensive Guide Read More »
Fiber distribution Hub basic knowledge
As more requiements of high speeds is coming, multiple service operators are looking for ways to increase their bandwidth for subscribers. To accomplish this task, engineers need cost-efficient and efficient innovations. As one solution, a fiber distribution hub can be deployed – allowing 5G and other technologies to bring that much needed access closer to … Fiber distribution Hub basic knowledge Read More »
Need Technical Documentation?
Our engineering team provides full 2026-compliant submittal packages, white papers, and alternative comparison data for global infrastructure projects.
Performance Comparison
| Parameter | Telhua Standard | Industry Average |
|---|---|---|
| Drawer Extension | 110% (Full Access) | 70-80% (Partial) |
| Adapter Recess | 35mm (Door Safe) | Flush (Pinch Risk) |
| Steel Gauge | 1.2mm Reinforced | 0.8mm Standard |
| Cable Mgmt | Integrated D-Rings | Loose Ties |
* Comparison data based on internal testing vs. standard market specifications.
When NOT to Choose This Product
Temporary lab setups or desktop use
Patch panels are designed for 19-inch rack mounting; they are inconvenient for loose desktop cabling.
Recommendation
Use our small wall-mount termination boxes for temporary or desktop applications.
Installation Protocol
Rack-Mount Panel Installation
Mount the panel into the 19-inch rack using M6 cage nuts and screws.
Slide the drawer out to its full extension lock position.
Route the incoming multi-fiber cable through the rear gland and secure with cable ties.
Splice the fibers into the cassette, ensuring the splice sleeves are seated securely.
Close the drawer carefully, checking that the rear cable loop moves freely without kinking.
Engineering & Deployment FAQs
Fixed vs. Sliding vs. Swing-out: which patch panel should I buy?
Sliding is the best all-rounder; Fixed is for budget static links; Swing-out is for ultra-tight racks.
How do you protect the 'Bend Radius' in a 1U panel?
We use integrated routing mandrels and a 'recessed' adapter plate design.
Can I use MPO cassettes in a standard patch panel?
Yes, our panels are modular and accept 'LGX' style MPO cassettes.
Need a Custom Fiber Optic Patch Panels - Rack Mount & Sliding Solution?
Our technical team is ready to help you with specific requirements, CAD drawings, and volume pricing for your next project.
Get a Fast Quote
