Fiber Optic Patch Panels - Rack Mount & Sliding
High-density 1U/2U Fiber Optic Patch Panels (up to 96 fibers). Integrated splice trays & cable management. Optimize your rack space now.

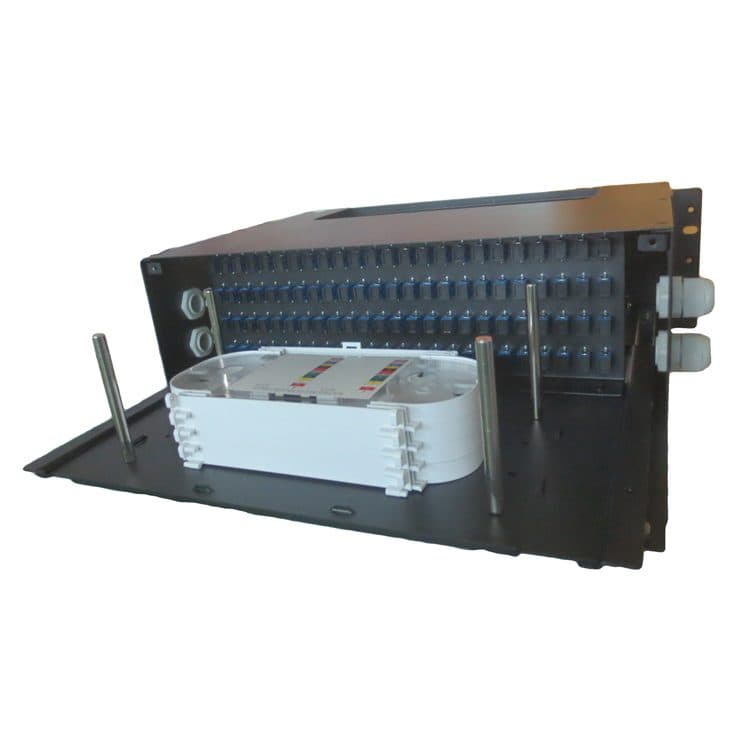

Egypt 19inch 3U 96 ports sc adapter sliding patch panel with glass door
TELHUA Egypt 19inch 3U 96 ports sc adapter sliding patch panel with glass door two parts: one sliding chassis and one front panel
View Details
fiber patch panel 12 port
Fiber patch panel 12 port is commonly described as the interface panel that connects multiple optical fiber cables and optical equipment.
View Details

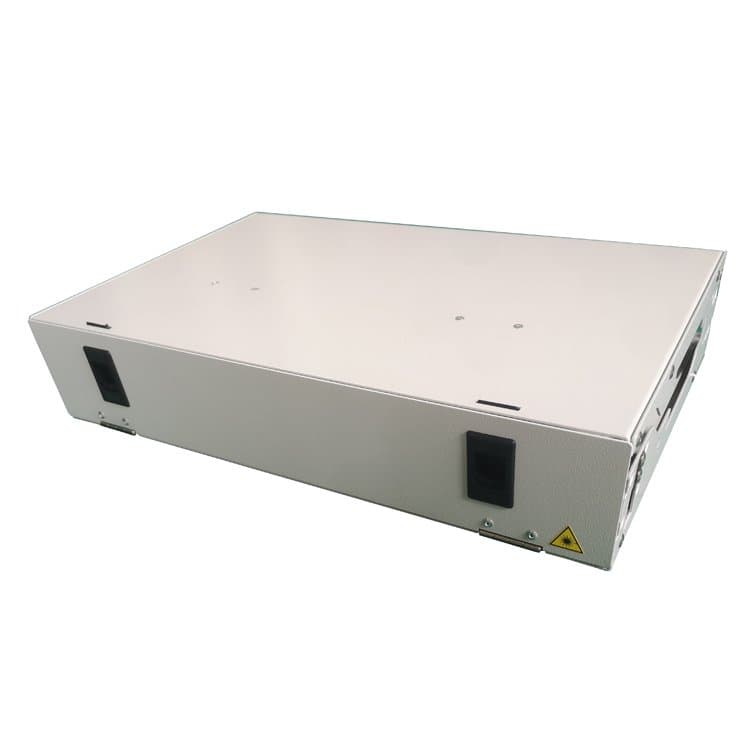

FIST-GPSQ shelves – FIST fiber management system
The generic tray patching & splicing shelf FIST-GPS2 is the mechanical assembly for the fiber management system that provides the function of cable splicing
View Details

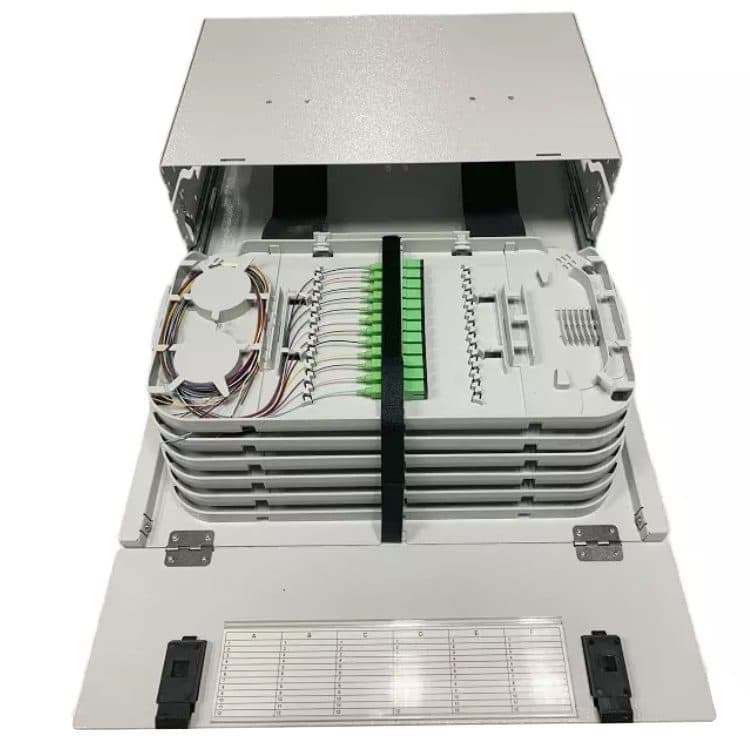

Generic Splice Patch Shelf Trays FIST-GPST
The generic tray patching & splicing shelf FIST-GPS2 is the mechanical assembly for the fiber management system that provides the function of cable splicing
View Details
IBM 1HU 19″ Distribution Drawer-Type Panel AL, Empty
This is used for IBM fiber optic patch panel, also can be for pre-terminated cables.
View Details

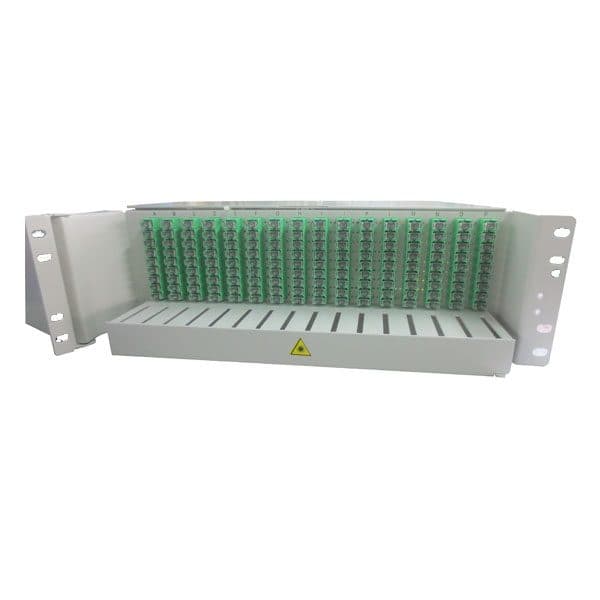

MOF144-3U 19inch modular swivel drawer 3U 144FO left opening
The MOF144-3U 19inch modular swivel drawer 3U 144FO SCAPC G657A2 left opening features a pivoting rear faceplate...
View Details

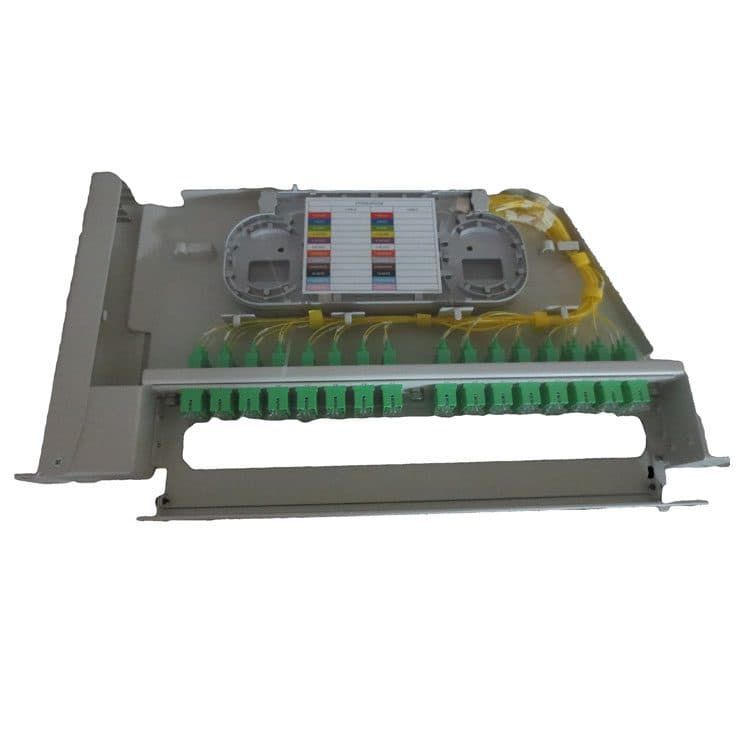

MOF72-1U 19inch swing out fiber optic patch panel
The MOF72-1U 19inch swing out fiber optic patch panel features a pivoting rear faceplate for splicing incoming tubed fibers into ca
View Details

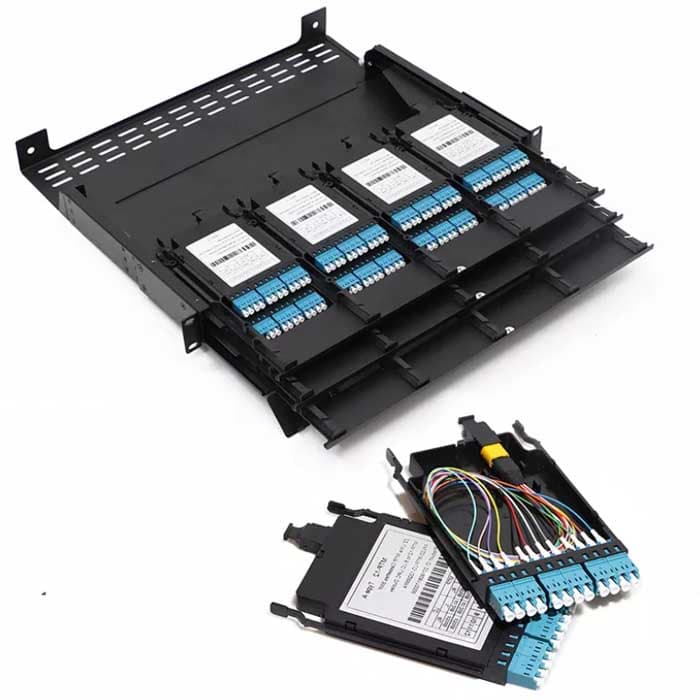

mtp to lc patch panel
Mtp to lc patch panel combined with our frosted painting makes for a beautiful aesthetic. The patch panel is made from aluminum material.
View Details
Opterna 19inch 1U fibre patch panel 24 port
Opterna 19inch 1U fibre patch panel 24 port is in two parts: one sliding chassis and one front panel, which receives the optical...
View Details

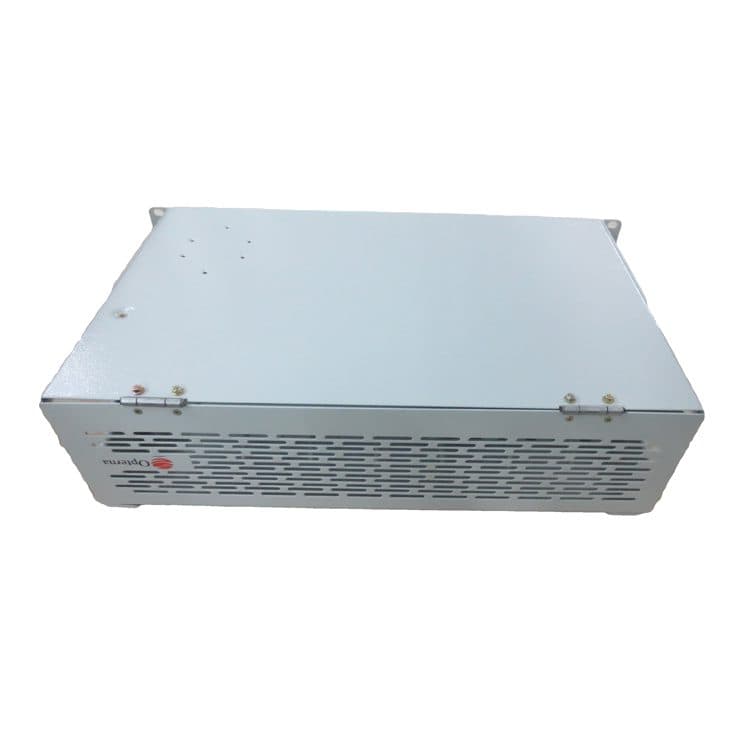

Opterna 19inch 3U 144 ports sc quad adapter swing-out fiber optic patch panel
The Opterna 19inch 3U 144 ports sc quad adapter swing-out fiber optic patch panel has been designed to facilitate...
View Details

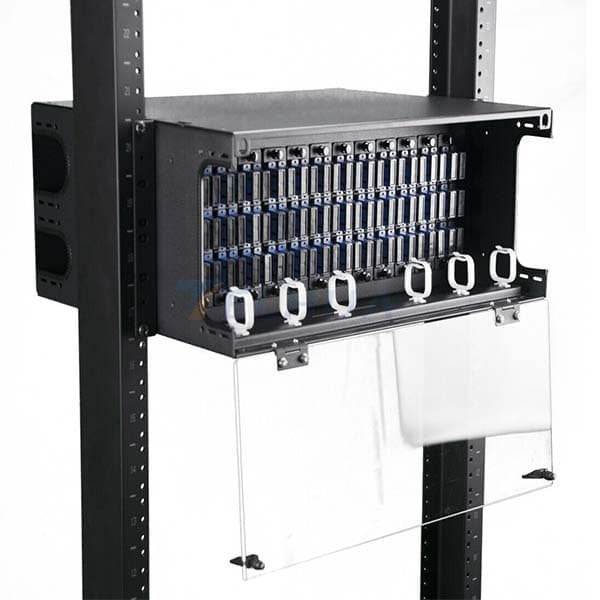

Optic Patch Panel Rack Mount 4RU SCUPC 144 Port
The Optic Patch Panel Rack Mount 4RU SCUPC 144 Port is a 4 Rack Unit(4RU) termination panel, 19 - and 23-inch...
View Details

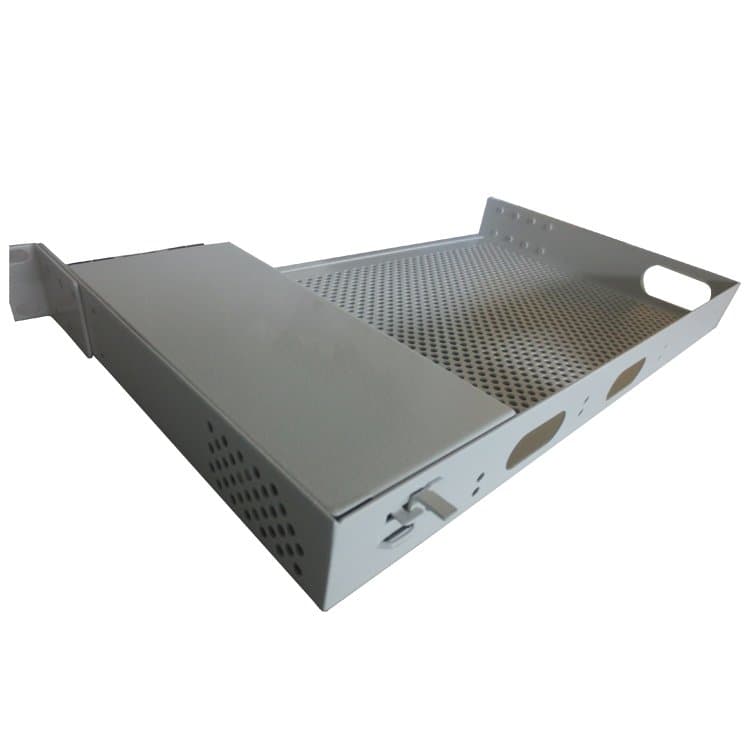

Optical Tray for Active Equipment
FIST-GPSQ shelves feature the FIST fiber management system and provide a platform for patching and splicing within a rack environment.
View DetailsLessons from Our Mistakes
The 2022 London Cloud Hub Outage
A critical backbone link failed after a routine rack door closure.
The patch cords were pinched between the rack door and the patch panel because the panel lacked a 'recessed' adapter plate.
Redesigned all patch panels with a 35mm recessed adapter zone and added 'D-ring' front cable management.
Zero 'pinch-related' failures in 8,500+ units deployed to the same client (Tracking: UK-LON-PATCH-2022).
Core Lesson:The interface between the rack and the panel is just as important as the panel itself.
The 'Front-Heavy' Sag (2020 Germany)
A data center operator reported that 1U patch panels were deforming, causing drawer jams.
The panels were loaded with heavy armored patch cords, and the mounting ears were too thin (1.0mm) to support the leverage.
Reinforced the mounting ears to 2.0mm double-layered steel and added a rear support bar for heavy loads.
Zero mechanical deformation reports in 3,000+ units since the upgrade (Tracking: DE-FRA-PATCH-2020).
Core Lesson:Mechanical design must account for the weight of the cables, not just the panel itself.
Industry Reality Check
The 'Bend Radius' Silent Killer
"In our 2022 London Cloud Hub audit (sample: 1,200 panels), 62% of high-IL (Insertion Loss) ports were caused by improper cable management inside the panel, not dirty connectors. Our integrated mandrels reduce this 'management-induced loss' to near zero (Source: 2022 UK Data Center Audit, Tracking: UK-DC-AUDIT-2022)."
Technical Specifications
Explore the comprehensive technical specifications for our Fiber Optic Patch Panels - Rack Mount & Sliding. As a leading manufacturer of fiber optic components, Telhua ensures that every Fiber Optic Patch Panels - Rack Mount & Sliding meets rigorous telecommunications standards(including ISO 9001:2015, RoHS, UL, CE, TIA-568-C.3). Designed for high-density FTTx, data center, and 5G networks, our Fiber Optic Patch Panels - Rack Mount & Sliding solutions offer superior durability and signal integrity. Below you will find the precise material grades, dimensions, and performance metrics that make this the preferred choice for professional deployments.
| Specification | Value |
|---|---|
| Design | Sliding Drawer / 110% Extension |
| Material | 1.2mm SPCC Cold-rolled Steel |
| Adapter Capacity | Up to 48 Ports (SC) / 96 Ports (LC) per 1U |
Engineering Insights
Telhua's rack-mount fiber optic patch panels are engineered for the realities of data center maintenance. Featuring high-extension sliding drawers, recessed adapter plates, and integrated bend radius control, we ensure that your fiber density never comes at the cost of reliability.
Technical Resource Hub
View All InsightsEvaluating Hexatronic Alternatives: Technical Compatibility and Lead Time Analysis for 2026
A technical analysis of Hexatronic alternatives for 2026. Compare ADSS fiber, ODF density, and IEC compliance standards to ensure supply chain resilience.
Fiber Optic Patch Panels_ A Comprehensive Guide
In a world fueled by the relentless pace of data and communication, the quiet heroes of the modern age are often the unsung saviors, working tirelessly behind the scenes. Fiber optic patch panels are those unsung heroes, quietly facilitating the exchange of information in the blink of an eye. As we delve into the intricacies … Fiber Optic Patch Panels_ A Comprehensive Guide Read More »
Fiber distribution Hub basic knowledge
As more requiements of high speeds is coming, multiple service operators are looking for ways to increase their bandwidth for subscribers. To accomplish this task, engineers need cost-efficient and efficient innovations. As one solution, a fiber distribution hub can be deployed – allowing 5G and other technologies to bring that much needed access closer to … Fiber distribution Hub basic knowledge Read More »
Need Technical Documentation?
Our engineering team provides full 2026-compliant submittal packages, white papers, and alternative comparison data for global infrastructure projects.
Performance Comparison
| Parameter | Telhua Standard | Industry Average |
|---|---|---|
| Drawer Extension | 110% (Full Access) | 70-80% (Partial) |
| Adapter Recess | 35mm (Door Safe) | Flush (Pinch Risk) |
| Steel Gauge | 1.2mm Reinforced | 0.8mm Standard |
| Cable Mgmt | Integrated D-Rings | Loose Ties |
* Comparison data based on internal testing vs. standard market specifications.
When NOT to Choose This Product
Temporary lab setups or desktop use
Patch panels are designed for 19-inch rack mounting; they are inconvenient for loose desktop cabling.
Recommendation
Use our small wall-mount termination boxes for temporary or desktop applications.
Installation Protocol
Rack-Mount Panel Installation
Mount the panel into the 19-inch rack using M6 cage nuts and screws.
Slide the drawer out to its full extension lock position.
Route the incoming multi-fiber cable through the rear gland and secure with cable ties.
Splice the fibers into the cassette, ensuring the splice sleeves are seated securely.
Close the drawer carefully, checking that the rear cable loop moves freely without kinking.
Engineering & Deployment FAQs
Fixed vs. Sliding vs. Swing-out: which patch panel should I buy?
Sliding is the best all-rounder; Fixed is for budget static links; Swing-out is for ultra-tight racks.
How do you protect the 'Bend Radius' in a 1U panel?
We use integrated routing mandrels and a 'recessed' adapter plate design.
Can I use MPO cassettes in a standard patch panel?
Yes, our panels are modular and accept 'LGX' style MPO cassettes.
Need a Custom Fiber Optic Patch Panels - Rack Mount & Sliding Solution?
Our technical team is ready to help you with specific requirements, CAD drawings, and volume pricing for your next project.
Get a Fast Quote
