Fiber Optic Attenuators - Fixed & Variable
Precision Fixed & Variable Fiber Optic Attenuators (1dB-30dB). Stable attenuation for optical power balancing. Download datasheet.

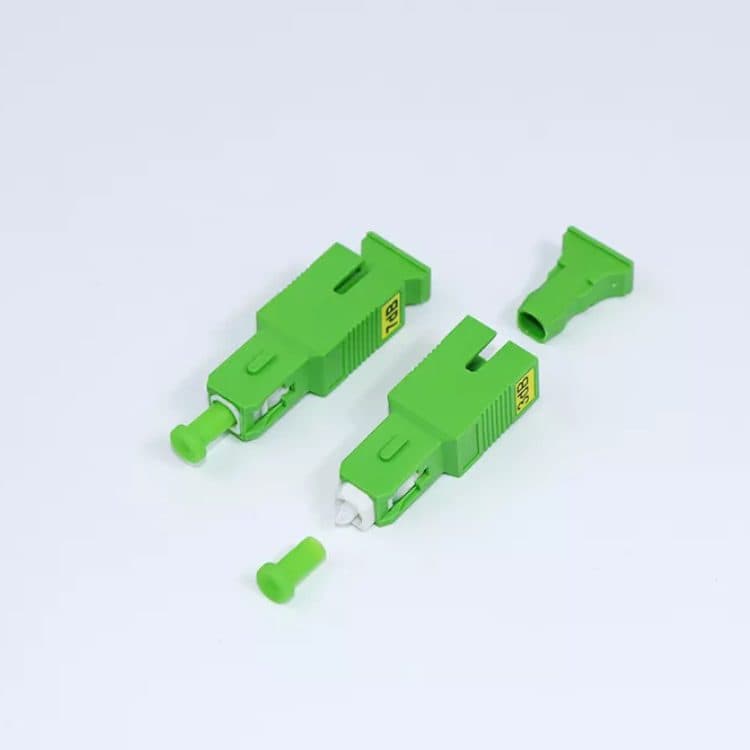

SCAPC Plastic Fiber Optic Attenuator
SCAPC Plastic Fiber Optic Attenuator is a powerful optical passive device designed to correct, calibrate and adjust the power of incoming signals.
View Details

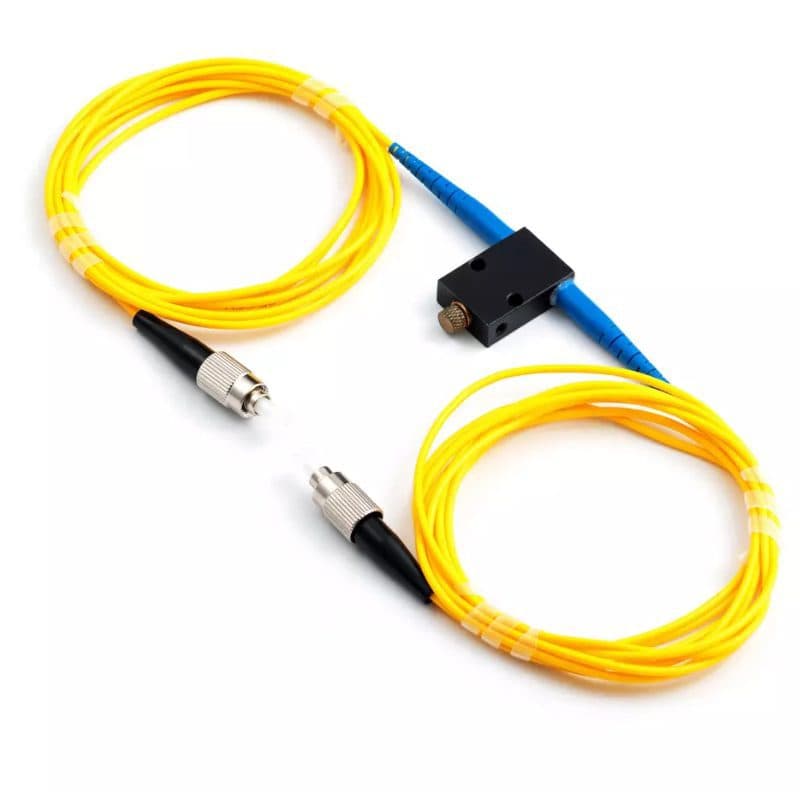

Variable Optic Attenuator Fiber Patch cord
A variable optic attenuator fiber patch cord is a specialized type of fiber optic cable that is used to connect two optical fibers together
View DetailsTechnical Specifications
Explore the comprehensive technical specifications for our Fiber Optic Attenuators - Fixed & Variable. As a leading manufacturer of fiber optic components, Telhua ensures that every Fiber Optic Attenuators - Fixed & Variable meets rigorous telecommunications standards(including ISO 9001:2015, RoHS, Telcordia GR-910-CORE). Designed for high-density FTTx, data center, and 5G networks, our Fiber Optic Attenuators - Fixed & Variable solutions offer superior durability and signal integrity. Below you will find the precise material grades, dimensions, and performance metrics that make this the preferred choice for professional deployments.
| Specification | Value |
|---|---|
| Technology | Metal-ion Doped Fiber |
| Return Loss | ≥ 60dB (APC) / ≥ 50dB (UPC) |
| Attenuation Accuracy | ±0.45dB (for 1-10dB range) |
Engineering Insights
Telhua's high-precision optical attenuators provide the exact power control needed for mission-critical networks. By utilizing metal-ion doped fiber, we deliver stable, wavelength-independent performance that protects your expensive active equipment from saturation and damage.
Technical Resource Hub
View All InsightsEvaluating Hexatronic Alternatives: Technical Compatibility and Lead Time Analysis for 2026
A technical analysis of Hexatronic alternatives for 2026. Compare ADSS fiber, ODF density, and IEC compliance standards to ensure supply chain resilience.
Basic Knowledge About Fiber Optic Attenuator
Fiber optic attenuator is inserted into a fiber optic system to reduce the power of the signal. Fiber attenuators can be used to protect the fiber from damage, and adjust the different fiber optic attenuation levels. There are many types of optical attenuators, including fixed, variable, and adjustable attenuators. 1. What are fiber attenuators and … Basic Knowledge About Fiber Optic Attenuator Read More »
Can This New Metric Accurately Measure Your Fiber Attenuator’s Signal Loss?
Fiber optic communication is considered ideal for data transmission over long distances. A fiber optic system uses lightwave technology for data transmission by transforming electrical signals into light pulses. It has exceptional features such as small bandwidth, long-distance signal transmission, lightweight, low attenuation, and large bandwidth. These characteristics make this system a significant contributor to … Can This New Metric Accurately Measure Your Fiber Attenuator’s Signal Loss? Read More »
Need Technical Documentation?
Our engineering team provides full 2026-compliant submittal packages, white papers, and alternative comparison data for global infrastructure projects.
Performance Comparison
| Parameter | Telhua Standard | Industry Average |
|---|---|---|
| Technology | Metal-Ion Doped Fiber | Air Gap / Offset |
| Return Loss (APC) | ≥ 60dB | 35-45dB |
| Power Stability | ±0.02dB/°C | ±0.1dB/°C |
| Max Power | 1000mW | 200-500mW |
* Comparison data based on internal testing vs. standard market specifications.
Installation Protocol
Attenuator Application
Measure the optical power level *before* inserting the attenuator.
Select the attenuation value (e.g., 5dB) to reach the target receiver range (usually -15dBm).
Clean both the attenuator connector and the receptacle.
Insert the attenuator into the receiver port, then plug the patch cord into the attenuator.
Always attenuate at the Receive (Rx) end, never the Transmit (Tx) end.
Industry Reality Check
The 'Saturation Blindness' Epidemic
"Our 2023 support data shows that 28% of 'faulty' SFP returns were actually caused by lack of attenuation on short-haul links. Over-powering a receiver shortens its lifespan by 45% due to thermal stress on the photodiode (Source: 2023 Optical Component Reliability Study, Tracking: OPT-REL-2023)."
Lessons from Our Mistakes
The 2020 Tokyo Data Center Receiver Burnout
A high-frequency trading firm lost 12 primary links simultaneously during a cold-start of their 100G backbone.
New high-power LR4 optics were used on 50-meter intra-rack links without attenuation, instantly 'burning' the PIN photodiodes.
Standardized a 'Mandatory Attenuation' policy for any link <500m and deployed Telhua 10dB fixed attenuators.
Zero receiver failures in 4 years of operation (Tracking: JP-TYO-DC-2020).
Core Lesson:Always verify power levels before 'plug-and-play' with high-power optics.
The 'Wavelength Ripple' Error (2022 Metro Ring)
DWDM channels showed unequal power levels after attenuation, causing bit errors on outer channels.
Cheap attenuators had high wavelength dependency (±1.5dB variance across C-Band).
Replaced with Telhua 'Flat-Response' doped-fiber attenuators (variance <0.3dB).
All 80 channels balanced within ±0.5dB specs (Tracking: EU-DWDM-2022).
Core Lesson:In DWDM systems, attenuation flatness is as critical as the dB value.
When NOT to Choose This Product
Standard consumer FTTH links (>10km)
Most FTTH links are already 'budget-constrained'; adding an attenuator will likely push the signal below the sensitivity threshold.
Recommendation
Only use attenuators if a power meter confirms the signal is > -5dBm at the ONT.
Engineering & Deployment FAQs
When is 'too much power' a problem for my network?
When the optical power exceeds the receiver's 'saturation point,' causing bit errors or hardware damage.
Why does Telhua use Doped-Fiber instead of Air-Gap technology?
Doped-fiber is more stable and has much lower back-reflection (Return Loss).
Can I use an attenuator as a termination load?
Yes, but ensure the connector end-face is protected from dust.
