Fiber Optic Adapters - SC, LC, FC, ST Couplers
Zirconia ceramic Fiber Optic Adapters (SC/LC/FC/ST) guaranteed for 500+ mating cycles. <0.2dB loss for critical networks. In stock for immediate shipping.

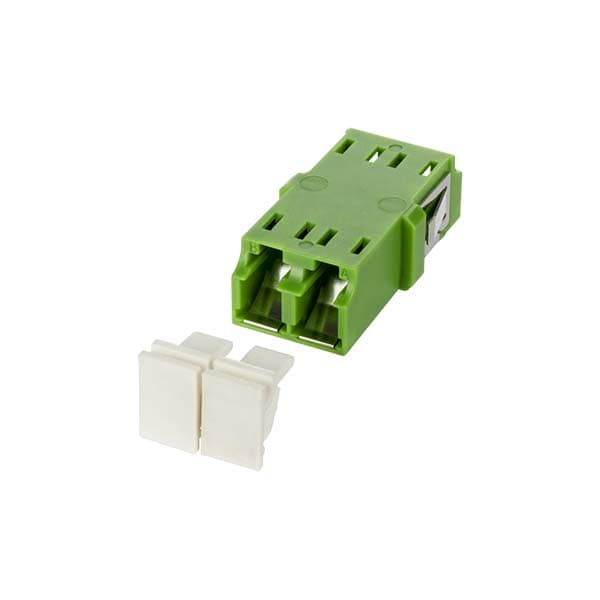

LC Duplex Adapter with Inner Shutter
LC Duplex Adapter with Inner Shutter includes a convenient hands-free mechanism that eliminates dust particles from entering the connector.
View Details

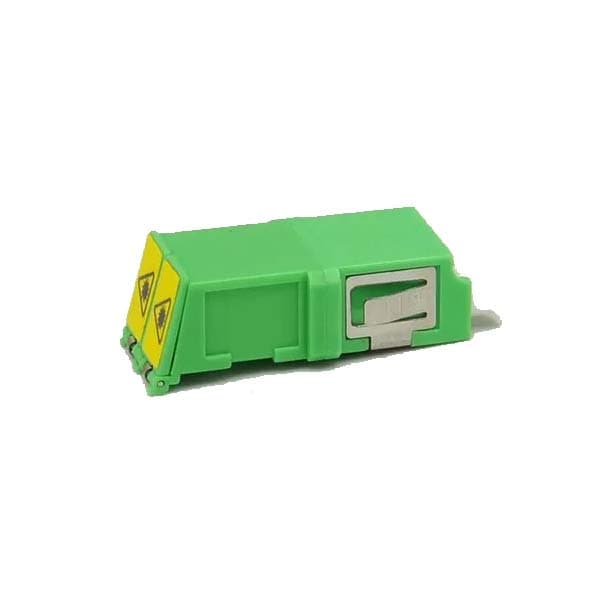

LC Duplex Adapter with Outer Shutter
LC Duplex Adapter with outer Shutter includes a convenient hands-free mechanism that eliminates dust particles from entering the connector.
View Details

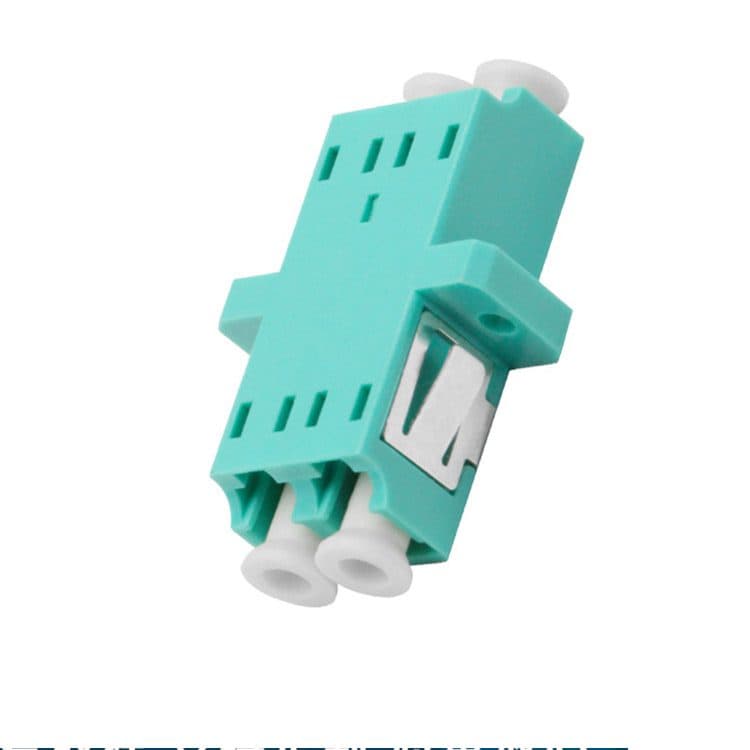

LC Duplex Aqua Adapter with Flange
LC Duplex Aqua Adapter with Flange is the perfect solution for your connection needs. Featuring Zirconia Sleeves and SC footprint profile.
View Details

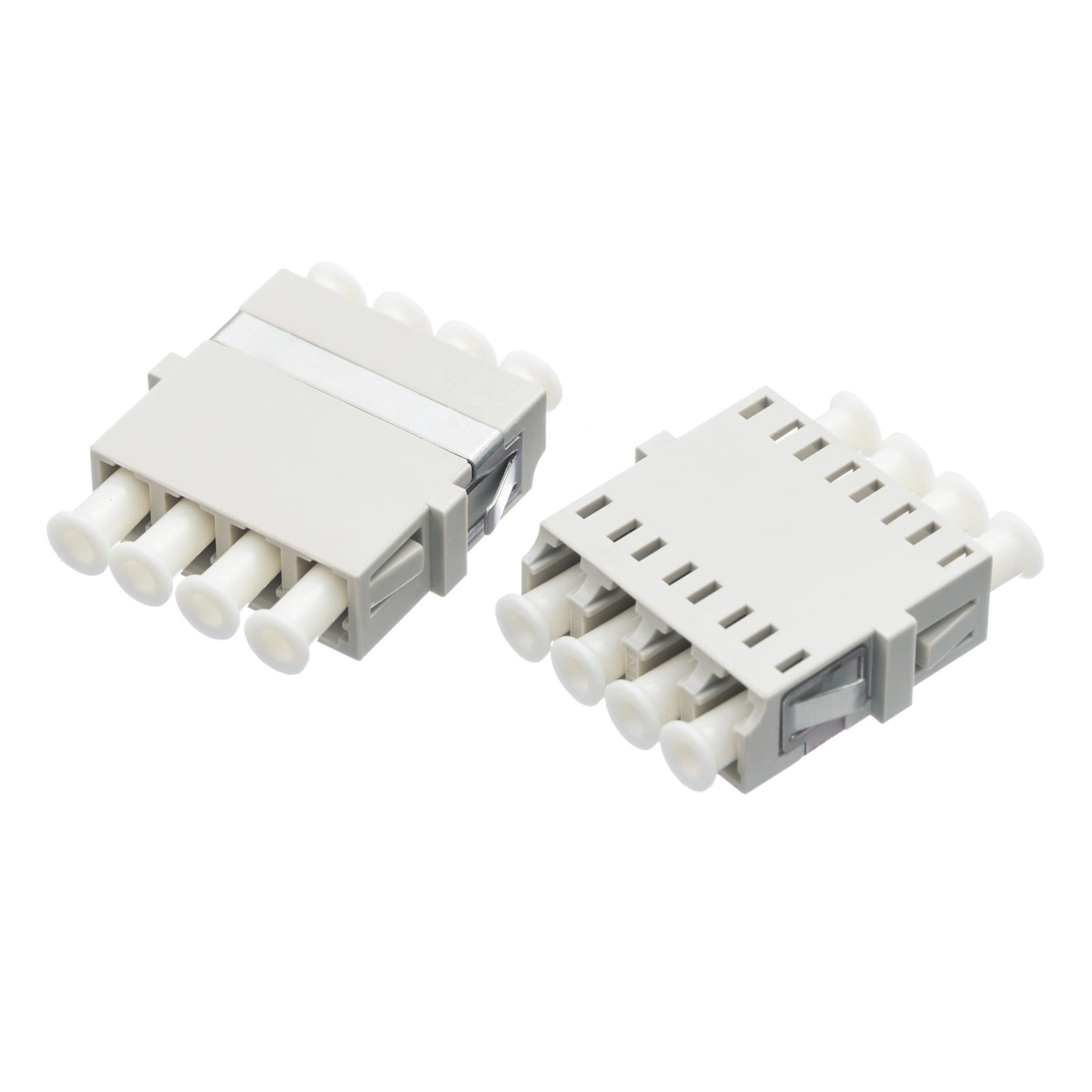

LC UPC Multi Mode Quad Fiber Optical Adapter
LC UPC Multi Mode Quad Fiber Optical Adapter is the perfect solution for your connection needs. Featuring Zirconia Sleeves and SC footprint profile.
View Details

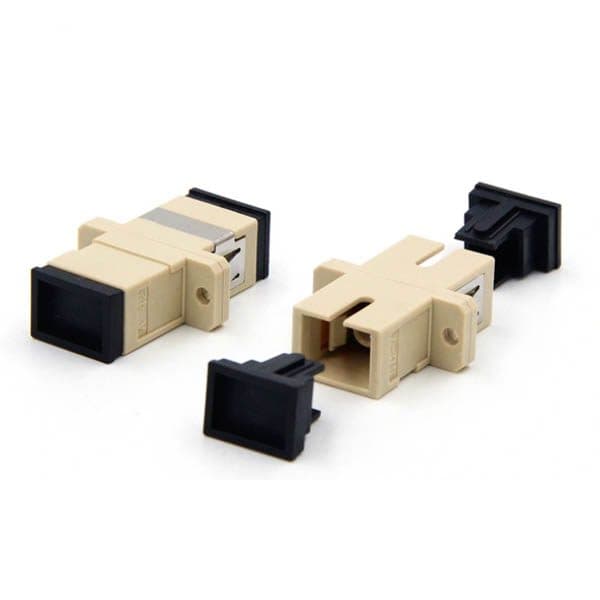

Multimode Sc Fiber Optic Adapter
Multimode Sc Fiber Optic Adapter is the perfect solution for your connection needs. Featuring Zirconia Sleeves and SC footprint profile.
View Details
SC Adapter with metal shutter
SC Adapter With Metal Shutter is the perfect solution for your connection needs. Featuring Zirconia Sleeves and SC footprint profile.
View Details

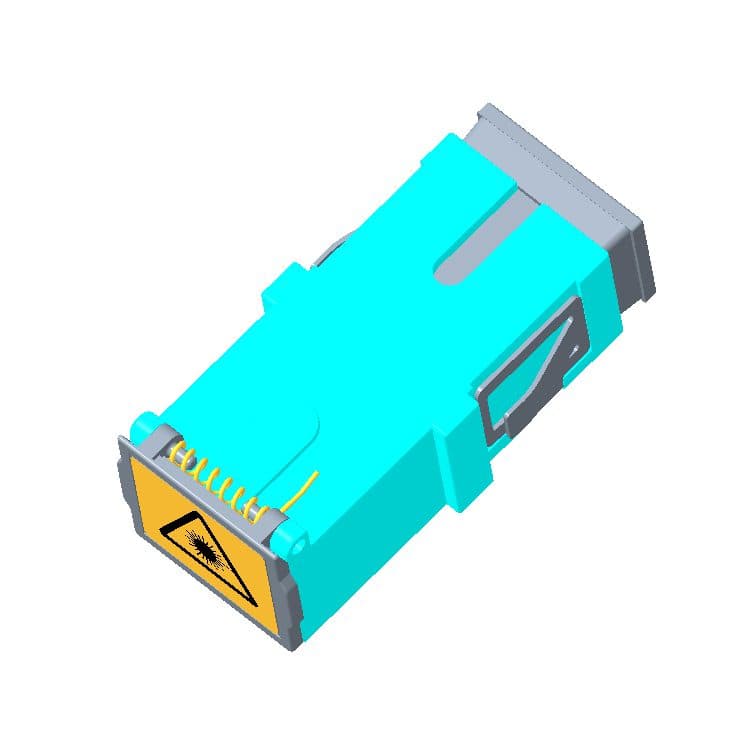

sc adapter with shutter
Telhua supplies sc adapter with shutter,SC optical adapter is of flange type, single mode adapters are with zirconia sleeve .
View Details
Sc Apc Simplex Adapter with Shutter
Sc Apc Simplex Adapter with Shutter is the perfect solution for your connection needs. Featuring Zirconia Sleeves and SC footprint profile.
View Details

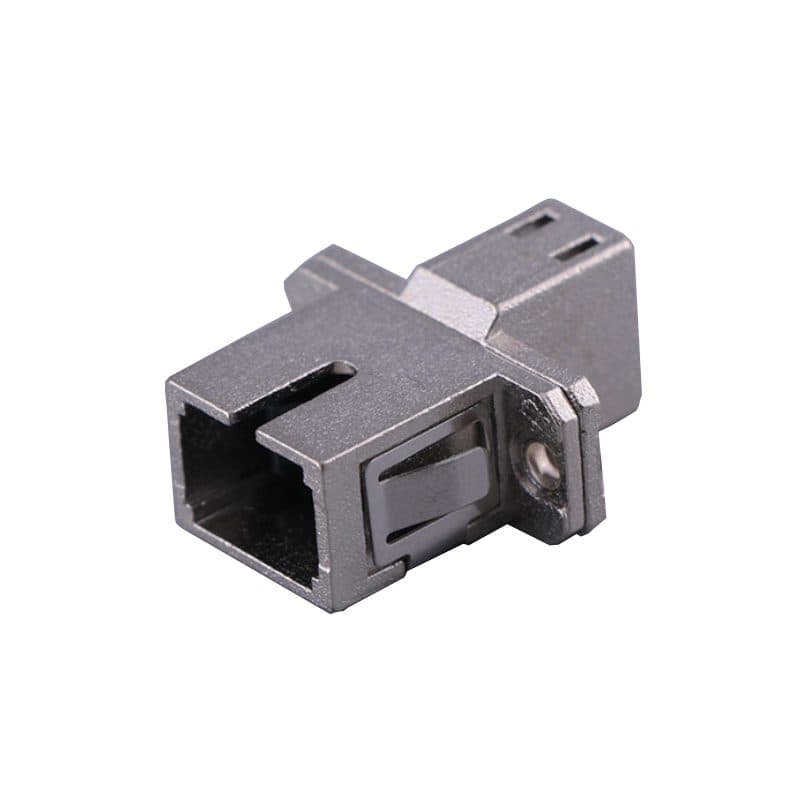

SC female to lc female hybrid fiber optic adapter
The SC female to lc female hybrid fiber optic adapter is a top quality product that enables Fcables to be connected.
View Details

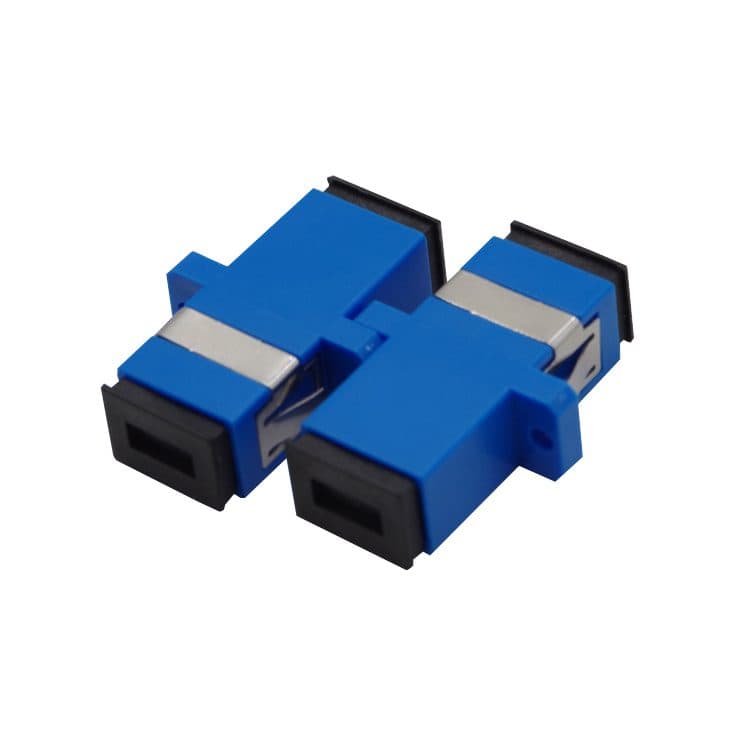

SC Fiber Optic Adapter
The SC Fiber Optic Adapter is a versatile and easy-to-use tool that makes connecting fiber optic cables quick and simple.
View Details

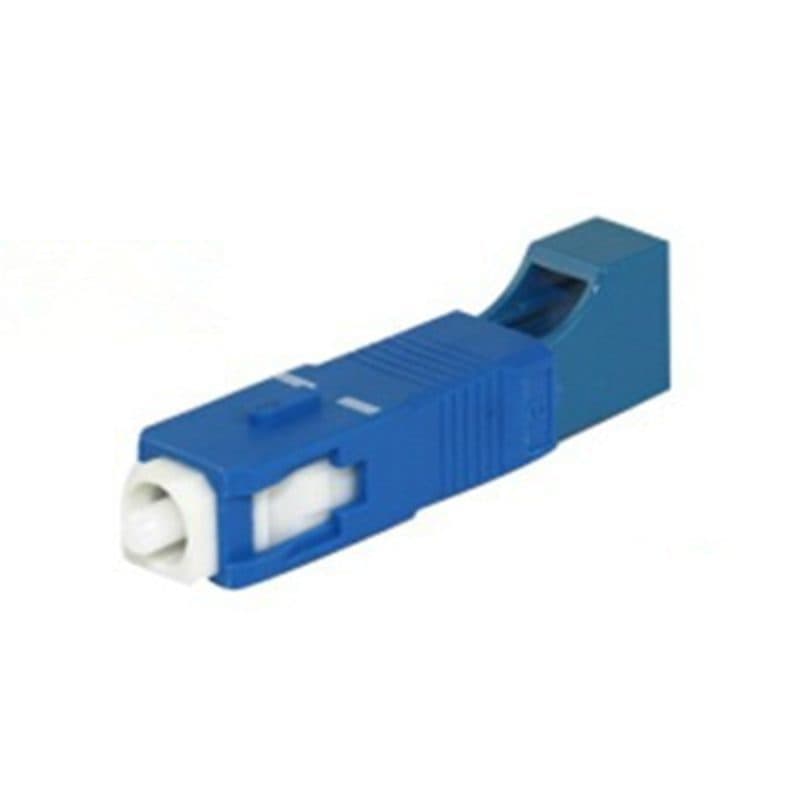

SC male to lc female hybrid fiber optic adapter
SC male to lc female hybrid fiber optic adapter usually use sleeves to precisely connect two-end optical fiber connectors
View Details

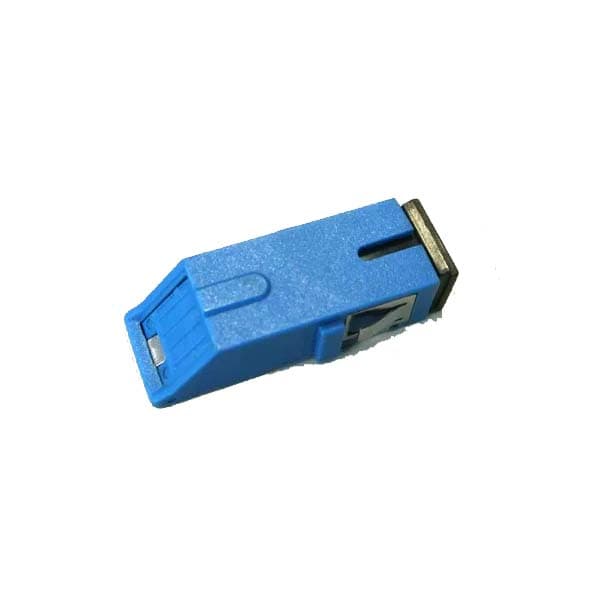

SC Simplex Adapter with Outer Shutter
SC Simplex Adapter with Outer Shutter is the perfect solution for your connection needs. Featuring Zirconia Sleeves and SC footprint profile.
View DetailsLessons from Our Mistakes
The 2021 Qatar 5G Core Site Failure
A major 5G hub experienced intermittent signal drops across 40% of its ports within 6 months of launch.
High-velocity AC units were blowing fine desert sand into standard open-port adapters.
Replaced all standard LC adapters with Telhua 'Internal Shutter' adapters that seal the port when no patch cord is present.
Signal stability restored to 100%; zero cleaning required since the upgrade (Tracking: QA-DOH-5G-2021).
Core Lesson:In dusty or high-airflow environments, 'passive' protection is better than technician 'discipline'.
The 'Loose Nut' Vibration Issue (2019 Rail Project)
High-speed rail signaling links showed intermittent loss during train passage.
Adapter mounting screws were not torque-checked; vibration loosened the adapters, causing ferrule misalignment.
Switched to 'Snap-Lock' adapters with an additional retaining clip and mandated torque verification.
Zero signal fluctuation recorded at 300km/h train speeds (Tracking: EU-RAIL-2019).
Core Lesson:In high-vibration environments, the mounting mechanism is as important as the sleeve.
Industry Reality Check
The 'Dust Cap' Trap
"Most technicians leave dust caps off during installation 'to save time.' Our 2022 Qatar 5G site audit revealed that an open adapter in a construction environment loses 1.2dB of signal within just 4 hours due to airborne particulates. We've introduced 'Auto-Shutter' adapters to solve this human-error factor (Source: 2022 Middle East 5G Audit, Tracking: ME-5G-AUDIT-2022)."
Technical Specifications
Explore the comprehensive technical specifications for our Fiber Optic Adapters - SC, LC, FC, ST Couplers. As a leading manufacturer of fiber optic components, Telhua ensures that every Fiber Optic Adapters - SC, LC, FC, ST Couplers meets rigorous telecommunications standards(including ISO 9001:2015, RoHS, UL94-V0, Telcordia GR-326). Designed for high-density FTTx, data center, and 5G networks, our Fiber Optic Adapters - SC, LC, FC, ST Couplers solutions offer superior durability and signal integrity. Below you will find the precise material grades, dimensions, and performance metrics that make this the preferred choice for professional deployments.
| Specification | Value |
|---|---|
| Sleeve Material | Zirconia Ceramic (High-Precision) |
| Insertion Loss | ≤ 0.15dB (Typical 0.08dB) |
| Flammability | UL94-V0 Rated |
Engineering Insights
Telhua's fiber optic adapters are the precision-engineered bridges of your network. By utilizing high-purity zirconia ceramic and UL94-V0 flame-retardant polymers, we ensure that every connection is as stable and safe as a factory termination.
Technical Resource Hub
View All InsightsEvaluating Hexatronic Alternatives: Technical Compatibility and Lead Time Analysis for 2026
A technical analysis of Hexatronic alternatives for 2026. Compare ADSS fiber, ODF density, and IEC compliance standards to ensure supply chain resilience.
Fiber distribution Hub basic knowledge
As more requiements of high speeds is coming, multiple service operators are looking for ways to increase their bandwidth for subscribers. To accomplish this task, engineers need cost-efficient and efficient innovations. As one solution, a fiber distribution hub can be deployed – allowing 5G and other technologies to bring that much needed access closer to … Fiber distribution Hub basic knowledge Read More »
Fiber Optic Product Tarrif Code HS code
FIBER OPTIC PATCH CORD Tarrif code / HS code : 85447000 FIBER OPTIC ADAPTER Tarrif code / HS code : 85369019 FIBER SPLICE SLEEVE Tarrif code / HS code : 85389019 FIBER PROTECT TUBE Tarrif code / HS code : 39173100 FIBER OPTIC PIGTAIL Tarrif code / HS code : 85447700
Need Technical Documentation?
Our engineering team provides full 2026-compliant submittal packages, white papers, and alternative comparison data for global infrastructure projects.
Performance Comparison
| Parameter | Telhua Standard | Industry Average |
|---|---|---|
| Sleeve Material | Zirconia Ceramic | Phosphor Bronze |
| Mating Cycles | > 1000 (0.15dB) | < 500 (0.5dB) |
| Flammability | UL94-V0 | Unrated |
| Centering | High Precision | Standard |
* Comparison data based on internal testing vs. standard market specifications.
When NOT to Choose This Product
Temporary outdoor testing without enclosure
Adapters are not IP-rated; moisture ingress between the sleeve and ferrule will cause signal fluctuations.
Recommendation
Always use IP67/68 hardened connectors for exposed outdoor testing.
Installation Protocol
Adapter Handling & Hygiene
Keep dust caps on until the exact moment of connection.
Inspect the sleeve for debris using a fiber scope if available.
Align the connector keyway with the adapter slot (listen for the 'click').
Ensure the adapter is securely mounted in the panel to prevent 'piston' movement during mating.
A loose adapter can cause 0.5dB variance during vibration.
Engineering & Deployment FAQs
Why do cheap adapters with plastic or bronze sleeves fail after 50-100 matings?
Friction and thermal expansion cause alignment drift in low-grade materials.
Are Telhua adapters UL94-V0 fire rated?
Yes, every adapter housing is made from flame-retardant PBT or PEI material.
Can I use Single-mode adapters for Multimode fiber?
Yes, but it's cost-inefficient and not the other way around.
