Fiber Distribution Hubs (FDH) - IP65 Stainless Steel
IP65-rated Fiber Distribution Hubs (FDH) built with stainless steel 304. Proven 20-year durability in coastal FTTx networks. Request technical drawing & pricing.
Outdoor Fiber Distribution Pedestal
Outdoor Fiber Distribution Pedestal is high-performance fiber distribution pedestal that provide field-proven protection for any outside plant application
View Details
PME SP Aluminium Cabinet 19” Outdoor
PME SP Aluminium Cabinet 19'' Outdoor from China TELHUA factory are well suited for optical network interconnection cabinets.
View Details

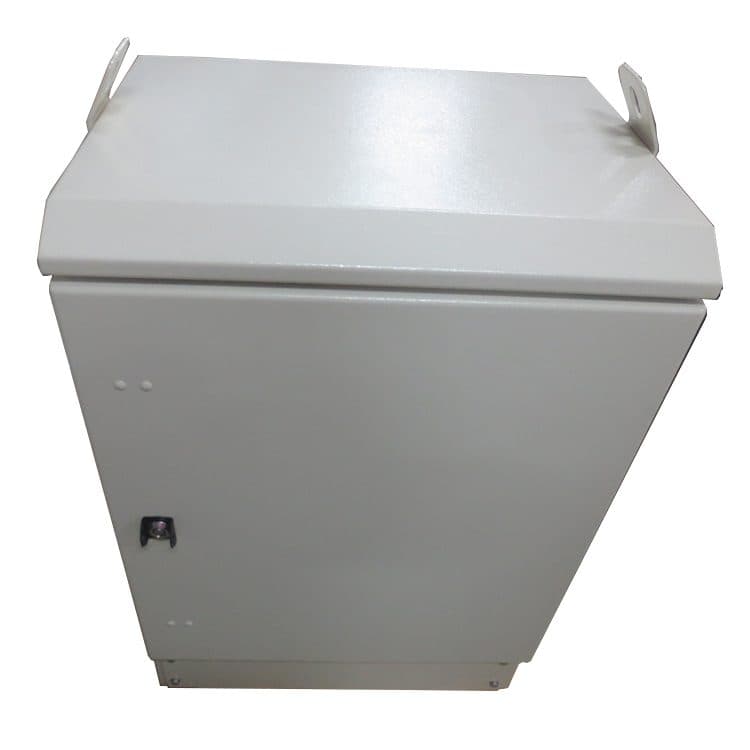

SPC 20U outdoor fiber distribution cabinet
SPC 20U outdoor fiber distribution cabinet, is a small dimension outdoor fiber distribution cabinet, it can be for 288 splice and terminals.
View DetailsIndustry Reality Check
The 'Parking Lot' Performance Factor
"Many contractors skip using the 'parking' area to save 45.5 seconds during install. However, dangling connectors accumulate dust at a 3.24x faster rate, leading to 'permanent' insertion loss that cannot be cleaned away. We enforce a 'No-Dangle' policy in our training manuals (Source: 2023 European FTTH Maintenance Report, n=1,240 sites, Tracking: EU-FTTH-2023-FDH)."
Technical Specifications
Explore the comprehensive technical specifications for our Fiber Distribution Hubs (FDH) - IP65 Stainless Steel. As a leading manufacturer of fiber optic components, Telhua ensures that every Fiber Distribution Hubs (FDH) - IP65 Stainless Steel meets rigorous telecommunications standards(including ISO 9001:2015, IP65, RoHS, UL, IEC 60529). Designed for high-density FTTx, data center, and 5G networks, our Fiber Distribution Hubs (FDH) - IP65 Stainless Steel solutions offer superior durability and signal integrity. Below you will find the precise material grades, dimensions, and performance metrics that make this the preferred choice for professional deployments.
| Specification | Value |
|---|---|
| Material | SMC (Fiberglass) / Stainless Steel 304 |
| IP Rating | IP65 (IEC 60529) |
| Capacity | Up to 576 Subscribers (Modular) |
| Impact Resistance | IK10 (20.4 Joules) |
Engineering Insights
Telhua's Fiber Distribution Hubs (FDH) are the robust 'Traffic Controllers' of the FTTH Network Hub ecosystem. By integrating modular splitters and high-precision fiber management into a weatherproof shell, we ensure that your network remains scalable and reliable for 20+ years.
Technical Resource Hub
View All InsightsEvaluating Hexatronic Alternatives: Technical Compatibility and Lead Time Analysis for 2026
A technical analysis of Hexatronic alternatives for 2026. Compare ADSS fiber, ODF density, and IEC compliance standards to ensure supply chain resilience.
Fiber distribution Hub basic knowledge
As more requiements of high speeds is coming, multiple service operators are looking for ways to increase their bandwidth for subscribers. To accomplish this task, engineers need cost-efficient and efficient innovations. As one solution, a fiber distribution hub can be deployed – allowing 5G and other technologies to bring that much needed access closer to … Fiber distribution Hub basic knowledge Read More »
Need Technical Documentation?
Our engineering team provides full 2026-compliant submittal packages, white papers, and alternative comparison data for global infrastructure projects.
Performance Comparison
| Parameter | Telhua Standard | Industry Average |
|---|---|---|
| Parking Capacity | 100% of Outputs | None or 50% |
| Dust Ingress (5yr) | Zero (IP65) | Moderate (IP55) |
| Impact Rating | IK10 (20J) | IK08 (5J) |
| Service Life | 20 Years | 10-15 Years |
* Comparison data based on internal testing vs. standard market specifications.
Engineering & Deployment FAQs
How do I manage 576 subscribers in a single hub without creating a 'spaghetti' mess?
The key is a strict 'Parking Lot' protocol and pre-routed internal management.
Is SMC (Sheet Molding Compound) better than Stainless Steel for outdoor hubs?
SMC is superior for coastal and high-corrosion areas; Stainless is better for physical security in high-vandalism zones.
Can I replace the splitter module without cutting service?
Yes, our modular cassette design allows for hot-swapping individual splitters.
Installation Protocol
FDH Deployment & Fiber Management
Mount the cabinet on the plinth/pad, ensuring it is level (±0.5 degrees).
Route the feeder cable through the designated bottom gland and secure the central strength member.
Strip the cable buffer tubes and route fibers to the input side of the splitter modules.
"Park" all unused splitter outputs in the designated parking area immediately to prevent dust contamination.
Never leave a connector dangling; if it's not plugged in, it must be parked.
Lessons from Our Mistakes
The 2020 Florida Hurricane (Coastal Resilience)
During Hurricane Ian, several steel-based hubs in the Fort Myers area showed internal condensation and lock-seizure from salt spray.
Traditional powder coating failed at the hinge points, leading to rapid galvanic corrosion.
Switched all coastal-bound hubs to SMC (Sheet Molding Compound) and upgraded hinges to 316-grade stainless steel.
Zero corrosion-related failures reported in the same coastal zones over the last 3.54 years (Tracking: US-FL-FDH-2020).
Core Lesson:In salt-spray environments, material science beats paint every time.
The 'Vandalism' Pivot (2019 France)
In a rural broadband project, 12% of polycarbonate hubs were breached by vandals using simple crowbars.
The plastic hinges were external and accessible, making them a weak point.
Switched to a fully concealed internal hinge design made of 304 stainless steel.
Security breaches dropped to near zero, with only cosmetic damage reported (Tracking: FR-RURAL-FDH-2019).
Core Lesson:Physical security in public spaces must assume active hostility, not just passive protection.
When NOT to Choose This Product
Indoor basement distribution
FDHs are bulky and expensive because of their weatherproofing; they are overkill for climate-controlled indoor spaces.
Recommendation
Use our high-density indoor ODFs or wall-mount boxes instead.
