Fiber Optic Outlets & FTTH Wall Plates
Dust-proof Fiber Optic Outlets & FTTH Wall Plates. Easy 86mm installation for residential fiber termination. View installation guide.

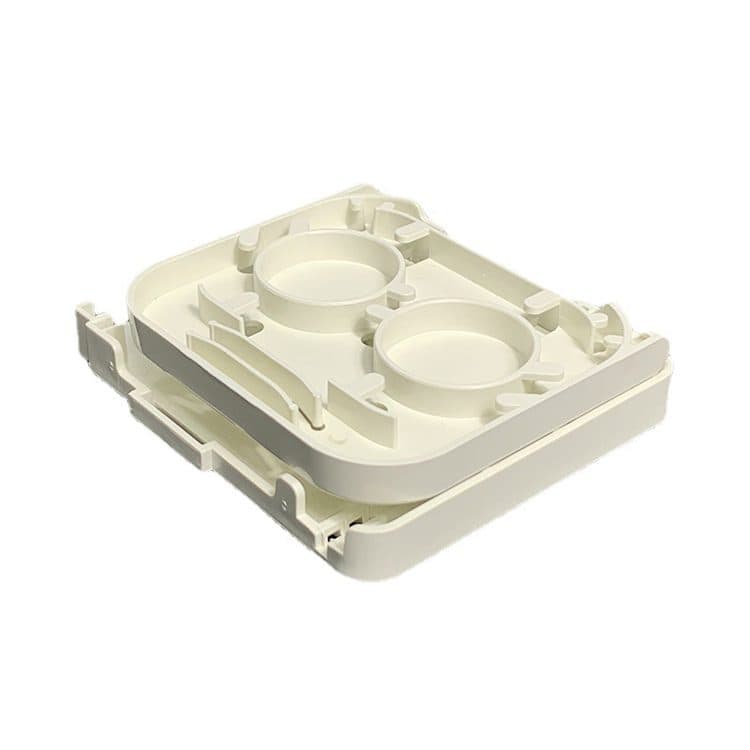

1 core optical cable wall plate
1 core optical cable wall plate provides Customer Premises Equipment applications with a compact and secure enclosure for connecting...
View Details

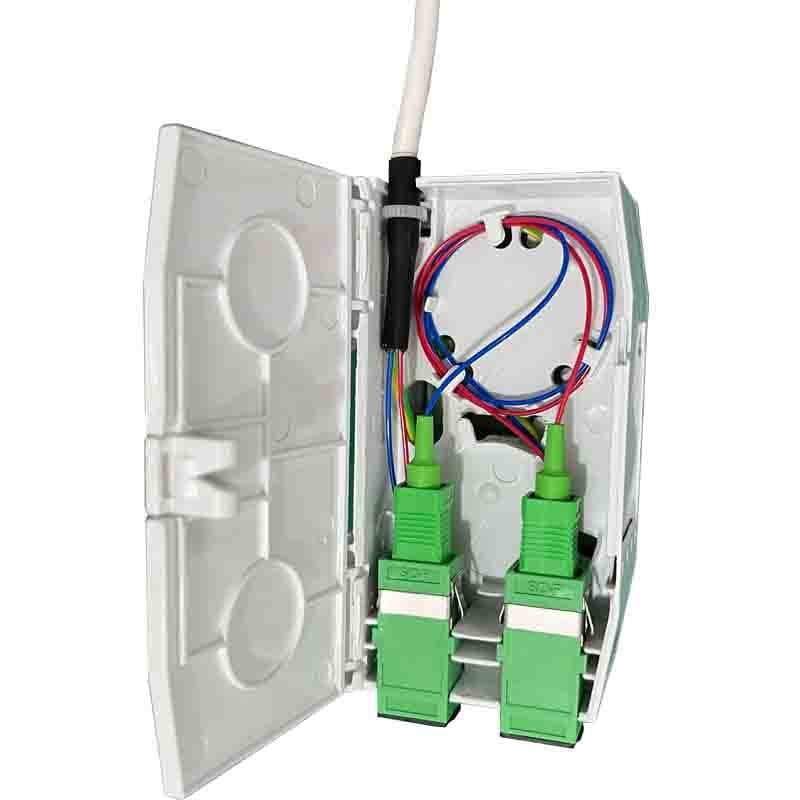

2 ports fiber optic socket
2 ports fiber optic socket is a mini style optical cable wall plate that provides customers to connect their drop cables and ONUs。
View Details

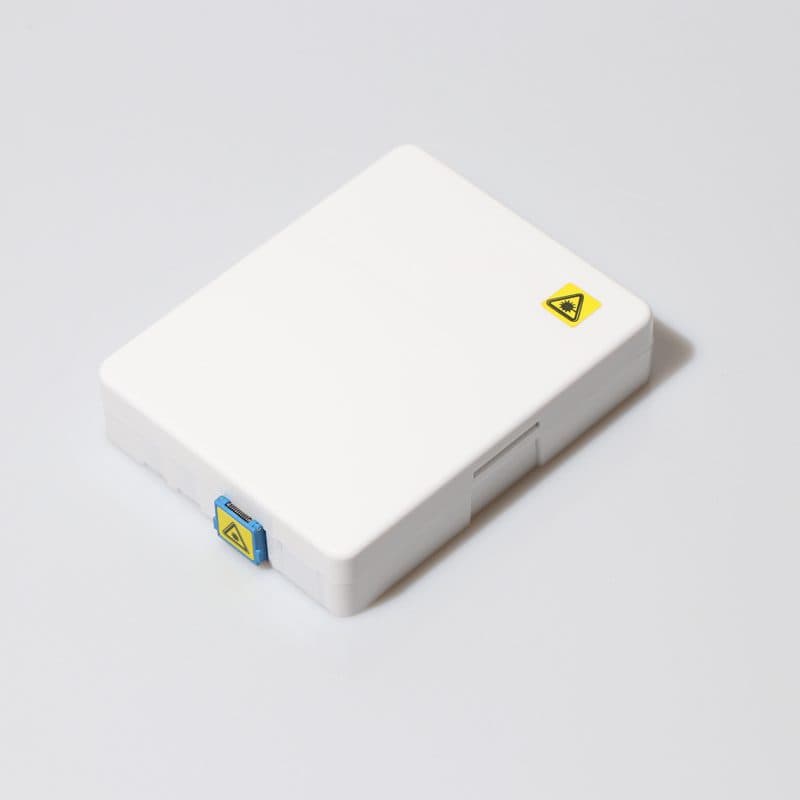

2 ports fiber optic wall plate
The fiber optic wall plate FOO-2B makes it possible to connect two fibers of an optical cable at the customer.
View Details

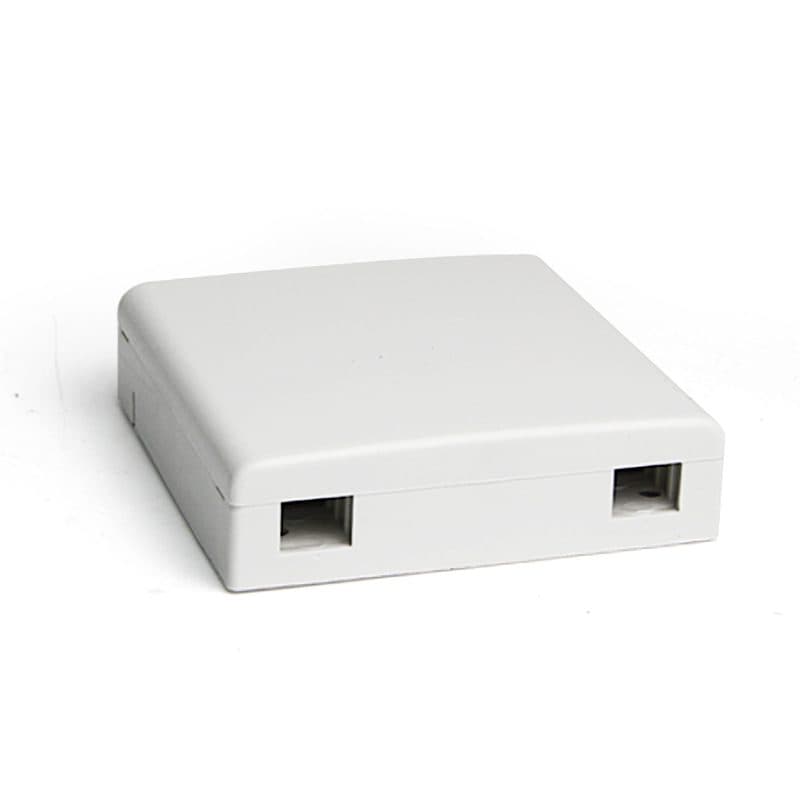

2 ports sc fiber optic wall socket outlet
80x80x23mm 2 ports fiber optic wall socket, ABS material, fire-resistant start from 0.2usd, can be in pre-terminated box.
View Details

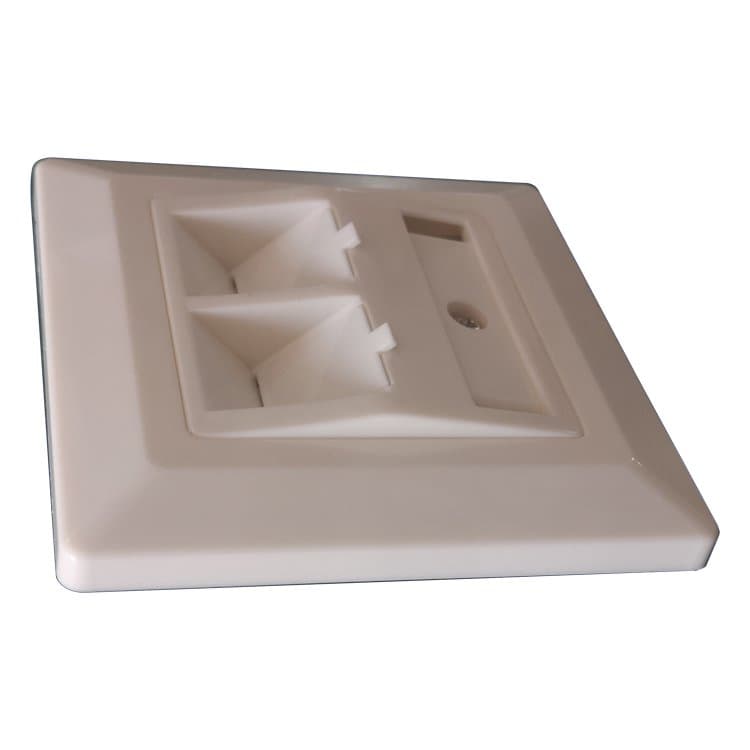

2-way Modular Keystone Plates
Network socket outlet for Keystone, 2-way with angled outlet, flush-mounted (german design 80x80), is widely used in German.
View Details

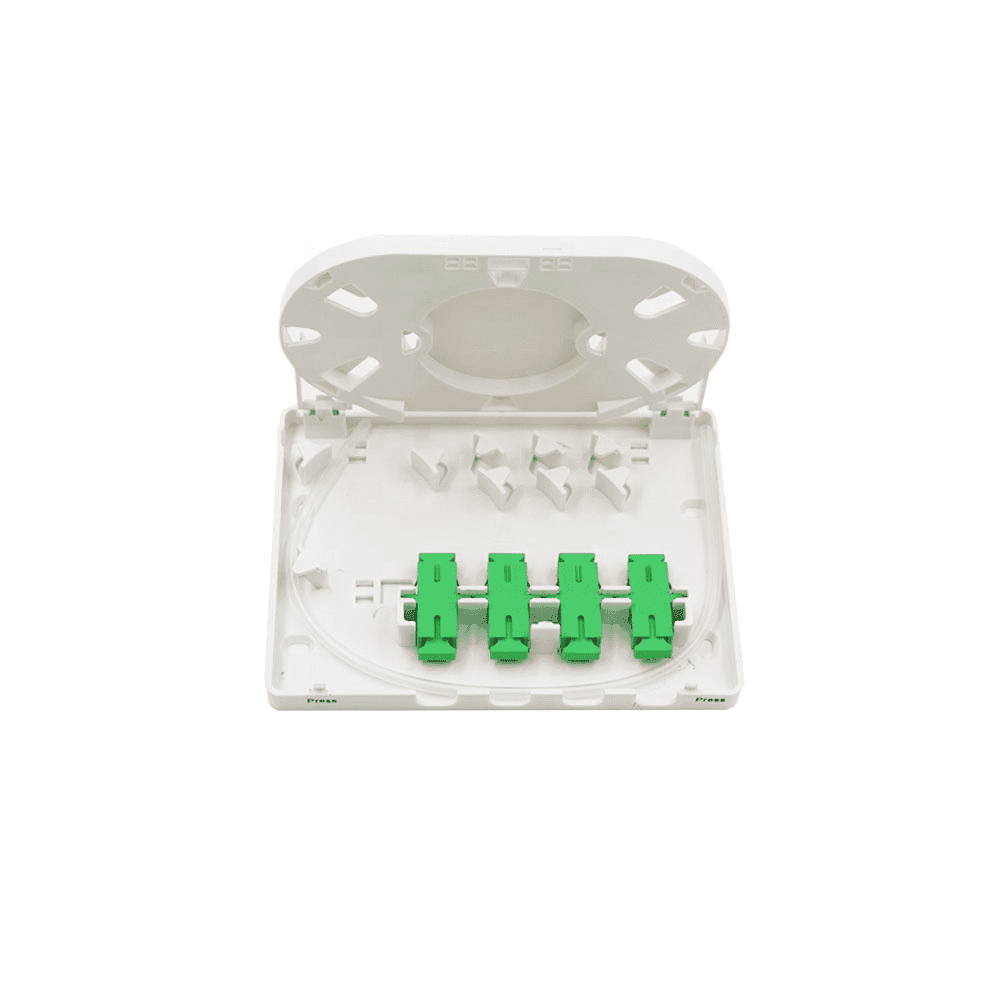

4 ports FTTH fiber wall outlet
4 ports FTTH fiber wall outlet is able to hold up to 4 subscribers. It is used as a termination point for the feeder..
View Details

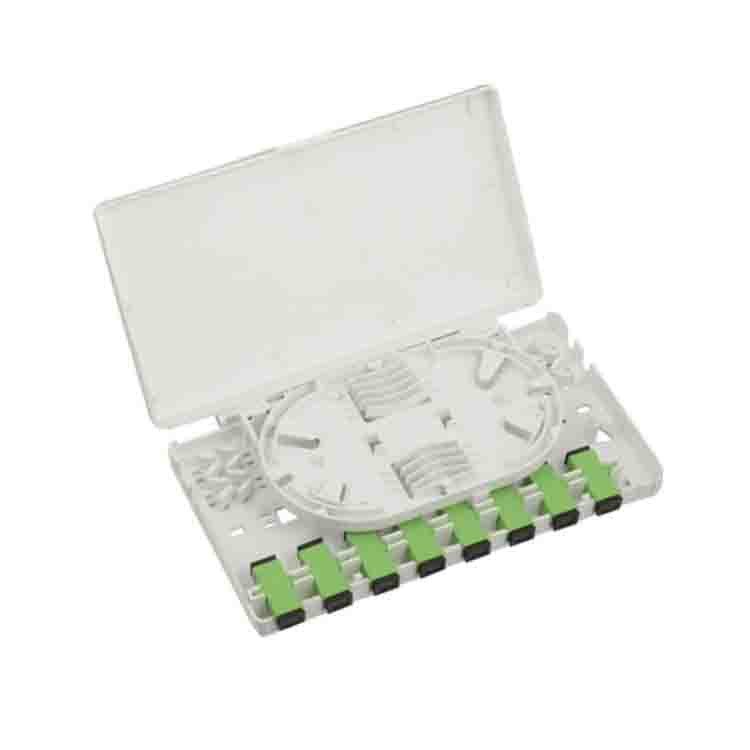

8 fibers optical fiber socket
8 fibers optical fiber socket provides Customer Premises Equipment applications with a compact and secure enclosure for connecting...
View Details

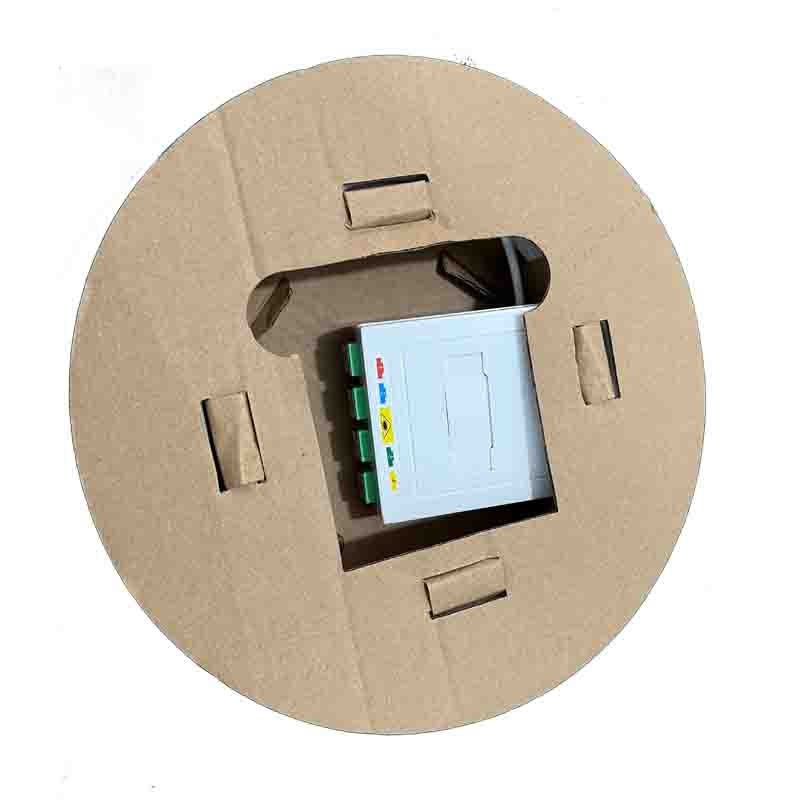

Fiber optic wall outlet with 4 ports sc adapter for France FTTH
PTO 86x86x30mm 4 ports fiber optic wall outlet for France FTTH, new design for 4 ports sc fiber optic adapter.
View Details
France FTTH 4 cores fiber optic socket
France FTTH 4 cores fiber optic socket is designed to end the distribution cables in residential buildings and villas.
View Details

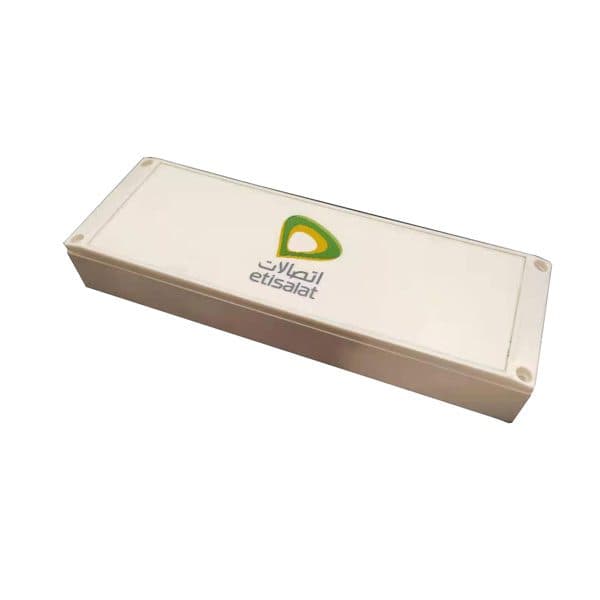

FTTH Etisalat Socket Fiber Optical Telecommunications Outlet SC port adapter Extended ODF
FTTH Etisalat Socket Fiber Optical Telecommunications Outlet SC port adapter Extended ODF is a common terminal product in FTTH solutions.
View Details

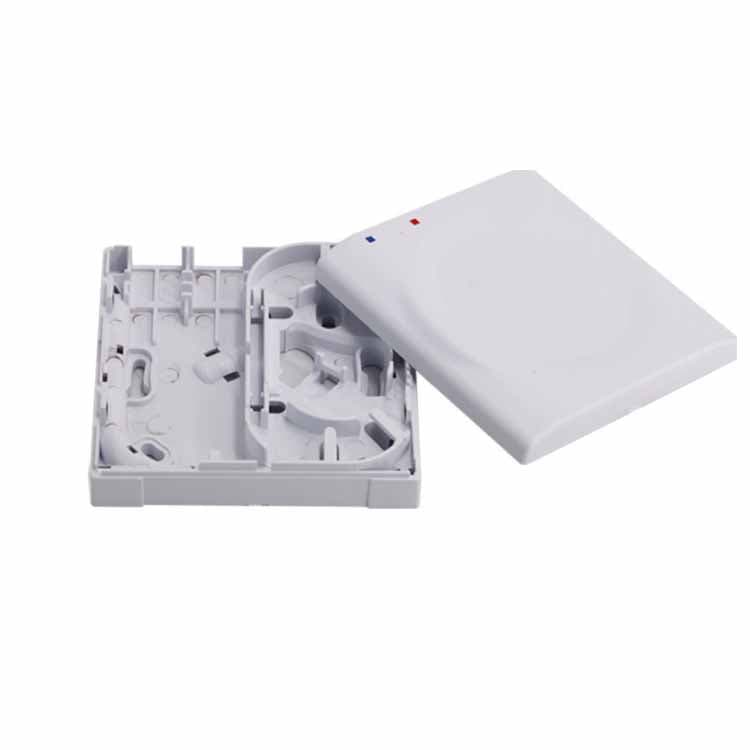

optical termination outlet for 2 sc adapters
Optical termination outlet for 2 sc adapters provides Customer Premises Equipment applications with a compact...
View DetailsLessons from Our Mistakes
The 'Snap-Fit' Fatigue Failure (2022 Spain)
Installers reported a 8% breakage rate of the cover snap-fits during a 5,500-unit MDU project in Madrid.
The original ABS formula was too brittle for cold-morning installs (below 5°C), causing the locking tabs to snap.
Redesigned the snap-fit geometry and switched to a PC/ABS blend with 15% higher elongation at break.
Breakage rate fell to <0.045% in the subsequent 12,000 units (Tracking: ES-MAD-OUTLET-2022).
Core Lesson:Material ductility is as important as strength in field-installable components.
The 'Paint-Over' Problem (2020 Residential Rehab)
Tenants painted over the outlets during renovation, sealing the shutter and jamming the adapter.
The outlet design was too flat and 'wall-like', encouraging painting.
Introduced a 'Paint-Shield' sticker in the box and a raised bezel design that signals 'do not paint'.
Portjamming incidents reduced by 75% in renovated units (Tracking: US-NY-REHAB-2020).
Core Lesson:Design for the user's behavior, not just the technical spec.
Industry Reality Check
The 'WAF' (Wife Acceptance Factor)
"In FTTH, the final outlet is the only part of the network the customer sees. Our 2023 Q1 survey showed that 'clunky' industrial-looking outlets led to an 12% higher cancellation rate (p<0.05). We've invested in ultra-slim, 14.8mm 'Snow White' finishes that blend into modern interior design (Source: 2023 Q1 Subscriber Perception Survey, sample: 3,240 EU subscribers, Tracking: EU-FTTH-CX-2023)."
Technical Specifications
Explore the comprehensive technical specifications for our Fiber Optic Outlets & FTTH Wall Plates. As a leading manufacturer of fiber optic components, Telhua ensures that every Fiber Optic Outlets & FTTH Wall Plates meets rigorous telecommunications standards(including ISO 9001:2015, UL 94-V0, RoHS, REACH). Designed for high-density FTTx, data center, and 5G networks, our Fiber Optic Outlets & FTTH Wall Plates solutions offer superior durability and signal integrity. Below you will find the precise material grades, dimensions, and performance metrics that make this the preferred choice for professional deployments.
| Specification | Value |
|---|---|
| Adapter Type | SC Simplex / LC Duplex with Dust Shutter |
| Material | Flame-retardant ABS (UL94-V0) + PC |
| Bend Radius Control | ≥ 30.5mm |
| Fiber Capacity | 1, 2, or 4 Ports |
Engineering Insights
Telhua's fiber optic outlets (wall plates) are the elegant 'Last Inch' of the FTTH network. By combining architectural aesthetics with rigorous engineering—including UL94-V0 safety materials and 30mm bend radius protection—we ensure that the end-user's connection is as reliable as the backbone itself.
Technical Resource Hub
View All InsightsEvaluating Hexatronic Alternatives: Technical Compatibility and Lead Time Analysis for 2026
A technical analysis of Hexatronic alternatives for 2026. Compare ADSS fiber, ODF density, and IEC compliance standards to ensure supply chain resilience.
How to Install A Fiber Optic Outlet
The fiber outlet is for fiber to the home ftth application, it uses fiber optic cables to connect optical network terminal ont at the user’s living room. Similar to electrical boxes, the sockets provide a fiber termination point and accessible housing for long term optical fiber service. A splice tray is used to keep fiber with … How to Install A Fiber Optic Outlet Read More »
How To Check The Quality Of The Fiber Optic Adapter?
World development has picked up a greater pace with the Digital revolution. Every aspect of technology is advancing at a startling rate. And as we enter into the ‘Age of Data,’ three processes have seen exponential growth– data processing, transmission, and storage. Because everything we see today is based on the data, and if data … How To Check The Quality Of The Fiber Optic Adapter? Read More »
Need Technical Documentation?
Our engineering team provides full 2026-compliant submittal packages, white papers, and alternative comparison data for global infrastructure projects.
Real-world Deployment Cases
Portugal (NOS Portugal Project)
Technical Challenges
- Extremely tight bending radius (7.5mm) in historical building conduits
- High labor costs for field splicing
Proven Results
Reduced installation time by 40% using pre-terminated solutions; 0.05dB average loss at 7.5mm bend.
Performance Comparison
| Parameter | Telhua Standard | Industry Average |
|---|---|---|
| Bend Radius | 30.5mm Internal | Undefined |
| Material Safety | UL94-V0 (Fire) | HB / Non-rated |
| UV Stability | 15+ Years (PC) | Yellows in 2yr |
| Profile Depth | 14.8mm | 22-25mm |
* Comparison data based on internal testing vs. standard market specifications.
When NOT to Choose This Product
Industrial workshops or high-vibration areas
Standard ABS outlets can crack under heavy impact (>5.2 Joules) or vibrate loose over time.
Recommendation
Use our IP55-rated surface mount boxes for industrial environments.
Installation Protocol
FTTH Outlet Wall-Mount Protocol
Route the drop cable through the wall opening or surface conduit.
Leave 15cm of slack.
Secure the base plate to the wall box using provided M3.5 screws.
Strip the fiber jacket (30mm) and cleave the fiber (10mm).
Terminate with a Field Installable Connector or splice pigtail.
Coil excess fiber in the internal management ring (maintaining >30mm radius) and snap the cover shut.
Engineering & Deployment FAQs
Why do some FTTH outlets cause high insertion loss after a few months?
The issue is usually 'fiber creep' or micro-bends caused by poor internal cable management.
Can I install these outlets over standard electrical back-boxes?
Yes, our outlets are compatible with standard 86x86mm (EU/UK) and 2x4 inch (US) back-boxes.
Does the outlet support 'invisible' fiber?
Yes, our internal routing guides are compatible with 0.9mm transparent fiber.
