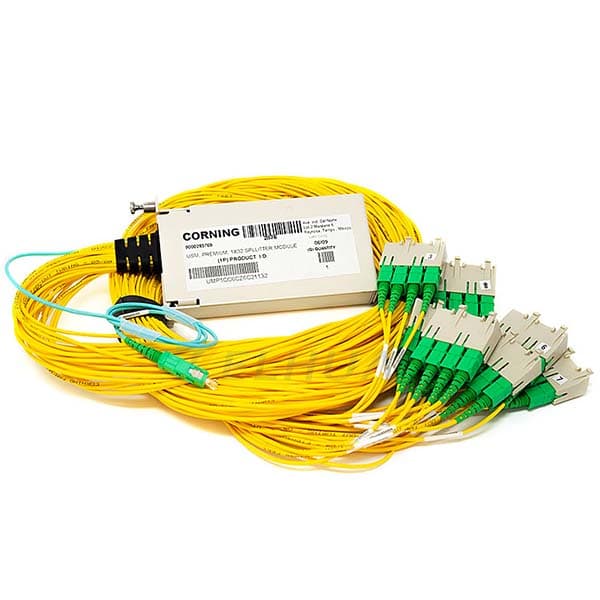

Single mode optical splitter modules TP ZN-OPL-044
June 10, 2021
| Type | 1×8 | 1×32 | 1×64 |
| Maximal dimensions (mm) | |||
| Operating wavelength bands | 1260nm to 1650nm | ||
| Characteristics of inputs and outputs | Input port – fiber optic non-connectorized pigtail; output ports – SC/APC pigtails | ||
| Insertion loss max (dB)* | 10,4 | 17 | 20,3 |
| Return loss
PN-EN 61300-3-6, method A |
≥ 55 dB
≥ 55 dB |
||
| Wavelength dependence | DIL ≤ 0.5dB | ||
| Directivity
PN-EN 61300-3-20 |
For each branch and each trunk : ≥ 45dB | ||
| Uniformity (dB) | 1 | 1,6 | 1,9 |
| Sensitivity to polarization
PN-EN 61300-3-2, method A |
DIL £ 0,4 dB | ||
| High power resistance
PN-EN 61300-2-14, method A |
Power applied → 500mW at 1550nm during 30 minutes. DIL ≤ 0.5dB | ||
| Retention of optical fibres
PN-EN 61300-2-4 |
5N applied during 60s on 250µm at 300mm from extremity of case, speed 0,5N/s. For λ = 1550nm, DIL ≤ 0.5dB | ||
| Torsion
PN-EN 61300-2-5 |
2N on 250µm at 200mm torsion of ± 180° during 25 cycles, speed 0,11N. For λ = 1550nm, DIL ≤ 0.5dB | ||
| Vibrations
PN-EN 61300-2-1 |
Number of scans 10 → 55 → 10: 15 during 30 minutes on 3axis. For λ = 1550nm, DIL ≤ 0.5dB | ||
| Drop
PN-EN 61300-2-1 |
Drop height : 1,5m ; number of drops : 5. For λ = 1550nm, DIL ≤ 0.5dB | ||
| Dry cold
PN-EN 61300-2-17 |
-25±2°C during 96h. For λ = 1550nm DIL ≤ 0.5dB, RL ≥ 55dB | ||
| Dry heat
PN-EN 61300-2-18 |
70±2°C during 96h. For λ = 1550nm, DIL ≤ 0.5dB, RL ≥ 55dB | ||
| Damp Heat
PN-EN 61300-2-19 |
40±2°C and 93% ± 2%/-3% humidity during 96h. For λ = 1550nm, DIL ≤ 0.5dB, RL ≥ 55dB | ||
| Change of temperature
PN-EN 61300-2-22 |
12 cycles -25±2°C (1h) → 70±2°C (1h). For λ = 1550nm, DIL ≤ 0.5dB, RL ≥ 55dB | ||
* without connectors; for connectorized pigtails add 0,25 dB for each connector
