Fusion Splicing Best Practices: Achieving < 0.02dB Loss in Field Deployments

Fusion splicing is the most critical step in creating a reliable fiber optic network. While modern fusion splicers are highly automated, achieving consistent ultra-low loss (below 0.02dB) requires meticulous preparation and an understanding of the mechanical stresses involved. This guide outlines the professional standards for splicing in FTTH and backbone environments.

Step 1: The 'Zero-Defect' Cleave

90% of high-loss splices are caused by poor cleaving. A cleave angle exceeding 1.0 degree will inevitably result in a bubble or mismatch during the fusion process. Telhua recommends using a precision cleaver with an automated scrap collector to ensure the fiber end-face is pristine.

Checklist for Cleaving:

• Clean the fiber with 99.9% isopropyl alcohol *after* stripping but *before* cleaving.
• Inspect the cleave angle on your splicer’s screen; if it’s >0.5°, re-cleave.
• Never touch the bare fiber after cleaning.

The Role of Protection Sleeves in Long-Term Reliability

A fusion splice is physically weak until protected by a heat-shrink sleeve. However, improper shrinking can introduce micro-bends that increase loss over time. Telhua’s stainless steel reinforced sleeves are designed to provide rigid support without compressing the fiber.

Sleeve Type	Length	Steel Rod Dia.	Best Use Case
Standard 60mm	60mm	1.2mm	Backbone / Outdoor Closures
Mini 40mm	40mm	1.0mm	High-density Splice Trays

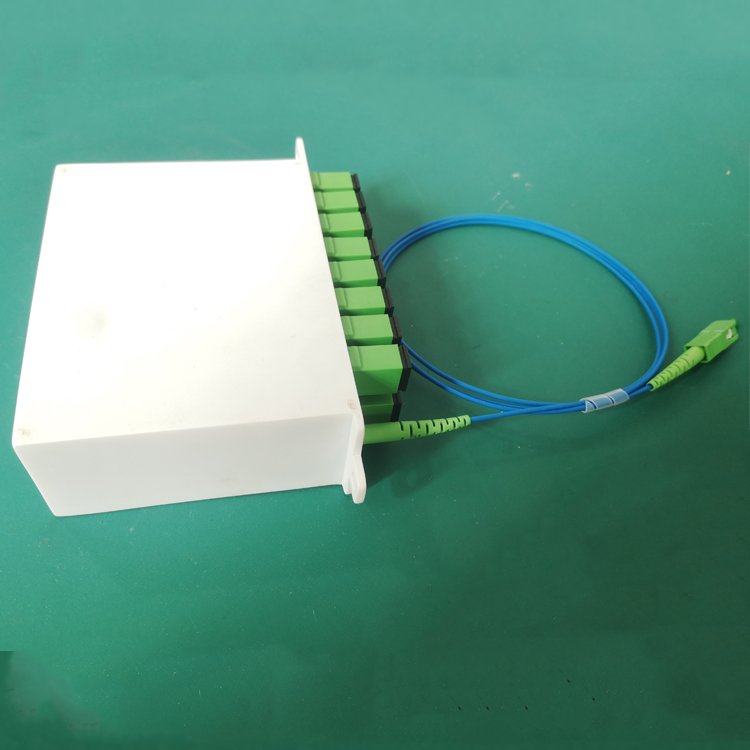

Micro 25mm	25mm	0.5mm	PLC Splitter Modules

Technical Pitfall: Fiber Mismatch (G.652 vs G.657)

In FTTH deployments, you will often splice G.652.D backbone fiber to G.657.A1/B3 drop fiber. Because the Mode Field Diameter (MFD) differs slightly, the splicer may show a higher estimated loss. Telhua engineers recommend using 'Core Alignment' splicers rather than 'Clad Alignment' for these hybrid splices to minimize the MFD mismatch effect.

Real-World Troubleshooting: The 'Black Spot' Mystery

During a 2024 deployment in Dubai, a contractor reported consistent 0.15dB losses. Upon inspection, the 'black spot' visible on the splicer camera was traced back to microscopic dust particles on the splicer's V-grooves. Regular cleaning of the V-grooves and LEDs with a fine-tipped swab is essential for maintaining sub-0.02dB performance.

Maintenance Tip: Calibrate the arc discharge daily or whenever the environment (temperature/humidity) changes significantly. This ensures the heat is perfectly tuned for the specific glass type being fused.
