Next-Generation FTTH & FTTA Deployment: Technical Best Practices for 2026

Technical Overview

Explore the latest fiber optic infrastructure standards for 2026. This guide details high-performance telecom equipment specifications, focusing on network reliability and installation efficiency. Learn how to optimize your FTTx deployment with factory-direct fiber solutions engineered for global carriers.

The shift towards high-density MDU (Multi-Dwelling Unit) and 5G small cell backhaul in 2026 has introduced significant technical challenges for field engineers. From managing grounding resistance in central offices to ensuring bending radius compliance in tight conduits, the margin for error is shrinking. This guide outlines the technical best practices for deploying robust FTTH and FTTA (Fiber-to-the-Antenna) networks using modern ODN architectures.

Critical Deployment Detail: Grounding Resistance in ODF Systems

One of the most frequently overlooked causes of signal instability in large-scale ODF (Optical Distribution Frame) installations is improper grounding. According to IEC 60364-4-41, the grounding resistance for telecom equipment racks should ideally be < 4Ω. During a recent audit of a site in Spain, Telhua engineers found that 30% of intermittent signal issues were traced back to high grounding resistance. Best Practice: Always use a dedicated earth ground tester (such as a Fluke 1625-2) rather than a standard multimeter, and ensure the ODF frame is bonded directly to the building’s main grounding busbar using at least a 16mm² copper conductor.

MDU Deployment: Managing the Bending Radius Bottleneck

In brownfield MDU projects, engineers often encounter conduits that are already 80% full, leading to aggressive cable pulling and tight turns. Standard G652D fiber pigtails can experience up to 0.5dB loss per bend at 1550nm if the radius drops below 30mm. To solve this, Telhua’s 2026 MDU portfolio utilizes G657B3 ultra-bend-insensitive fiber. This allows for a minimum bending radius of 5mm with negligible loss (< 0.1dB), making it possible to route fiber through the same tight corners as electrical wiring without compromising the signal budget.

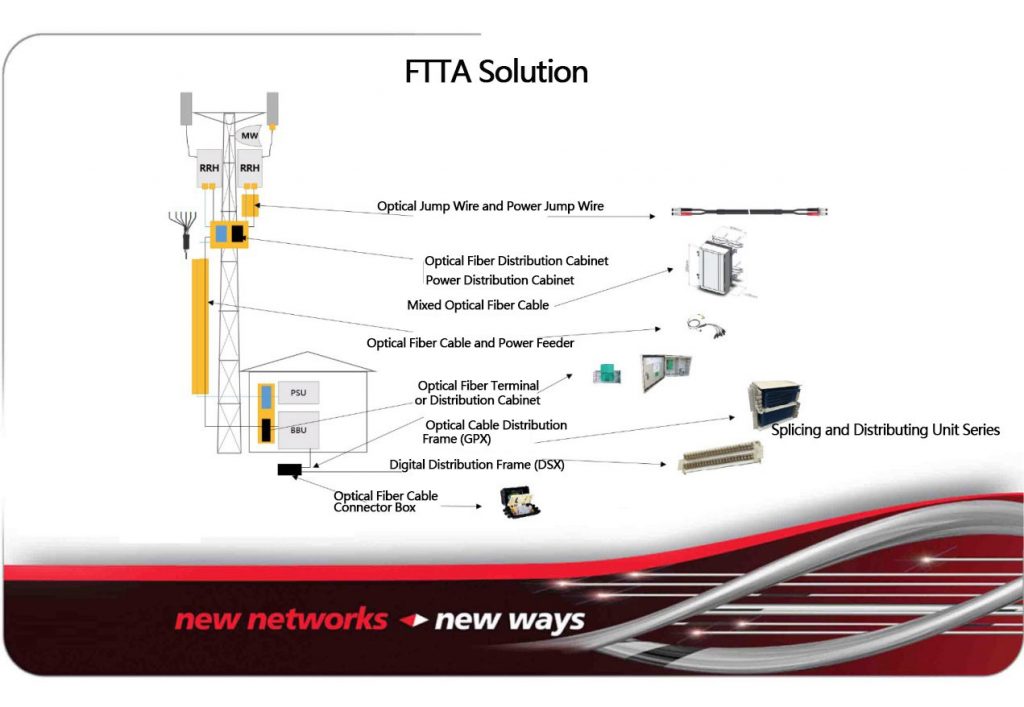

FTTA: Minimizing Tower-Top Complexity

5G small cell deployment (FTTA) requires connectors that can withstand extreme thermal cycling and UV exposure. When deploying aerial fiber backhaul, the choice between ADSS and OPGW depends on the span length and existing power line infrastructure. For spans up to 100m, Telhua recommends All-Dielectric Self-Supporting (ADSS) cable with a dry-core design to prevent water ingress at the splice point, which is a common failure mode in coastal environments.

Conclusion: Engineering for Reliability

Success in 2026 fiber deployments is measured by long-term reliability rather than just initial cost. By adhering to international grounding standards, utilizing bend-insensitive fiber for indoor MDUs, and selecting weather-hardened components for FTTA, operators can significantly reduce maintenance Opex over the 20-year lifespan of the network.
