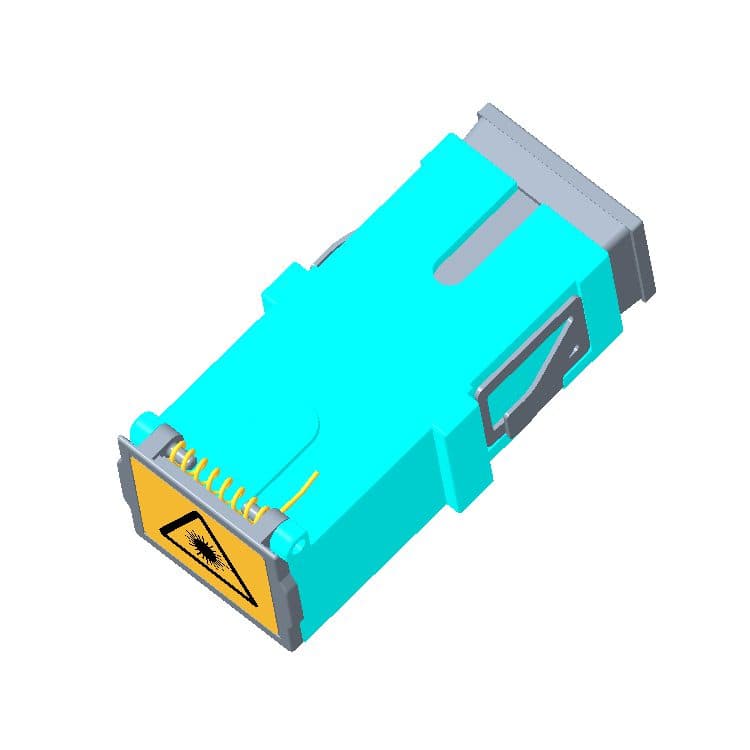

sc adapter with shutter

sc adapter with shutter
sc adapter with shutter
sc adapter with shutter
sc adapter with shutter
sc adapter with shutter
Fiber Optic TELEFONICA SC Adapter/SC Green White Adapter/SC Shutter Adapter

PRODUCT 3D VIEWER

Product Details

As per customer requirement, Telhua supplies sc adapter with shutter,SC optical adapter is of flange type, single mode adapters are with zirconia sleeve . implements connection of SC fiber optic connectors in the fiber optic lines.It only produce a little loss for implementing optical path smooth. Simplex SC/APC fiber optic Adapter Coupler with side shutter makes two end face precision docking, which can make light energy from transmitter optical fiber coupled to receiver optical fiber efficiently and will reduce impact to a minimum because of intervention optical link of system.We can do SM,MM,OM4 SC Adapter ,also Simplex ,duplex adapters .Metal SC adapter and shutter adapter is hot sell in the market .

3. Design Details of sc shutter adapter

3.1 Bom list of green white adapter

BOM LIST OF SC SHUTTER ADAPTER

Laser Label of the sc shutter coupler, quantity: 1, material: paper

Dust cap of the telefonica sc coupler, quantity: 1, material: PBT

Spring of the white green coupler, quantity: 1, material: Stainless 304

main body of the sc adapter with shutter, quantity: 1, material: PBT or PC depends on customer

Black or green dust cap of the sc coupler with shutter, quantity:1, Material: ABS

Sleeve of the outer shutter adapter, quantity: 1, Material: Ceramic

Metal clip of the Shuttered Adapter sc, quantity: 1, Material: Stainless 304

3.2 Detail dimension of the assembled and independent parts of shuttered coupler sc

assembled dimension of shuttered Adapter sc
assembled dimension of shuttered Adapter sc
sleeve dimension of telefonica sc coupler
sleeve dimension of telefonica sc coupler
main body dimension of green white shutter coupler
main body dimension of green white shutter coupler
dust cap drawing of fiber optic sc shutter adapter
dust cap drawing of fiber optic sc shutter adapter

3.3 3D PDF drawing of the fibre optic sc shutter coupler

3.3.1 Dust cap 3d pdf of fiber optic sc shuttered adapter

https://www.telhua.com/dust-cap-3d-pdf-of-fiber-optic-sc-shuttered-adapter/

3.3.2 Main body 3d pdf of fiber optic sc telefonica adapter

https://www.telhua.com/main-body-3d-pdf-of-fiber-optic-sc-telefonica-adapter/

3.3.3 Assembled 3d pdf of sc green white shutter coupler

https://www.telhua.com/assembled-3d-pdf-of-sc-green-white-shutter-coupler/

4. Material Specification of sc apc shutter adapter

4.1 PBT Material specification of sc apc shutter adapter

https://www.telhua.com/pbt-material-specification-of-sc-apc-shutter-adapter/

5. Test report of telefonica fiber optic shuttered adaptor

SGS TEST REPORT OF SC SHUTTER GREEN WHITE COUPLER

Specification

Model: ADT-LCLC-B
Dimension: 29.2×22.1×9.3mm
Insertion Loss: <=0.1dB
Repediately: 5000 times
Color: BLUE
Material: PBT
