Module 4 Preconnected Riser Column Distribution Cable

Module 4 fiber optic preconnected at 50% riser column distribution cable
Module 4 fiber optic preconnected at 50% riser column distribution cable
Module 4 fiber optic preconnected at 50% riser column distribution cable
Module 4 fiber optic preconnected at 50% riser column distribution cable
Module 4 fiber optic preconnected at 50% riser column distribution cable
Module 4 fiber optic preconnected at 50% riser column distribution cable
Module 4 fiber optic preconnected at 50% riser column distribution cable

PRODUCT 3D VIEWER

Product Details

Module 4 fiber optic preconnected at 50% riser column distribution cable are designed for cabling the risers of FTTH networks in buildings. They allow the connection of subscriber links at the level of the floor distribution box. The riser cable made up of  G657A2 fiber modules 50% pre-assembled allows fiber optic cabling for FTTH buildings in accordance with quad-fiber regulations in Very Dense Zones (ZTD). Cables available from 24 to 144 optical fibers.

The preconnected riser cable with 4-fiber G657A2 modules of 100 m pre-assembled at 50% allows fiber optic cabling for FTTH buildings in accordance with quad-fiber regulations in Very Dense Zones (ZTD). Pre-connectorized on the first 2 fibers of each module (yellow and red), the G.657A2 riser cable pre-connected to 50% has a spreading system that allows easy connection to the pooling points at the foot of the building (PMI) without soldering.

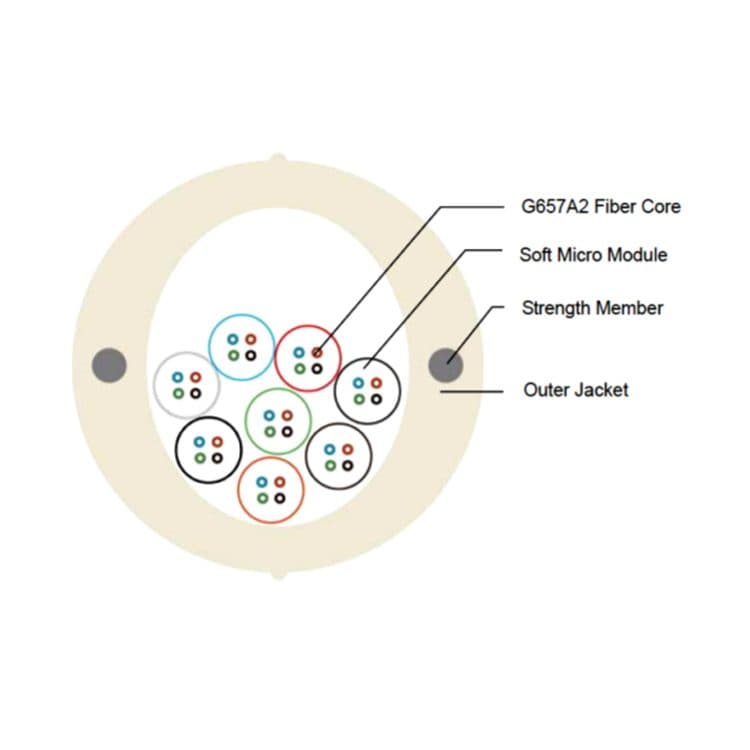

Thanks to the RBT cable opener, the cable in the “Riser” format allows stitching windows to be made for welding in the floor boxes known as interior optical connection points (PBO). The Module 4 fiber optic preconnected at 50% riser column distribution cable range of cables is designed to meet the cabling needs of new FTTH networks in the case of an architecture of multi-operator building cabling (quad-fiber cabling architecture only). This riser cable is used to make the vertical column of a building. The micromodules contain 4 fibers each and are extracted from the cable by windowing. The end of the cable on the sharing point side is pre-connected in the factory on the red and yellow fibers to simplify its connection. The standard cable is Euroclass fire Dca, but Cca cable is also available on request. Pre-connected cables with permanent accessibility in order to make the connections on each floor. Yellow and red fibers equipped with an SC / APC connector and blue and green fibers are left unconnected.

The installation of your risers is carried out in our Cabling Drive manufacturing workshop. We pre-wire your fibers and connectors. Your links can be pre-terminated at 1 or 2 ends. We can also equip them with PMI (PRI) according to your needs.

MAIN FEATURES

Number of Fibers 24 48 72 96 144
Diameter(mm) 8.5 9.5 10.5 11.5 12
Traction (N) 710 710 710 710 710
Crush (N/cm) 30/100 30/100 30/100 30/100 30/100

Specification

Model: OFP-4-B

Diameter: 8.5 to 13.5mm

Module Capcity: can be 4 or 6

Cable length: 100m

Fire Resistance: CPR certified

Fiber: G657A2
