Product Details

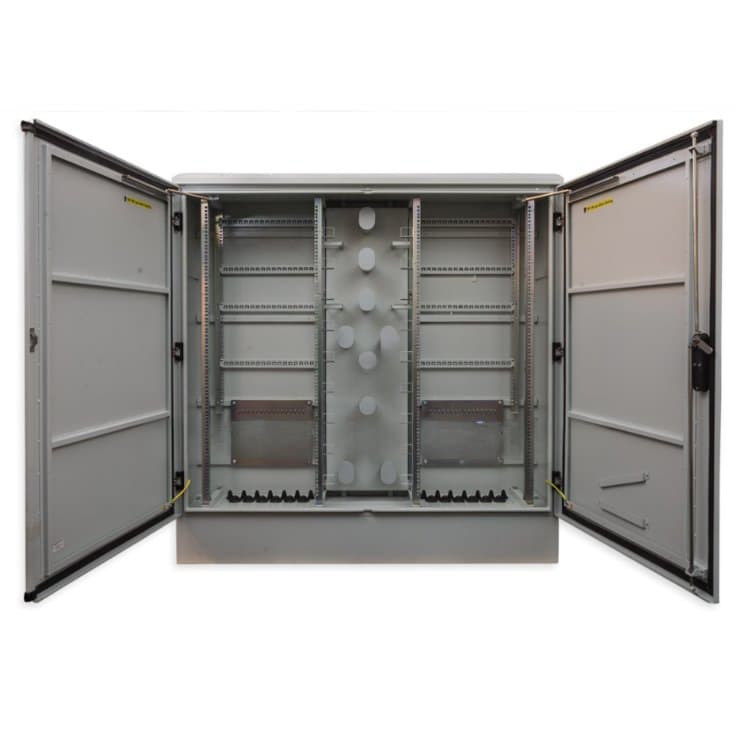

19-INCH 2 X 28U STREET CABINET – 2 DOORS is a 360-slot passive optical street cabinet for FTTH networks.
It constitutes a multi-operator concentration point (PM).

It allows to receive: • Optical drawers and collection drawer in its right part.
• Optical coupler drawers in its left part.

Features :
• 2 usable 19″ 28U bays.
• Overlength reduction system between the two 19″ racks.
• Single 3.5mm jumper lengths.
• Cable entry: 6 x 34 mm and 7 x 20 mm holes for each 19″ bay.
• Fixing system for docking and optical cable bursting modules.
• Materials: Aluminum 2.00 mm thick.
• Structure of the envelope: single skin.
• Dimensions (W x H x D) in mm: 1600 x 1650 x 350 – complete height with its base.
• Painting: Exterior structure covered with polyester paint RAL 7035 (light grey) or RAL 1015 (ivory white), other colors on request.
• Protection: IP55, IK10
Cabinet weight: < 120 kg

Specification

Model: ODC-56U-B
Dimension: 16000*1650*350mm
Capacity: 56U
No. of Doors: 2
Color: White
Material: Aluminum
