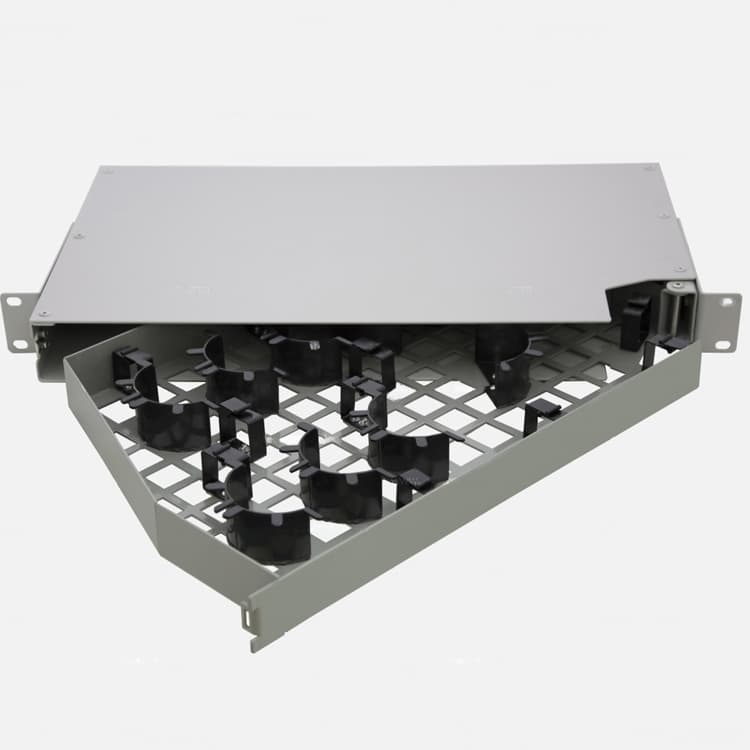

Fiber Optic Patch Panels_ A Comprehensive Guide

In a world fueled by the relentless pace of data and communication, the quiet heroes of the modern age are often the unsung saviors, working tirelessly behind the scenes. Fiber optic patch panels are those unsung heroes, quietly facilitating the exchange of information in the blink of an eye. As we delve into the intricacies of fiber optic patch panels, we unlock the gateway to understanding the backbone of our interconnected world. These unassuming devices play a pivotal role in ensuring our data moves seamlessly from one point to another, whether it’s within the confines of a data center, along the telephone poles outside your home, or even inside your own living room.

As we journey through this guide, we’ll unravel the mysteries of fiber optic patch panels, explore their diverse applications, and uncover the essential considerations for choosing the right one for your unique needs. So, let’s embark on this voyage into the realm of fiber optic patch panels and discover how they keep our world interconnected and data flowing, all while quietly hiding in plain sight.

What Is a Fiber Optic Patch Panel?

In the realm of data transmission and connectivity, a fiber optic patch panel is a silent hero, diligently managing the flow of data within networks. But what exactly is it, and how does it fulfill this crucial role?

At its core, a fiber optic patch panel is a specialized interface panel designed to connect multiple optical fiber cables with optical equipment. These unassuming devices act as intermediaries, orchestrating the exchange of data without drawing much attention to themselves. They are the unsung champions that ensure our interconnected world functions seamlessly.

Physical Characteristics and Construction

A fiber optic patch panel, despite its unassuming exterior, boasts a well-thought-out construction. Here’s what you’ll find inside:

  1. Adapter Panels: These panels are at the heart of the patch panel, providing the interface for connecting optical fibers. They ensure that data can flow smoothly between various devices and cables.
  2. Fiber Splicing Trays: Neatly nestled within the enclosure, splicing trays play a crucial role in fusing fiber optic pigtails. This fusion ensures the reliability of data connections, preventing disruptions.
  3. Space for Excess Fiber Storage: Patch panels are designed to accommodate not just the active connections but also any excess fiber. This thoughtful design maintains a clean and organized environment for data transmission.

Different Configurations

Fiber optic patch panels come in diverse configurations to adapt to the unique needs of different installations. Here are two common configurations:

  1. Rack-Mounted: Rack-mounted patch panels are specifically designed for easy installation in standard 19″, 21″, or 23″ rack systems. They are commonly found in data centers and network installations, providing a neatly organized and efficient way to manage data connections.
  1. Wall-Mounted: In scenarios where rack space is limited, wall-mounted patch panels come to the rescue. They can be securely mounted on walls, allowing for space optimization without compromising data connectivity.
TS-ODF Slidable Rack-mount Fiber Optic Distribution Frame
TS-ODF Slidable Rack-mount Fiber Optic Distribution Frame

These various configurations make fiber optic patch panels versatile, ensuring they can seamlessly integrate into different environments and meet specific connectivity needs.

Benefits of Using a Fiber Patch Panel

The utilization of fiber optic patch panels isn’t just a matter of convenience; it’s an essential component of efficient data networks. Let’s shed light on the array of advantages that come with integrating these unassuming heroes into your network infrastructure.

  1. Easy Termination: Connecting optical fibers can be a delicate process, but with fiber optic patch panels, it becomes remarkably straightforward. These panels provide a reliable platform for terminating fiber optic cables. Termination here means attaching connectors to the fiber strands, ensuring a secure and efficient data transfer. This easy termination process not only simplifies installation but also guarantees precise and dependable connections.
  1. Organization: In the world of data and networking, organization is key. Fiber optic patch panels act as the ultimate organizers, serving as centralized hubs for all your optical connections. Instead of dealing with a chaotic web of cables and connectors, everything is neatly arranged within the patch panel. This organization not only makes maintenance and troubleshooting more accessible but also enhances the overall efficiency of your network.
  1. Flexibility: Change is a constant in the world of networking. New devices are added, configurations are adjusted, and connections are modified. Fiber optic patch panels offer an elegant solution to this ever-evolving landscape. All changes, whether it’s connecting different devices or reconfiguring your network, can be seamlessly made at the patch panel. This flexibility ensures your network remains adaptable to your evolving needs, without the need to access complex and delicate networking equipment directly.
  1. Protection: The heart of your data network lies in the connections between optical fibers. These connections are points of vulnerability, susceptible to wear and tear. However, with fiber optic patch panels in place, these vulnerabilities are significantly reduced. By routing connections through the ports in the patch panel, the wear and tear is absorbed by the panel, preserving the integrity of your optical equipment. This protection not only ensures longevity but also reduces the operational costs associated with maintenance and repairs.

Incorporating fiber optic patch panels into your network infrastructure is more than just a smart choice; it’s a pivotal step towards achieving a seamlessly connected and efficient data network. The ease of termination, the impeccable organization, the adaptability, and the protective shield they provide make them an indispensable asset in the realm of data transmission and connectivity. As we continue our exploration, we’ll uncover additional considerations and specifications that will help you choose the right patch panel for your unique requirements.

Common Patch Panel Specifications

Selecting the right fiber optic patch panel is not just a matter of preference; it’s a critical decision that impacts the efficiency and effectiveness of your network. Let’s explore the essential specifications you need to consider when making this choice.

  1. Indoor or Outdoor Use: First and foremost, determine the environment in which your patch panel will operate. Some patch panels are designed exclusively for indoor use, while others are ruggedized for outdoor applications. It’s crucial to match the patch panel’s environmental specifications with the conditions it will face to ensure long-lasting performance.
  1. Rack-Mountable or Wall-Mountable: Consider your available space and installation preferences. Rack-mounted patch panels are ideal for data centers and network closets, as they can be seamlessly integrated into standard 19″, 21″, or 23″ rack systems. Wall-mounted patch panels, on the other hand, are a space-saving solution suitable for environments with limited rack space.
  1. Access Options: Patch panels may provide different access options. Some offer front access only, while others provide both front and rear access. The choice depends on your specific needs and space constraints. Panels with rear access can be particularly useful in situations where easy access to the rear connections is required.
  1. Patching and Splicing Capabilities: Consider whether your network requires direct patching or splicing capabilities. Some patch panels are designed for direct patching only, making them suitable for straightforward connections. Others are equipped for splicing and patching, allowing for more complex fiber management, including fusion splicing.
  1. Configuration Choices: Patch panels come in various configurations, each tailored to different requirements:
  • Unloaded Panels: These panels are essentially blank canvases, allowing you to customize them by adding the adapters and connectors you need.
  • Loaded with Adapters: Panels pre-loaded with adapters simplify installation, as they come ready for use.
  • Loaded with Adapters and Pigtails: In some cases, patch panels are supplied with not only adapters but also pigtails, offering a more comprehensive solution.
  1. Design Options: Patch panels can be designed in different ways to meet various installation needs:
  • Fixed Panels: These panels are static and do not move.
  • Sliding Panels: Sliding panels can be pulled out for easier access.
  • Pivoting Panels: Panels that can pivot, providing flexible access to connections.


  1. Fiber Type: Consider the type of fiber your network utilizes. Patch panels need to match the specific fiber type, which can include single fiber, standard ribbon, or SpiderWeb Ribbon® (SWR) cable. Choosing the right fiber type ensures compatibility and efficient data transmission.


  1. Fiber Count: Determine the number of fibers your patch panel needs to accommodate. The fiber count can vary significantly, from a few fibers to hundreds, depending on your network’s scale and requirements.


  1. Adapter Types: Different patch panels support various adapter types, each corresponding to different optical connectors. Choose patch panels that align with the specific adapters required for your network.
24 port fiber patch panel
24 port fiber patch panel

By carefully considering these common patch panel specifications, you can make an informed decision when selecting the right patch panel for your network. Each specification plays a crucial role in ensuring seamless connectivity, adaptability, and longevity in your data transmission infrastructure.

How to Install and Maintain Fiber Patch Panels

In this section, we will provide comprehensive guidance on the installation and maintenance of fiber optic patch panels, including proper installation techniques, cable management strategies, routine maintenance procedures, and troubleshooting common issues. Ensuring the correct setup and ongoing care of your patch panels is essential for network reliability.

Proper Installation Techniques:

Properly installing a fiber optic patch panel is the foundation of a robust network infrastructure. Here’s a step-by-step guide to ensure it’s done correctly:


  1. Selecting the Appropriate Installation Location: Before you begin installing a fiber optic patch panel, consider factors such as accessibility, environmental conditions, and proximity to optical equipment. Choose a location that minimizes physical damage and exposure to dust or moisture.


  1. Securing the Patch Panel in Place: Depending on whether the patch panel is designed for rack or wall mounting, follow the manufacturer’s instructions to securely fasten it. Proper mounting ensures stability and prevents potential damage to connections.


  1. Installing Adapter Panels and Splicing Trays: Adapter panels and splicing trays are pivotal for patch panel functionality. Ensure a successful installation by:


  • Attaching adapter panels to the patch panel frame.
  • Neatly embedding splicing trays within the enclosure.
  • Verifying the secure placement of all components.


  1. Safely Connecting Fiber Cables: Handle fiber cables with care to prevent damage to the delicate fibers. Follow these steps:


  • Inspect fiber connectors for dirt or debris; clean if necessary.
  • Carefully plug connectors into appropriate adapter ports, ensuring proper alignment.
  • Use strain relief techniques to prevent cable tension.


  1. Ensuring Cable Organization and Strain Relief: Effective cable organization is crucial for maintaining a clean and efficient patch panel setup. Consider the following:


  • Utilize cable management accessories, such as cable ties, racks, and trays.
  • Label and color-code cables for easy identification.
  • Implement bend radius protection to prevent cable damage.
  • Minimize cable clutter and prevent tangling with cable management tools.

Cable Management Tips

Effective cable management is key to maintaining an organized and efficient network infrastructure. Here are some valuable tips:


  1. Using Cable Management Accessories: Cable ties, cable raceways, and cable management panels are essential tools for securing and organizing cables. They help prevent tangling and simplify future maintenance.


  1. Labeling and Color-Coding Cables: To facilitate quick and accurate cable identification, label and color-code cables. This is particularly useful for fiber optic connectors, as it helps avoid mistakes during connection and troubleshooting.


  1. Implementing Bend Radius Protection: Fiber optic cables are sensitive to bending. Proper bend radius protection ensures that cables do not bend too tightly, which can cause signal loss or damage. Utilize cable management solutions that support the recommended bend radius for your specific cables.


  1. Minimizing Cable Clutter and Preventing Tangling: Tangled cables not only look messy but can also lead to connectivity issues. Regularly check and adjust cables to minimize clutter and prevent tangling. Implement cable management practices to keep the patch panel area neat and organized.
  2. Digitus DN-97602 Cable Panel - Black - Cable Management Panel - 1U Height - 19 Width
    Digitus DN-97602 Cable Panel – Black – Cable Management Panel – 1U Height – 19 Width

Regular Maintenance Procedures

Regular maintenance is essential for keeping your fiber optic patch panels in optimal condition. Follow these procedures:


  1. Inspecting Fiber Connectors for Dirt or Damage: Regularly inspect fiber connectors for any dirt or debris. Even minor contamination can lead to signal loss. Clean connectors using appropriate tools and cleaning solutions.


  1. Cleaning and Maintaining Fiber Connections: Cleaning fiber connections is a delicate process. Use lint-free wipes, fiber optic cleaning solutions, and cleaning tools designed for fiber optics. Regular cleaning ensures reliable data transmission and prevents signal degradation.


  1. Verifying Cable Integrity and Signal Quality: Periodically verify cable integrity by checking for visible damage or wear. Additionally, conduct signal quality tests to ensure that data transmission remains at the desired level. Use specialized equipment and testing procedures for this purpose.


  1. Replacing Damaged Components or Cables as Needed: If you discover damaged components or cables during maintenance, replace them promptly. Neglecting damaged components can lead to network disruptions and compromised performance.

Troubleshooting Common Issues

When network issues arise, it’s crucial to know how to diagnose and resolve them effectively. Here are steps to troubleshoot common problems:


  1. Diagnosing Connectivity Issues: The first step in troubleshooting is identifying the root cause of connectivity problems. Perform systematic checks, including cable inspections, connector cleanliness, and signal testing to pinpoint the issue.


  1. Addressing Signal Loss or Attenuation: Signal loss, or attenuation, can occur due to various factors. Troubleshooting signal loss involves verifying cable integrity, connector quality, and signal strength. Adjustments or replacements may be necessary to address signal loss.


  1. Dealing with Fiber Cable Damage: Fiber cable damage can disrupt network connections. If you identify damaged cables, take immediate action to replace or repair them to restore proper functionality.


  1. Troubleshooting Port-Specific Problems: When specific ports on the patch panel exhibit issues, isolate the problem to the affected port. Check for loose connections, damaged adapters, or issues with splicing trays. Troubleshoot and address these problems individually.


By following these guidelines for the installation and maintenance of fiber optic patch panels and knowing how to troubleshoot common issues, you can ensure the reliability and efficiency of your network infrastructure. Regular maintenance and careful cable management are key to sustaining optimal performance.


In conclusion, fiber optic patch panels serve as the unsung heroes of network infrastructure. Their significance lies in their ability to provide a centralized, organized, and flexible solution for managing fiber optic connections. From enabling easy termination of fiber optic cables to safeguarding against wear and tear on networking equipment, these panels play a pivotal role in maintaining network reliability and performance.


As you’ve learned throughout this guide, the proper selection, installation, and maintenance of fiber optic patch panels are essential to ensure the seamless flow of data within your network. Whether you’re setting up a new network or optimizing an existing one, understanding the importance of these panels is paramount.


To harness the full potential of fiber optic technology and ensure your network operates at its best, it’s crucial to explore the available options and choose the patch panels that best align with your specific needs and infrastructure requirements.


We hope this comprehensive guide has provided you with valuable insights into fiber optic patch panels and how to make the most of their capabilities. If you’re ready to take the next steps in improving your network infrastructure or have any questions, we encourage you to seek further information or assistance.


Feel free to reach out to experts in the field, consult with professionals, or explore the diverse range of fiber optic patch panels and related products available on the market. Your network’s efficiency and performance are in your hands, and with the right knowledge and resources, you can achieve your desired connectivity goals.
